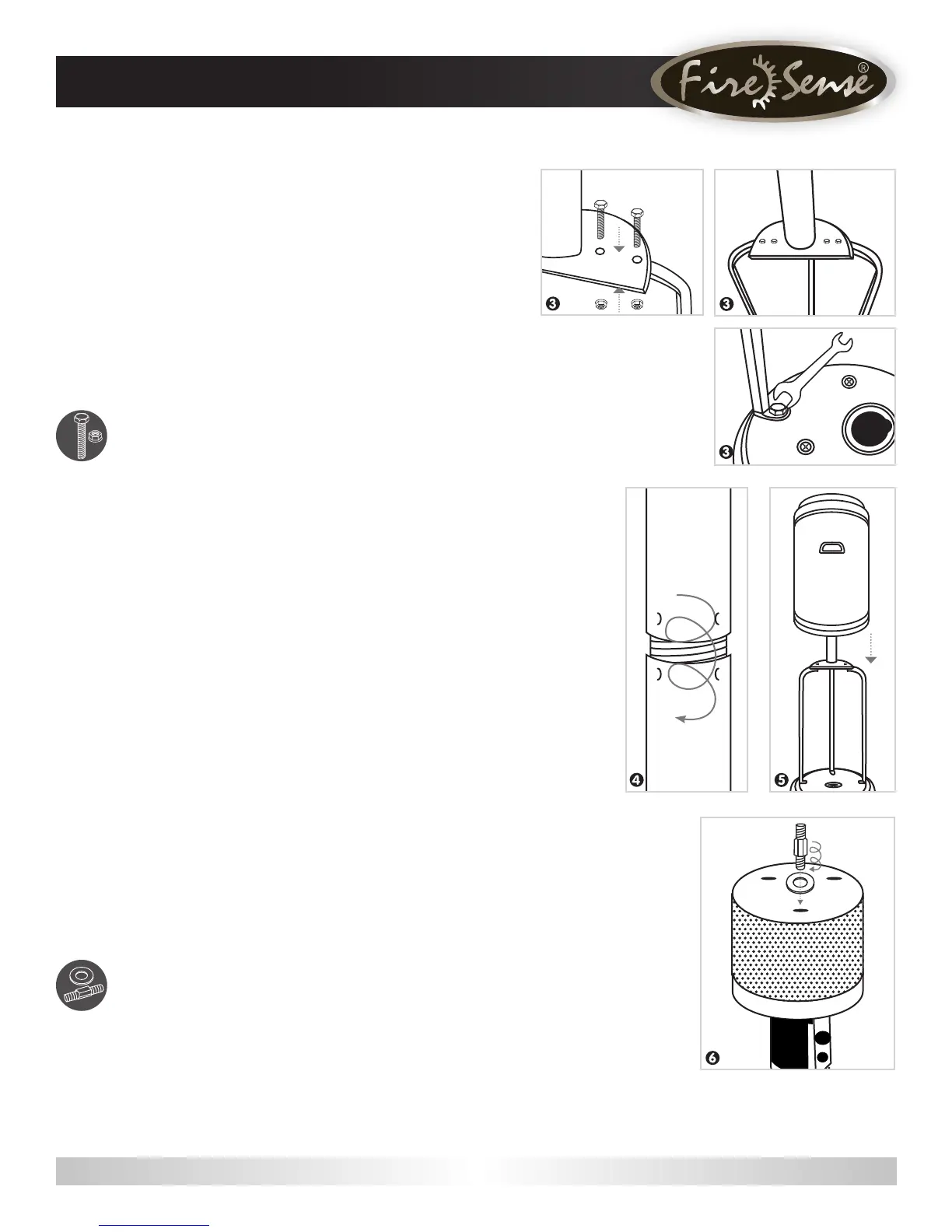

ASSEMBLY
3
Attach the Lower Post
G
to the Post Supports
I
. Once
you have tightened the bolts holding the Post Supports
I
to the Base
J
, align the holes in the Lower Post
G
with the
holes on the tops of the Post Supports and insert a Large
Bolt
M
through the hole in the Post Support. Secure with
a Small Flange Nut
S
. Repeat this in the 5 remaining holes
(6 holes total—2 for each Post Support piece). Hand tighten
initially then tighten with the Wrench
X
when all bolts have
been inserted.
Hardware Used: 6x Large Bolt
M
6x Small Flange Nut
S
4
Attach Upper Post
F
to Lower Post
G
by screwing the
two pieces of the post together.
Note: Bolts not needed to hold the posts in place.
5
Slide Tank Housing
D
over the assembled Upper/Lower
Posts
F
/
G
and down over the Post Supports
I
. Rest the
Tank Housing on the Base
J
.
6
Attach to the top of the Head
Assembly
C
. Insert 1 through 1 Large Flat
Washer and into the hole on the top of the Head Assembly
C
.
Tighten stud securely. Repeat with the other 2 .
Hardware Used: 3x Reector Stud
W
3x Large Flat Washer
R
