FIREtec FTEP SERIES - Page 8

8
+Z1- +Z2- +Z3- +Z4- +Z5- +Z6- +Z7- +Z8-
Gnd
AL1 WIRED AS AL2

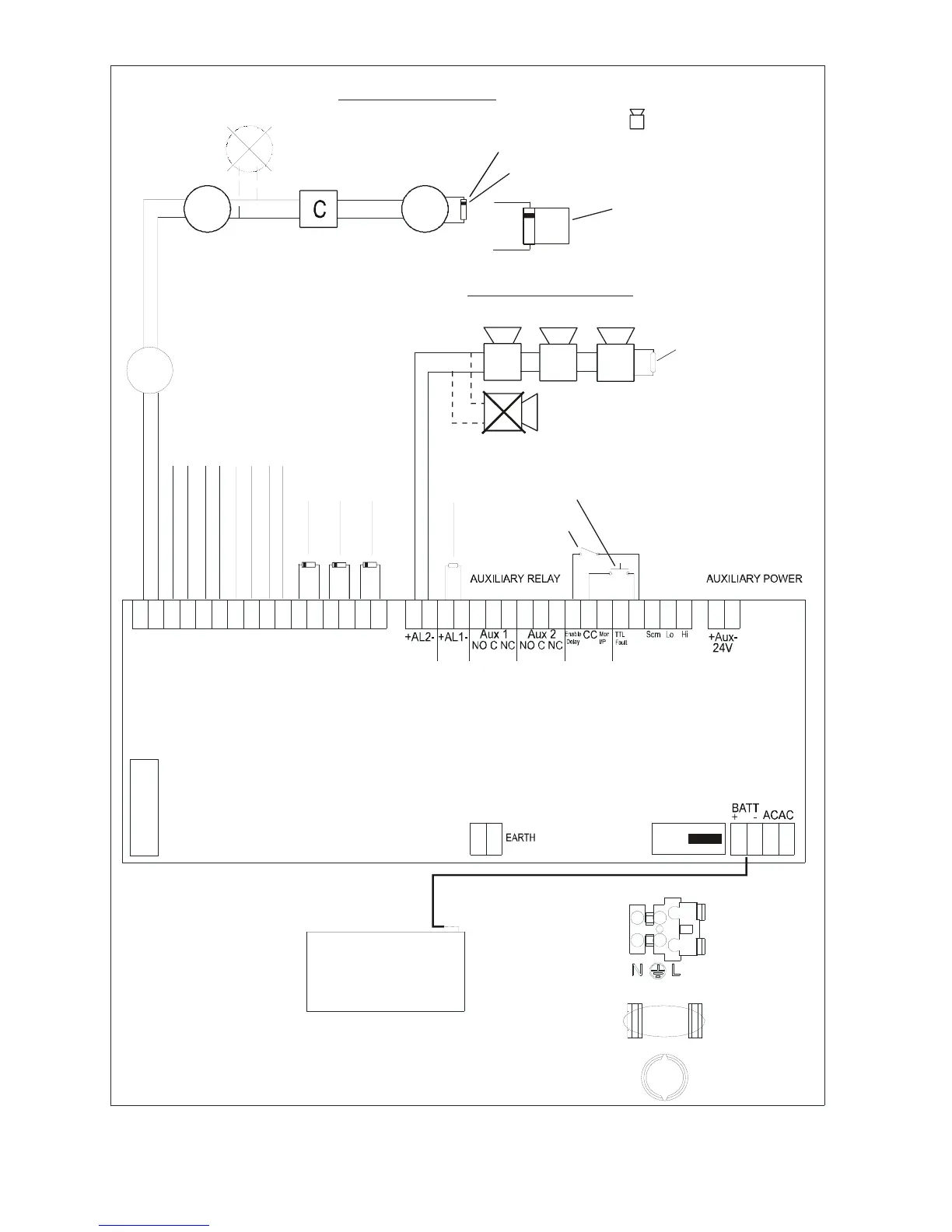

TYPICAL ALARM WIRING
NO SPURS ALLOWED
NO SPURS ALLOWED
TYPICAL ZONE WIRING
ZN2 - ZN5 WIRED
AS ABOVE
BATTERY
1A (T)
MAINS SUPPLY
20*5 FUSE
CABLE ENTRY VIA KNOCKOUT
SECURE CABLE WITH
CABLE TIE HERE
CONTACTS OUTPUT
END OF LINE RESISTOR -
10K Tolerance
1/4w 5%
ON LAST SOUNDER
EOL COMPONENT
(DIODE)
EOL COMPONENT
(RESISTOR)
IN UNUSED ZONES
IN UNUSED
ALARM
CLASS CHANGE
SWITCH
ENABLE ALARM
DELAY SWITCH
F8
6.3A(T)
F7
NOTE,
Red Battery Lead to BATT +
Black Battery Lead to BATT -
END OF LINE COMPONENT - DIODE
ON LAST DETECTOR
NOTE,
CATHODE (bar) TO ZONE +VE END
(CATHODE (bar) TO
ZONE +VE END)
Zn+ TO ZONE +VE END
Zn- TO ZONE -VE END
If EoL contains Label
Z
n
+
Z
n
-
D
D
D
D
C - Manual CallPoint
D - Smoke/Heat Detector
- Sounder or Beacon
Figure 3.
