4

HOLE FOR
3/4”
SIGHTING
PIPE
SCREW,
1/4”-20 THD
2” (51) CLEARANCE REQUIRED TO REMOVE
2”
(51)
1/2”-14
STRAIGHT PIPE THD
8 1/4”
(210)
45
O
3/8”-18 NPT FOR
PURGE AIR CONNECTION
4” (102)
1 11/16”
HEX
(43)
1”-11 1/2 NPT
FOR SIGHT
TUBE
UV2 UV SCANNER
UV SELF-CHECK
SCANNER
TYPE 45UV5
MODEL 1009
UV1A UV SCANNER
72” LEAD
2 7/8”
(73)
2”
(50.8)
1 5/8”
(41)
3 1/4”
(82)
UV SCANNER
Type: 45UV3
Model: 1050
2 3/8”
(60.3)
1 3/16”
(30)
1/2”
(12.7)
”L”
1/2”-14 NPT
13/16” HEX
(20.6)
15/16” HEX
(23.8)
”L” LENGTH AS SPECIFIED: 12”, 18”, 24” (304.8, 457.2, 609.6)
69ND1 FLAME ROD
2 1/2”
(63.5)
5.04”:(128)
WHEN ASSEMBLED
1 1/4”
DIA.
1.063”
DIA.
HEAT INSULATOR
.345” (8.7)
TC-ER CABLE
1/2”-14
TAPERED
PIPE THD
1/2”-14
STRAIGHT PIPE THD
48PT2-1000 SERIES INFRARED SCANNER
2 1/2”
(63.5)
3.96” (100.6)
WHEN ASSEMBLED
1 1/4”
DIA.
1.02” DIA.
(26.0)
HEAT INSULATOR
.345” DIA. (8.7) TC-ER CABLE
1/2”-14
TAPERED
PIPE THD
2.13”
(54.0)
1.46”
(37.1)
13/32” (10)
48PT2-9000 SERIES INFRARED SCANNER
UV90 SCANNER
5 3/16”
5 3/16”
MOUNTING BASE
5 5/16”
4”
4”
1/2”’
1/2”
3/16” DIA. MOUNTING
HOLES (4)
KNOCKOUTS (12)
FOR 1/2”
CONDUIT
μΜ

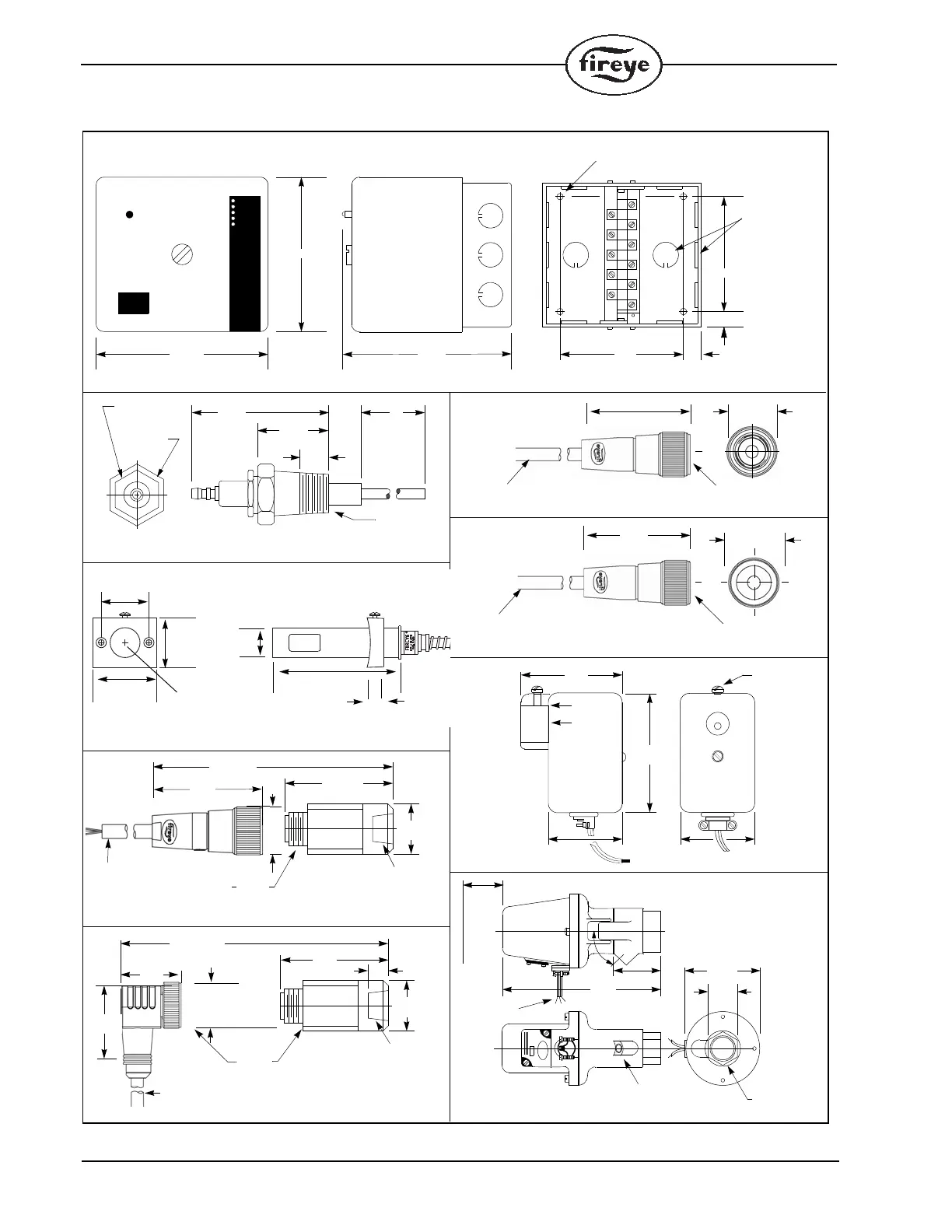

All dimensions in inches (millimeters in parentheses).
S1
7
S2
8
3
2/N
5
A
4
1
6
3/16” MOUNTING
HOLES
(4)
0.880"
(22.3MM)
1.90
(48.2MM)
1.406"
(35.7MM)
1.48"
(37.6MM)
0.875"
(37.6MM)
3.75"
(95.7MM)
0.5"
(12.7MM)
UV90 MOUNTING BLOCK
(Included with Scanner)
2.58”
(50.8)
36” (1m APPROX.)
TC-ER CABLE
3/8” PIPE THREAD
1.06” DIA.
(27.0)
2.53”
(64.3)
1/2-14 STRAIGHT
FEMALE PIPE THREAD
1.06” DIA
(27.0)
36” TC-ER CABLE (UV-1A-3)
72” TC-ER CABLE (UV-1A-6)
2.5”
(63.6)
