1

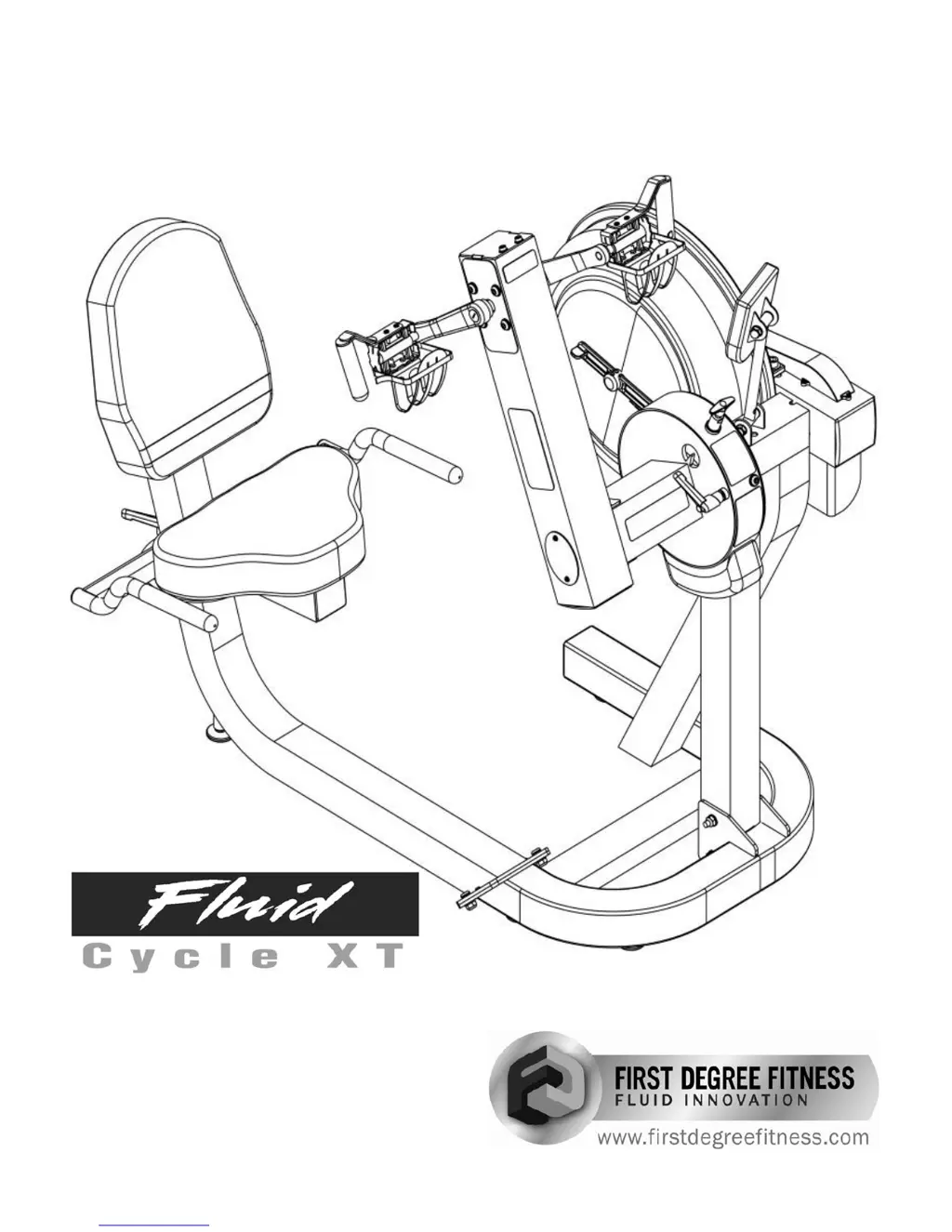

Owners Manual
E720

Questions and Answers

  • J
    jonathanrobersonJul 30, 2025
    What to do if First Degree Fitness Equipment pedal is loose?
    • S
      Shari McclainJul 30, 2025
      If the pedal (either left or right) is loose and cannot be retightened, it is likely that the aluminum crank arm threads are stripped. Contact the service center for a replacement and check weekly as recommended.
  • M
    Michelle CannonAug 3, 2025
    Why is my First Degree Fitness Equipment computer screen not registering rowing?
    • C
      Charles HullAug 3, 2025
      If the computer screen illuminates but doesn't register when rowing, it could be due to a loose or failed connection, or the sensor gap might be too wide. First, check that the computer lead is properly connected. If it is, check the sensor gap. If the problem persists, contact your local service center.
  • K
    kimberlyleonardAug 8, 2025
    How to fix knocking noise from First Degree Fitness Equipment control arm?
    • M
      Michelle StevensonAug 8, 2025
      A knocking noise from inside the control arm while training, especially when changing directions, indicates that the chain requires tightening or adjustment. To resolve this: * Open the inspection plate located on the front of the control arm. * Check the chain tension using a screwdriver or another tool. * Use the chain tensioning bolts at the rear of the control arm to tighten or adjust the chain as needed. The chain should have approximately 3mm of slack when properly adjusted.
  • B
    Billy TorresAug 12, 2025
    What to do if First Degree Fitness Equipment pedals slip?
    • R
      Rebecca VaughnAug 12, 2025
      If the pedals slip during hard training, the PK tank belt likely requires tightening. Here’s how to address it: 1. Remove the large inspection plate next to the tank. 2. Insert a long tool to push the rear end cap out from the inside, exposing the tank belt tensioning bolt. 3. Loosen the tank bolts slightly. 4. Remove the upper rubber belt cover to expose the PK belt. 5. Tighten the tank tensioning bolt until the belt is too tight to be twisted from side to side more than 45 degrees by hand.
  • S
    Samantha GeorgeAug 17, 2025
    Why does First Degree Fitness Equipment water change color?
    • S
      Steven GriffinAug 17, 2025
      If the water changes color or becomes cloudy, it's likely because the rower is in direct sunlight or hasn't had water treatment. To fix this, change the rower's location to reduce direct exposure to sunlight. Also, add water treatment or change the tank water as directed in the water treatment section of this manual.
  • R
    Rodney TuckerAug 20, 2025
    Why E720 computer does not illuminate on First Degree Fitness Equipment?
    • S
      Samuel LarsonAug 20, 2025
      If the E720 computer does not illuminate after battery installation, the batteries may be installed incorrectly or need replacing. Reinstall the batteries in the correct position and try again. If the LCD screen still fails to illuminate, try rotating the batteries slightly in the computer. If the problem persists, contact your local service center.
  • J
    Joann LeonardAug 25, 2025
    Why is the E720 computer display erratic on First Degree Fitness Equipment?
    • J
      James EvansAug 25, 2025
      If the E720 computer display is erratic or slow while displaying RPM and WATTS, the gap between the sensor and magnetic ring may be too wide. Remove the inspection plate and check the sensor gap, ensuring that the magnetic ring is not wobbly.

Summary

Box Contents

E720 Assembly Instructions

Tank Filling and Water Treatment

Long Term Water Treatment and Operation

Long Term Water Treatment

Details on maintaining water quality and treatment schedules for the machine.

Resistance Level Adjustment

Explanation of resistance levels from 1-20 and how to adjust them.

The E720 Control Arm

Maintenance Chart

Troubleshooting Guide

E720 Ergometer Computer

USB Interface Functionality

Instructions for connecting and using the USB interface for enhanced exercise experience.

Tank Belt Adjustment

Exploded Parts Diagrams

International Warranty

First Degree Fitness Fluid Cycle XT E720 Specifications
