INSTALLATION
MOTOR RECOMMENDATIONS
USE A 1/2 H.P. 1725 R.P.M. MOTOR. THE VARIABLE PULLEY ON THE SEWING
HEAD PERMITS SPEED ADJUSTMENT. SEWING HEAD PULLEY MUST ROTATE CLOCKWISE
INITIAL LUBRICATION
THE SEWING HEAD IS SHIPPED FROM THE FACTORY OIL FILLED. AT THE BEGIN
NING OF EACH DAY OR SHIFT, MAKE SURE THE OIL LEVEL WINDOW AT THE LOWER
PORTION OF THE SEWING HEAD SHOWS OIL AT THE "OIL LEVEL" LINE. AFTER
ABOUT 30 SECONDS, THE OIL PRESSURE GAUGE SHOULD READ IN THE NORMAL
3-9 POUND RANGE. WHILE THE MACHINE IS RUNNING, THE OIL LEVEL WINDOW
WILL SHOW LITTLE OR NO OIL. NEVER RUN MACHINE IF OIL PRESSURE GAUGE
IS IN THE RED WARNING AREA.
MAINTENANCE
OIL
USE SPECIAL LUBRICATION OIL FOR THE SERIES 10,000 SEWING HEAD AVAILABLE
FROM THE DAVE FISCHBEIN COMPANY OR ITS AUTHORIZED REPRESENTATIVES. AS
A SUBSTITUTE, ANY GOOD GRADE OF SAE 20 MOTOR OIL OR ITS EQUIVALENT MAY
BE USED. EIGHT OUNCES OF OIL WILL ADEQUATELY FILL THE MACHINE.
WHEN ADDING OR CHANGING OIL, REMOVE BREATHER PLUG AND POUR OIL INTO
BREATHER PLUG HOLE. FILL UNTIL OIL REACHES "OIL LEVEL" LINE ON THE
OIL WINDOW. NEVER RUN MACHINE IF OIL PRESSURE GAUGE IS IN THE RED
WARNING AREA. SEE DRAWING 1.
OILINTAKETUBE
OIL INTAKE
FILTER
MAGNETIC BRAIN PLUG
OIL LEVa WINDOW

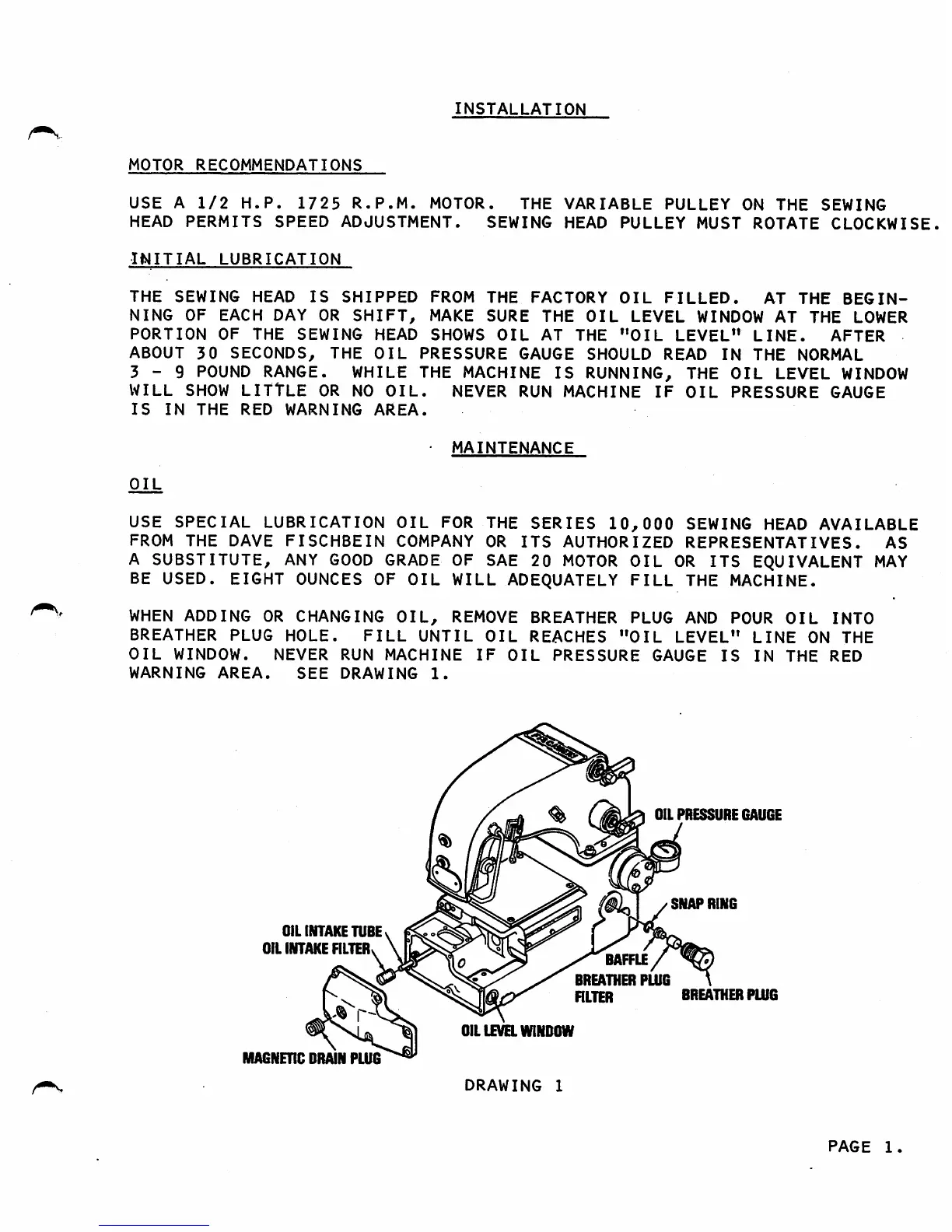

DRAWING 1
BAFFLE
BREATHER PLUG
RLTER BREATHER PLUG
OILPRESSURE GAUGE
SNAP RING
PAGE 1
