4150K and 4160K Series
27

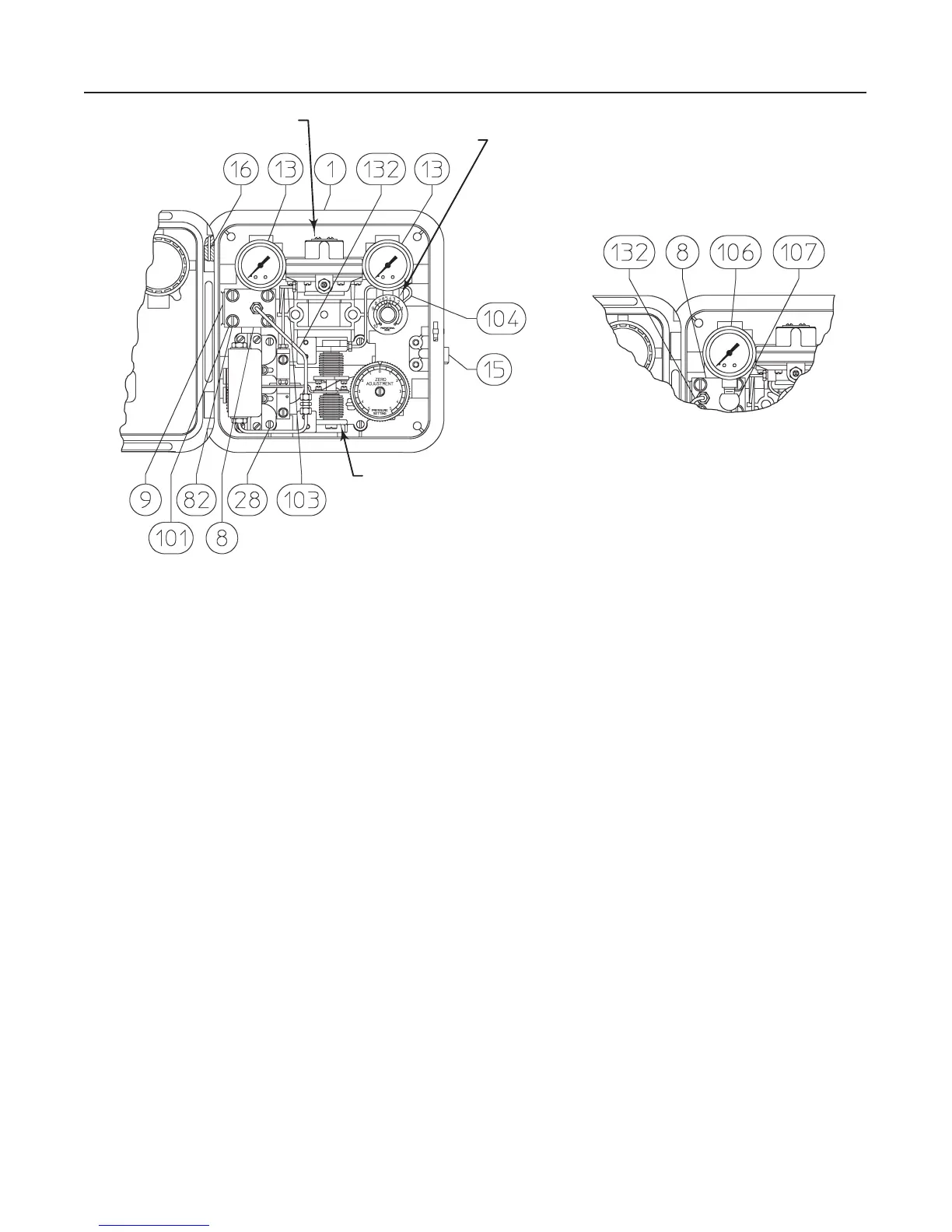

Figure 19. Typical Direct-Acting 4150K Series Assembly
RELAY ASSEMBLY
SPAN ADJUSTMENT
ASSEMBLY
SUBASSEMBLY
(KEY NOS. SHOWN
IN FIGURE 21 OR 22)
NOTE:
KEYS 10, 81, 105 AND 108
ARE NOT SHOWN
48B6004-B / DOC
48B6005-A
B2651-1 / IL
Key Description Part Number
8 Control Pressure Block
For gauge pressure instruments, sst
w/o process pressure gauge 16A0979 X012
w/process pressure gauge 1J2510 35072
For differential pressure instruments, sst 1H6730 35072
9* O-Ring, nitrile, for all series 1C3762 06992
10* Gasket, neoprene, for all series 1C3286 03012
11* Sealing Washer (not shown) Use w/2 psi (0.14 bar)
pressure-tested case & cover (2 req’d) 1J1869 99012
Note
Key 13 is used as both a supply gauge and an
output gauge on units without a process pres-
sure gauge. A quantity of 2 is required for these
units. On units with a process pressure gauge
(key 106), key 13 is used for the output gauge. A
quantity of 1 is required for these units.
Use key 14 for supply pressure indication when
a process pressure gauge is installed. Key 14
installs on the supply pressure regulator.
13* Supply & Output Pressure Gauge, w/o process
pressure gauge (1/8-inch connecting stem),
ABS plastic, black enamel/polycarbonate/nitrile (2 req’d)
Dual scale
0–30 psig & 0–2.0 kg/cm
2
11B8577 X042
0–60 psig & 0–4.0 kg/cm
2
11B8577 X052
Triple scale
0–30 psig, 0–0.2 MPa, & 0–2.0 bar 11B8577 X012
0–60 psig, 0–0.4 MPa, & 0–4.0 bar 11B8577 X022
Key Description Part Number
13* Output Pressure Gauge, w/process pressure
gauge (1/8-inch connecting stem) (1 req’d)
Triple scale
0–30 psig, 0–0.2 MPa, & 0–2.0 bar 11B8577 X012
0–60 psig, 0–0.4 MPa, & 0–4.0 bar 11B8577 X022
14* Supply Pressure Gauge, w/process pressure
gauge (1/4-inch connecting stem), ABS plastic, black
enamel/polycarbonate/nitrile
Triple scale
0–30 psig, 0–0.2 MPa, & 0–2.0 bar 11B8579 X022
0–60 psig, 0–0.4 MPa, & 0–4.0 bar 11B8579 X032
15 Vent Ass’y 27A5516 X012
16 Roll Pin, sst (2 req’d) 1H2888 28992
22 Plate, Instruction, aluminum 12B6338 X0A2
28 Machine Screw, steel pl (4 req’d) 1E9854 28982
30 Mounting Base, aluminum 26A7668 X012
31 Flexure Strip, sst 1C8978 36012
32 Flexure Strip Washer, steel pl (2 req’d) 16A7671 X012
33 Machine Screw, steel pl (4 req’d) 14B4995 X012
34 Pressure Set Arm, steel pl 36A7669 X012
35 Rotary Spring, sst 1J4234 37022
36 Knob, Ryton 36A7670 X012
37 Knob Spring, steel pl 1C2215 27022
38 Dial, aluminum
For Bourdon tube controllers
0–30 psig 16A7662 X012
0–60 psig 16A7662 X022
0–100 psig 16A7662 X032
0–150 psig 16A7662 X412
0–200 psig 16A7662 X042
0–300 psig 16A7662 X052
*Recommended spare parts
