4150K and 4160K Series
28
  

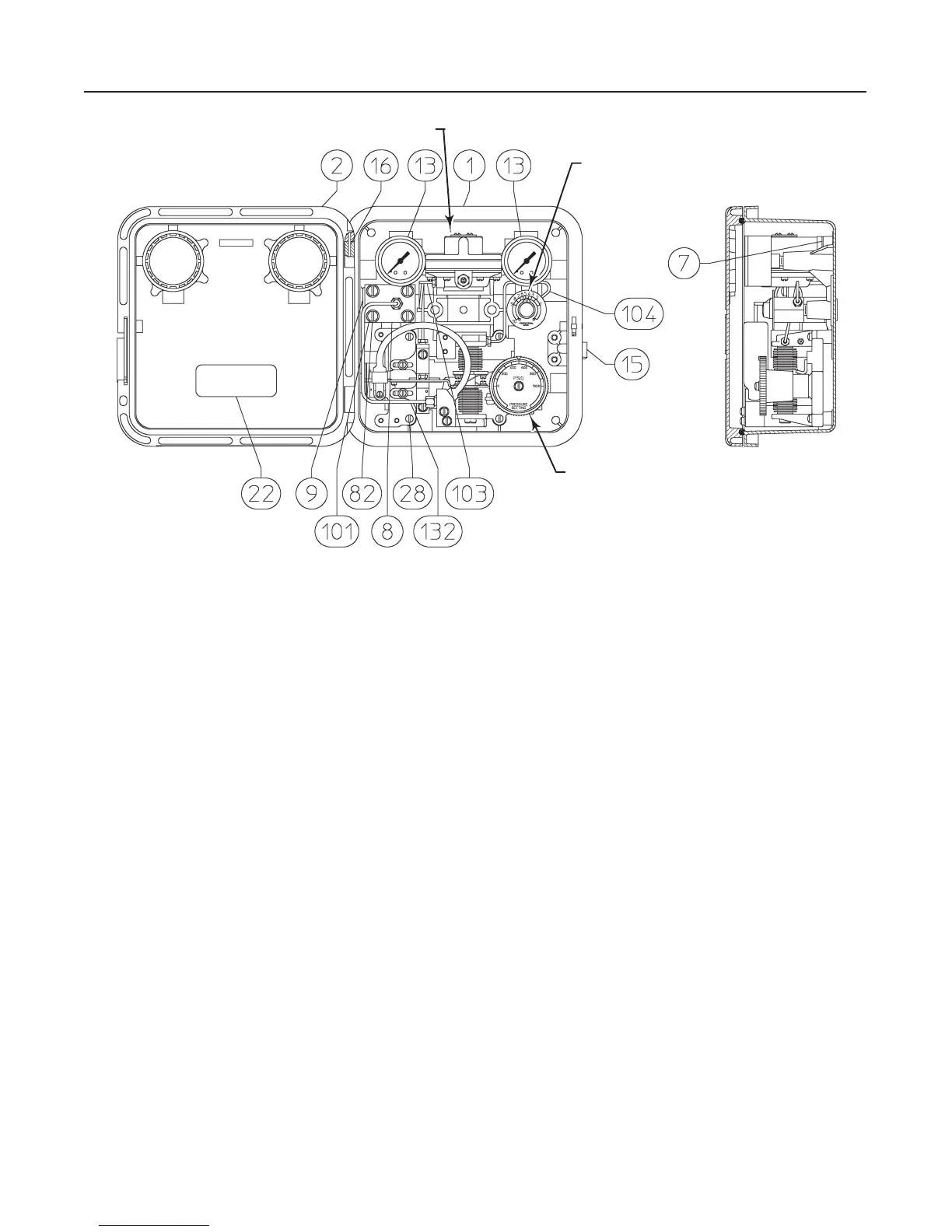

Figure 19.Typical Direct-Acting 4150K Series Assembly (Continued)
NOTE:
KEYS: 10, 81, 105 NOT SHOWN
48B6003-A
B2652 / IL
PILOT RELAY
PROPORTIONAL
BAND
ADJUSTMENT
SUBASSEMBLY (KEY NOS.
SHOWN IN FIGURE 20 OR 21)
Key Description Part Number
38 Dial, aluminum
For Bourdon tube controllers (con’t)
0–600 psig 16A7662 X062
0–1000 psig 16A7662 X072
0–1500 psig 16A7662 X082
0–3000 psig 16A7662 X092
0–5000 psig 16A7662 X102
0–8000 psig 16A7662 X112
0–10,000 psig 16A7662 X122
0–200 kPa 16A7662 X142
0–400 kPa 16A7662 X152
0–700 kPa 16A7662 X162
0–1400 kPa 16A7662 X172
0–2000 kPa 16A7662 X182
0–4000 kPa 16A7662 X192
0–7000 kPa 16A7662 X202
0–10,000 kPa 16A7662 X212
0–20,000 kPa 16A7662 X222
0–35,000 kPa 16A7662 X232
0–55,000 kPa 16A7662 X242
0–70,000 kPa 16A7662 X252
0–100% 16A7662 X272
0–2 bar 16A7662 X482
0–4 bar 16A7662 X442
0–7 bar 16A7662 X472
0–14 bar 16A7662 X462
0–20 bar 16A7662 X492
0–40 bar 16A7662 X452
0–70 bar 16A7662 X502
0–100 bar 16A7662 X512
Key Description Part Number
38 Dial, aluminum
For Bourdon tube controllers (con’t)
0–200 bar 16A7662 X522
0–350 bar 16A7662 X532
0–550 bar 16A7662 X542
0–700 bar 16A7662 X552
For bellows sensing element controllers
Gauge pressure
0–60 inches wc 16A7662 X282
0–140 inches wc 16A7662 X292
0–5 psig 16A7662 X302
0–10 psig 16A7662 X312
0–15 psig 16A7662 X322
0–20 psig 16A7662 X332
0–30 psig 16A7662 X012
0–200 kPa 16A7662 X142
0–10 inches Hg vacuum 16A7662 X342
0–30 inches Hg vacuum 16A7662 X352
30–0–30 inches wc compound 16A7662 X362
15 in. Hg vacuum–0–7.5 psig compound 16A7662 X372
30 in. Hg vacuum–0–15 psig compound 16A7662 X382
0–60 inches wc vacuum 16A7662 X392
Differential pressure
0–80 inches wc 16A7662 X402
0–10 psig 16A7662 X312
0–20 psig 16A7662 X332
0–30 psig 16A7662 X012
0–200 kPa 16A7662 X142
0–2 bar 16A7662 X482
For all Type 4155K, 57K, & 58K transmitters 16A7664 X012
