TRANSDUCER INSTALLATION
The transducer listens for the signal sent by the Fish Hawk Probe. Properly
installing the transducer is key to getting the best performance.
The transducer should be mounted nearly ush with the bottom of the boat’s
hull, parallel with the surface of the water.
Select a location on the transom that is not affected by turbulence caused by the
motor used for trolling. Do not locate the transducer in front of a motor.
Do not remove the connector or cut the transducer cable. Coil any excess
cable out of the way. If more length is needed, 15’ transducer extension cables are
available for sale at shhawkelectronics.com.
DISPLAY INSTALLATION
Mount the Fish Hawk Display in a visible, protected location. The display
requires the power cord and transducer be connected. The 12-volt power cord has a
one amp in-line fuse for wiring directly to the battery.
DISPLAY OPERATION
The Fish Hawk Display is ready to sh right from the box. Press the power
symbol button to turn the display on. Screen settings are accessed by pressing the
SET button. Each time the SET button is pressed, the display will advance to the next
eld. Use the UP and DOWN arrow buttons to adjust settings and press the power
symbol button once to save changes.
Enable the screen backlight by pressing the UP arrow, turn the backlight off by
pressing the DOWN arrow. There are three backlight brightness levels.
FH
FH
FH
FH
S
FH
Fish Hawk Transducer - 70 kHz
Single Outboard/Outdrive

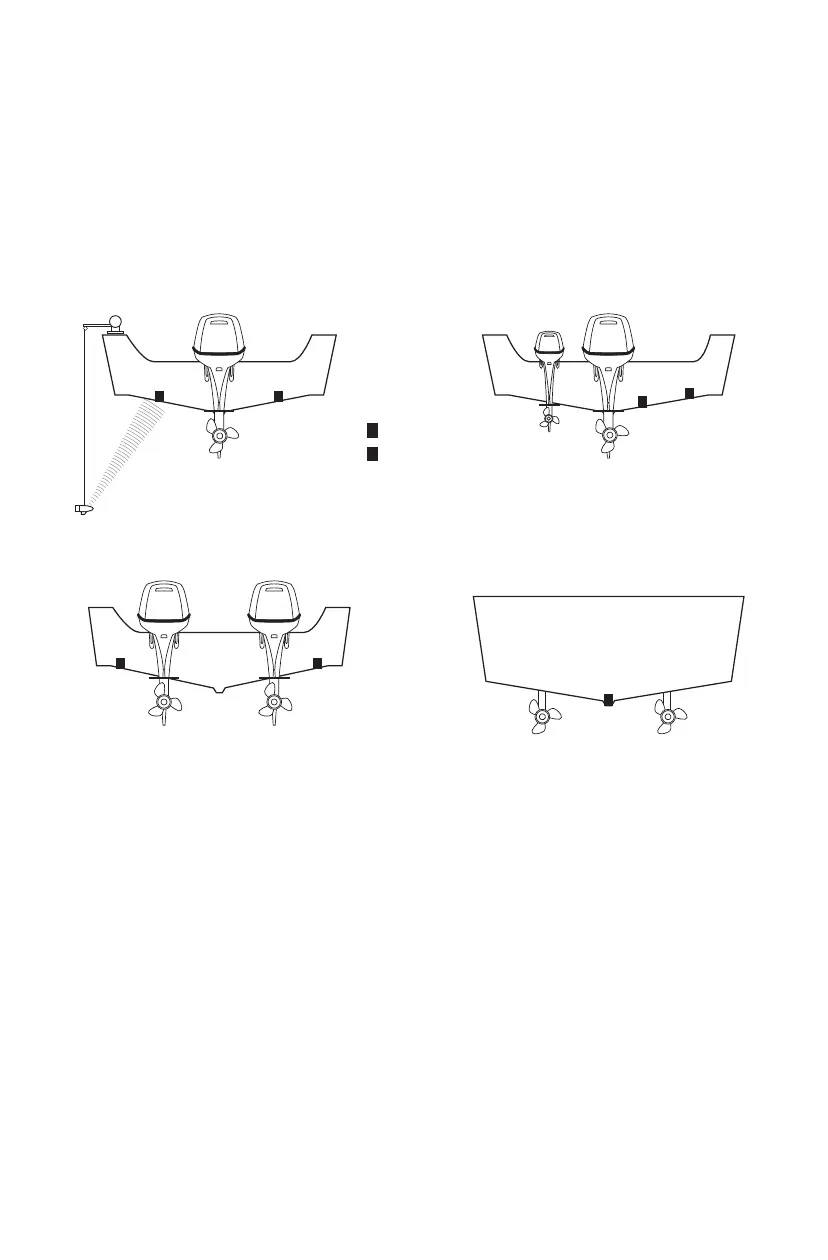

Recommended Transducer Locations
Twin Outboard/Outdrive
Single Outboard with Kicker Motor
Twin Inboards
Sonar Transducer - 200/83/50 kHz, CHIRP
Mid-Ship Thru Hull Sonar Transducer
Operate at
200 kHz or CHIRP
Run Fish Hawk Probe
on same side as
Fish Hawk Transducer
S
S
S
