8

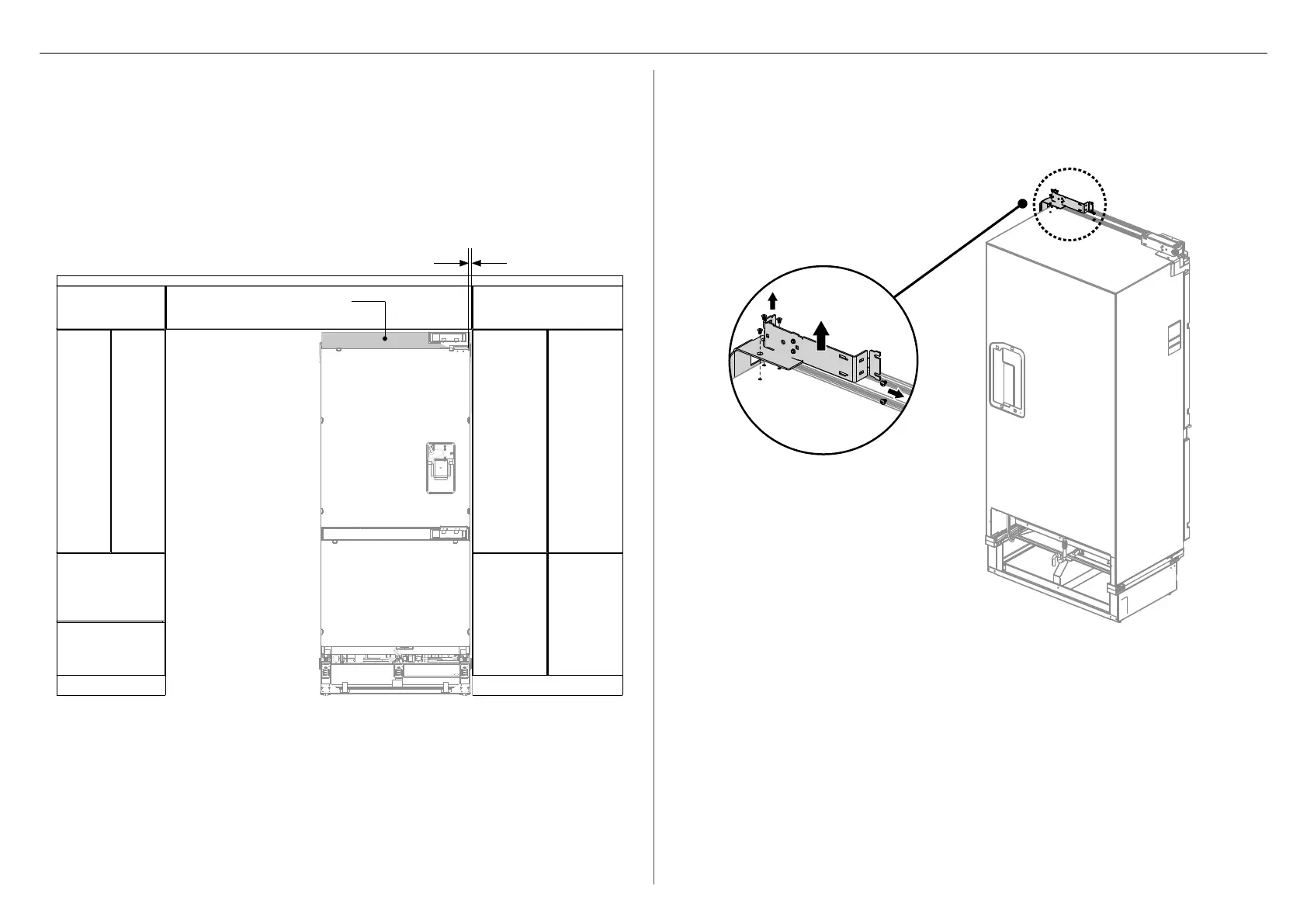

Front side view
7 REMOVE HINGE BRACKET
IMPORTANT!
Follow these steps to remove the hinge bracket on the non-hinge side of both left and
right hinge appliances.
Removing hinge brackets from appliance
1 Measure the distance between the end of the top trim and the side of the cabinet.
Ensure the distance is not greater than 1/4” (6mm).
If distance is greater than 1/4” (6mm), loosen the screws at the back of the trim and shift
the trim sideways to suit.
2 At the non-hinge side of the appliance, loosen the M5x10 pan head attachment screws from
the end of the top trim, and then shift the screws towards the centre of the trim. (A)
B
A
3 Unscrew the countersunk screws with a crosshead screwdriver to remove the hinge bracket
from the appliance. (B)
<1/4” (<6mm)
Top trim
Note: illustration above shows cavity for RS36W80/RS9120W model.
To Next Page
