Fisher & Paykel ACTIVESMART RS80A Dual Installation Guide

7
6 ATTACH FOAM PADS
IMPORTANT!
Foam pads should be placed at identical heights on left and right hinge appliances to
ensure good fit of joiner trim.
MEASUREMENTS in mm
A
Distance of first tab location from cabinet top 2” 50
B
Distance of second tab location from cabinet top 35” 890
c
Distance of third tab location from floor 13” 50
Attaching foam pads to appliance
1

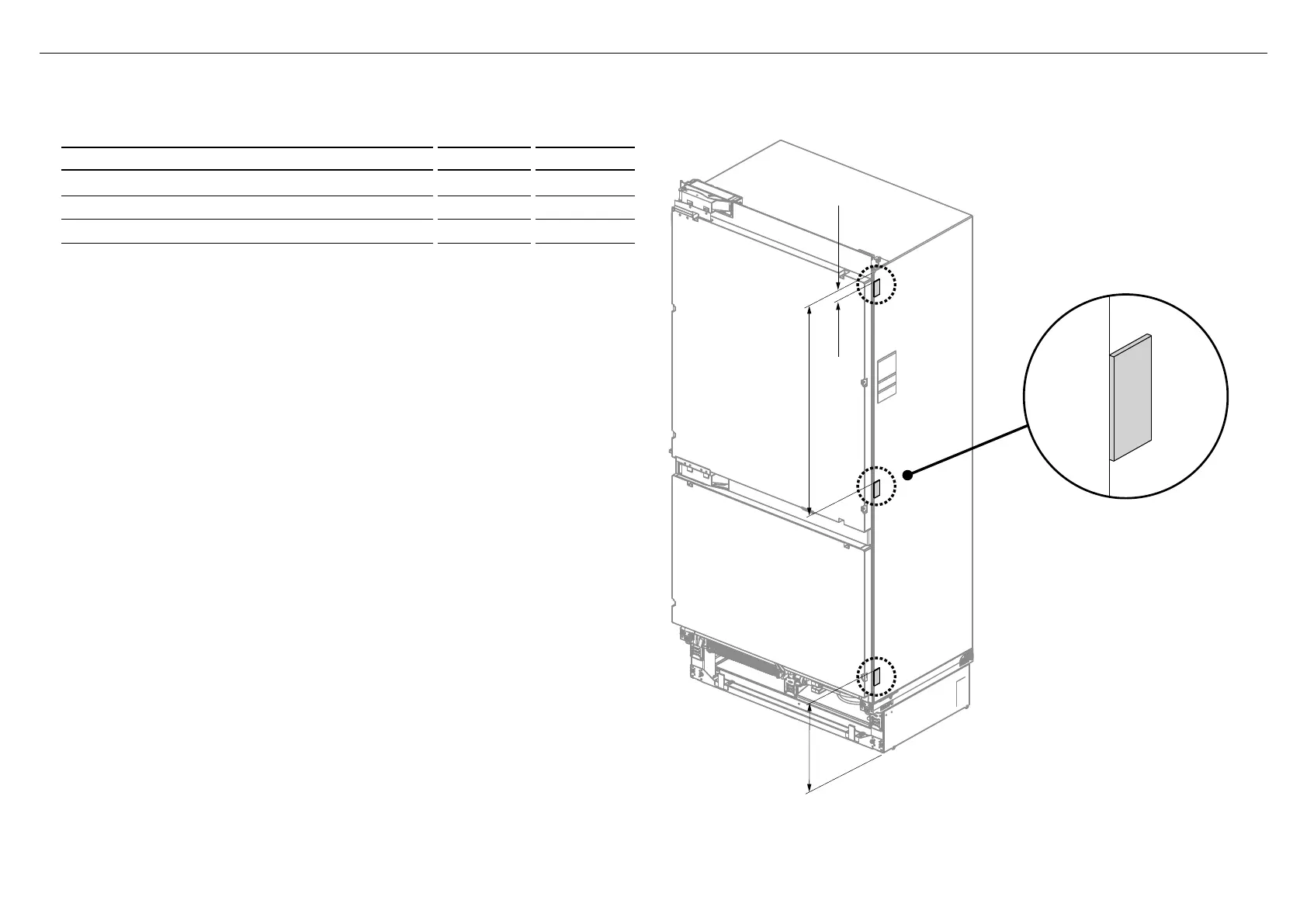

Mark three locations along the edge of the non-hinge side of each appliance. Refer to the
measurements table below.
A
B
C
