Installation instructions

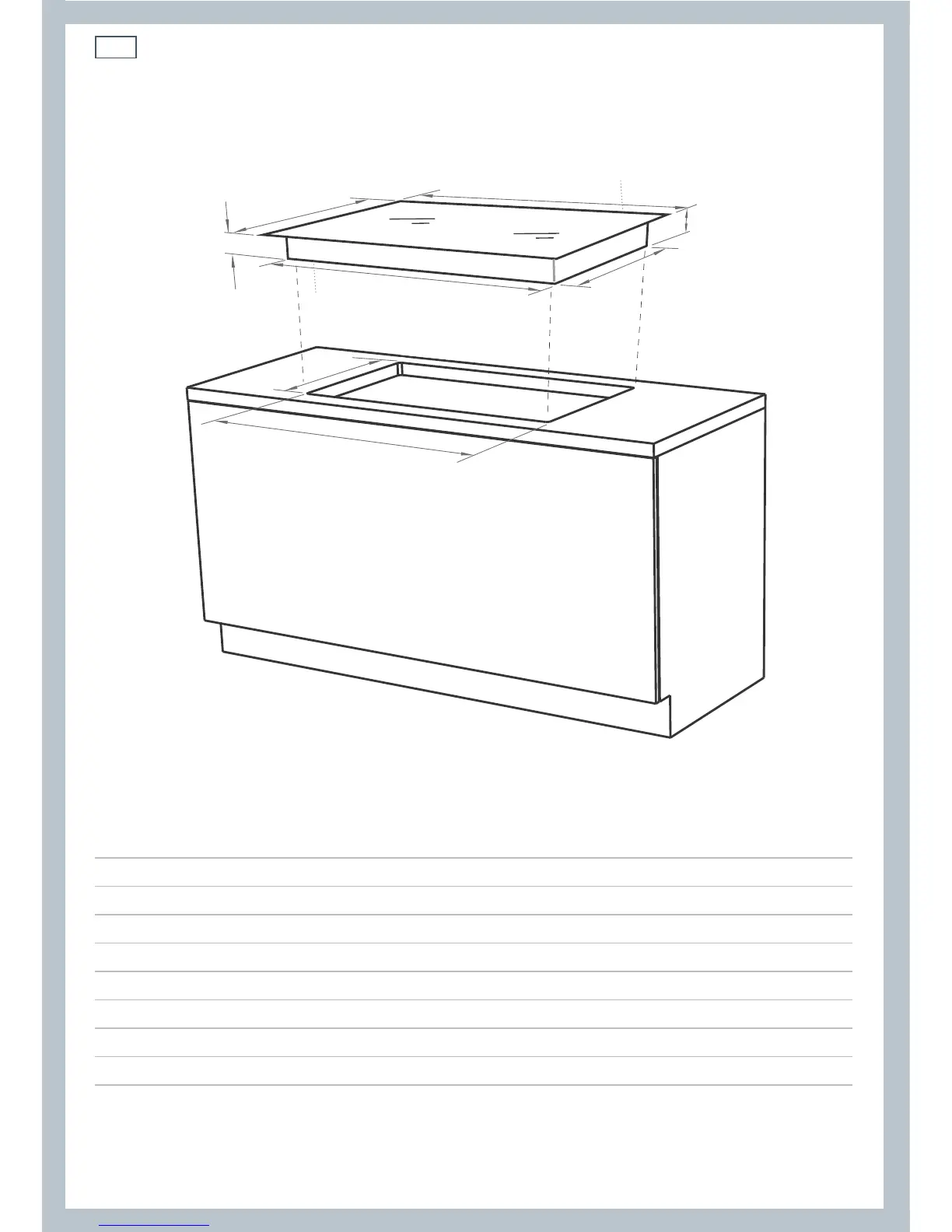

Cooktop and cutout dimensions
Cooktop and cutout dimensions (mm)
CE302 CE604
A
overall width of cooktop
300 578
B
overall depth of cooktop
510 511
C
height of chassis (below top of bench)
45 52
C
1
height of chassis incl. terminal block (below top of bench)
63 52
D
width of chassis
267 553
E
depth of chassis
483 483
F
overall width of cutout
270 560
G
overall depth of cutout
490 490
Terminal block location:
1 CE604 models - Right rear
2 CE302 models - Front left
A
C
1
B
2
1
C
D
G
F
E
Drawings for illustration purposes only
