UNPACKING AND HANDLING
To remove door:
WARNING!
Do not lift oven door by the handle - this will cause damage! Be sure
the oven and door are cool before you begin to remove the door!
1. Open the door completely. (Fig. 5a).
2. Unlock the door hinges by rotating the lock forward (Fig. 5b).
3. Once both hinges are unlocked, gently close the door until
approximately halfway closed. Grabbing the sides of the door
and gently lifting up and slightly forward, the door will unlatch
from the hinge.
4. Continue to lift and pull the door away from the range.
To re-install door:
1. Position the door in approximately halfway open position.
2. Simply place the hinge tongue into the hinge slots (See Fig. 6a).
3. Push the door into the slots until you feel them fall into the
latches.
4. Open the door completely and rotate the locks into the closed
position (Fig. 6b).
5. Close the oven door.

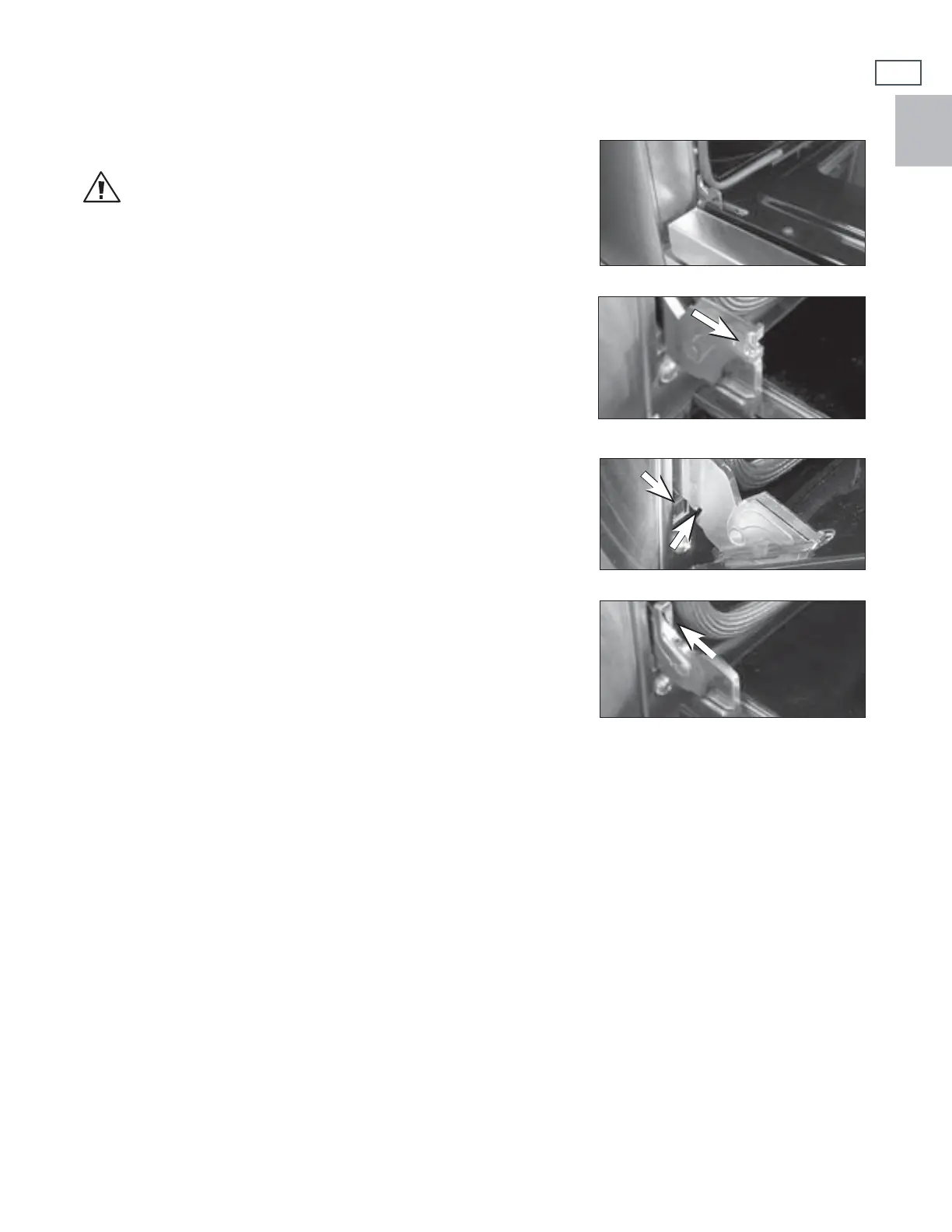

Fig. 5a Oven hinge assembly
Fig. 5b Hinge retainer clip in unlocked position
Fig. 6b Hinge retainer clip in locked position
Fig. 6a Hinge assembly
hinge slot
hinge tongue
