Fisher & Paykel DCS RGU Series User Manual

18
0” Clearance
C
J
I
0” Clearance
B
F
C
K
E
D
G
HOOD
51" Min. to
Combustibles 
12" Min. to
Combustibles 
without backguard
51" Min. to
Combustibles
51" Min. to
Combustibles
 As dened in the “National Fuel Gas Code”
(ANSI Z223.1, Latest Edition).
The horizontal surfaces of the range top
(cooktop) trim must not be below
countertop level.
0” Clearance
A
F
C
H
E
D
G
HOOD HOOD
HEIGHTS & DEPTHS
(identical for all models)
A= 26-1/2”
B= 11-13/32”
C= 3-1/2”
D= min.35-3/4”,
max.36-3/4”
E= 30-1/4”
F= 46-11/16”
G= 29”
H= 1-5/16”
I= 25”
J= 27-1/2”
K= 13/16”
CABINET PREPARATION

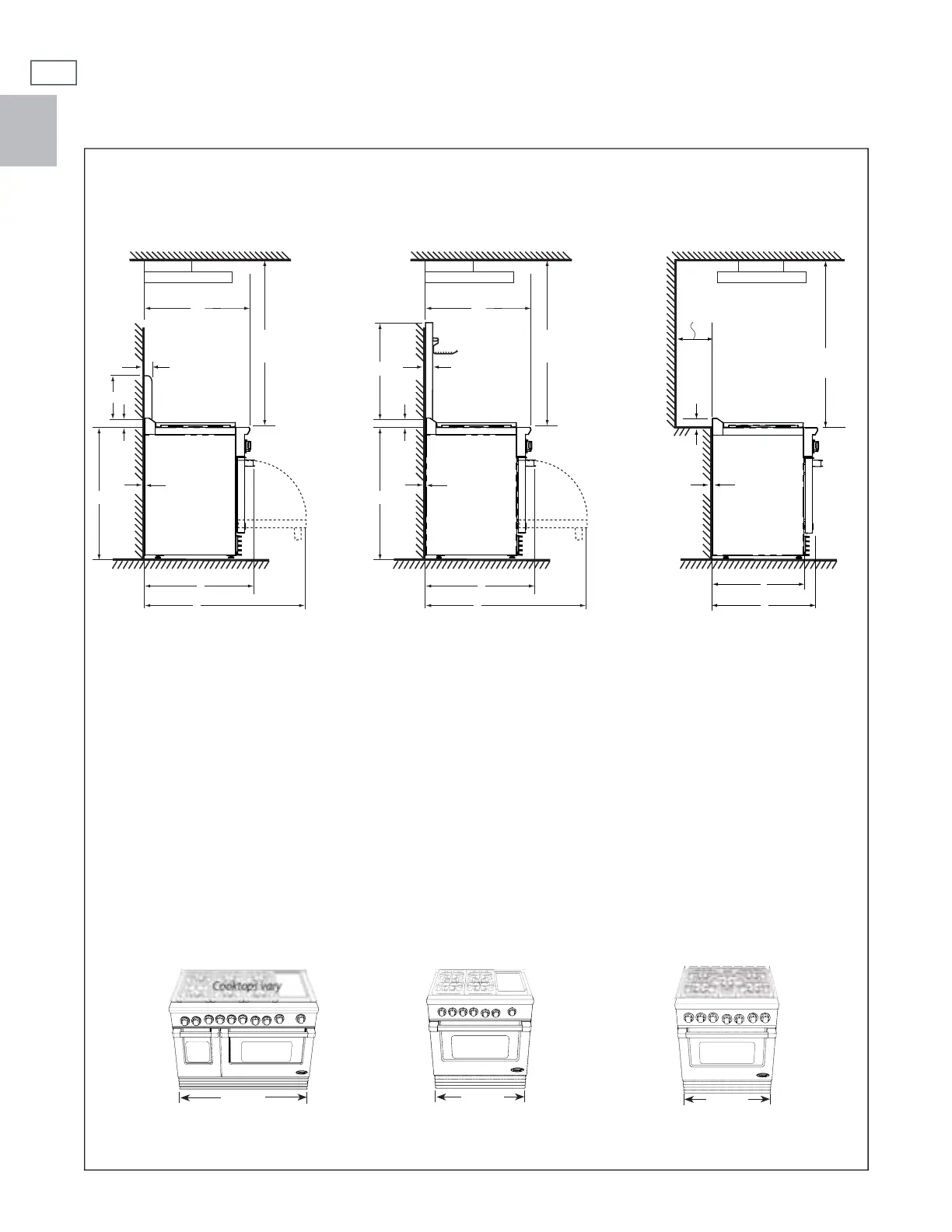

Fig. 13 Product dimensions and clearances
Standard Installation: Full Backguard Installation:
using the appropriate range mount
Standard backguard model: BGRU2-1548,
BGRU2-1536, or BGRU2-1530
using the appropriate wall mount Full
backguard model: BGRU-3048, BGRU-3036,
or BGRU-3030
using the integral island trim only
Island Installation:
Important!
If using the island trim only,
a 12” clearance is required
between the back of the
range and a combustible
surface (above the cooking
surface). If the clearance is
less than 12”, the back wall
must be non-combustible
and made of heat-resistant
material.
WIDTH
RGU-48
RDU-48
RGU-36
RDU-36
RGU-30
RDU-30
RGUC-30
47-7/8”
47-7/8”
35-7/8”
35-7/8”
29-7/8”
29-7/8”
US
CA
Cooktops vary
Cooktops vary
