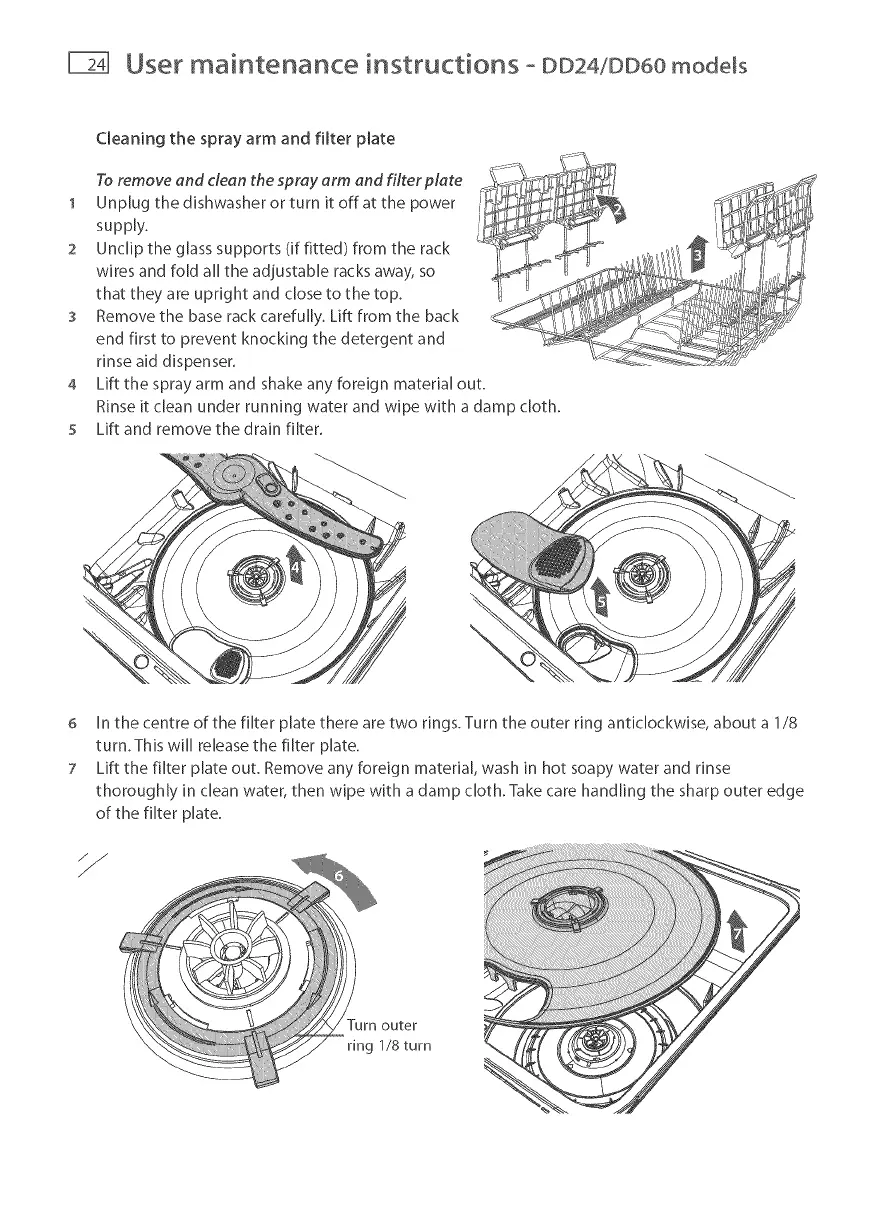

User maintenance instructions ,oDD24/DD60 models
1
2
4
S
Cleaning the spray arm and filter plate
To remove and clean the spray arm and fi#er p/ate
Unplug the dishwasher or turn ]t off at the power
supply.
Unclip the glass supports (if fitted) from the rack
wires and fold all the adjustable racks away, so
that they are upright and dose to the top.
Remove the base rack carefully. Lift from the back
end first to prevent knocking the detergent and
rinse a]d dispenser.
Lift the spray arm and shake any foreign material out.
Rinse it dean under running water and wipe with a damp cloth.
Lift and remove the drain filter.
i !__/_
6 in the centre of the filter plate there are two rings. Turn the outer ring anticJockwJse, about a 1/8
turn. This will release the filter plate.
7 Lift the filter plate out. Remove any foreign material, wash in hot soapy water and rinse
thoroughly in clean water, then wipe with a damp cloth. Take care handling the sharp outer edge
of the filter plate.
//
/
Turn outer
ring 118turn
