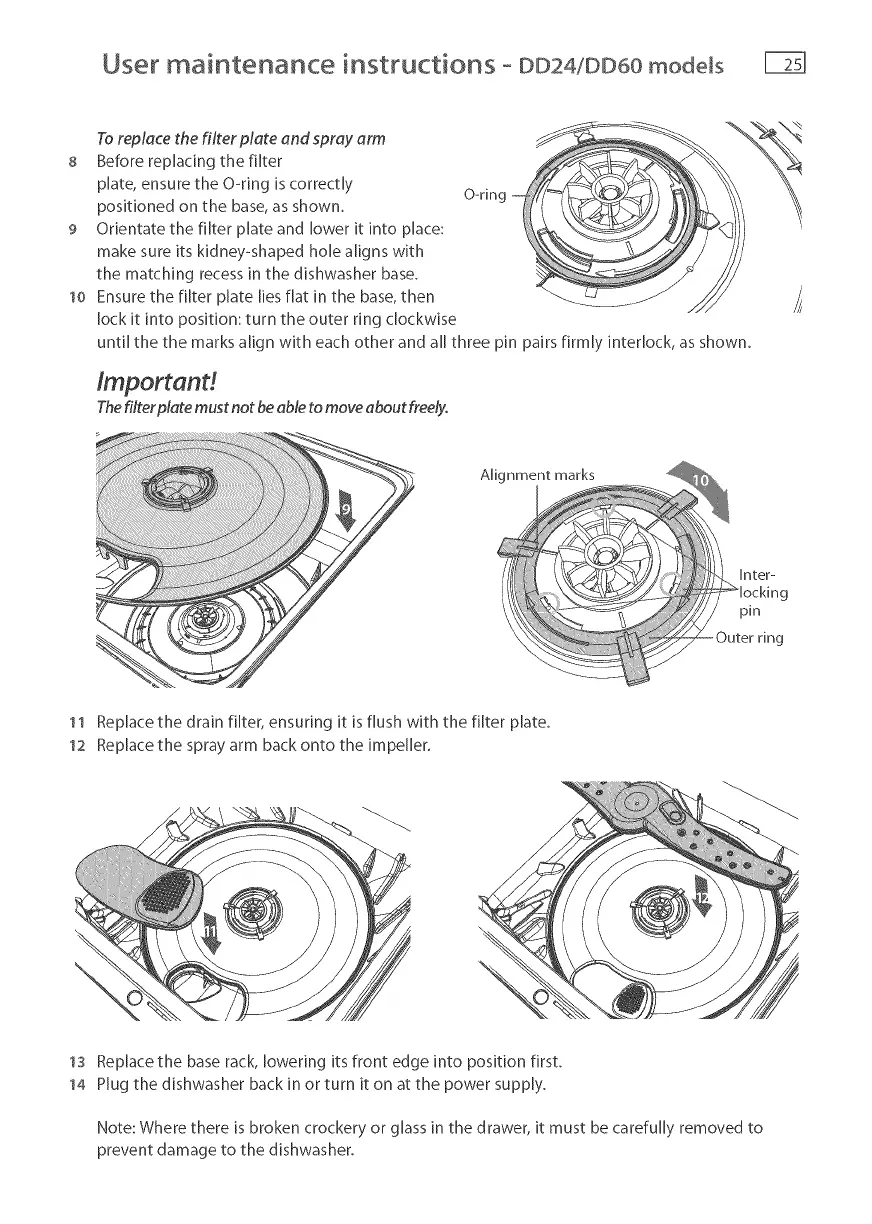

User maintenance instructions ,oDD24/DD60 modeB
To replace the filter plate and spray arm
8 Before replacing thefi[ter
plate, ensure the O-ring is correctly O-ring
positioned on the base, as shown.
9 Orientate the filter plate and lower it into place:
make sure its kidney-shaped hole aligns with
the matching recess in the dishwasher base.
lo Ensure the filter plate lies flat in the base, then ......
lock it into position: turn the outer ring clockwise
until the the marks align with each other and all three pin pairs firmly interlock, as shown.
lmportand
The filter plate must not be able to move about freely:
Alignment marks
pin
-Outer ring
11 Replace the drain filter, ensuring it is flush with the filter plate.
12 Replace the spray arm back onto the impeller.
\
lS Replacethe base rack, lowering its front edge into position first.
14 Plug the dishwasher back in or turn it on at the power supply.
Note: Where there is broken crockery or glass in the drawer, it must be carefully removed to
prevent damage to the dishwasher.
