Fisher & Paykel DD24DHTI Installation Guide

12
2
1
3
(x2)
!2-A SECURE TO THE CABINETRY ON THE SIDES
!4-A AFTER SECURING, REFER TO ‘FIT THE SUPPLIED TOEKICK PANEL’ STEP
!3-A OPTIONALLY SECURE TO THE CABINETRY ABOVE

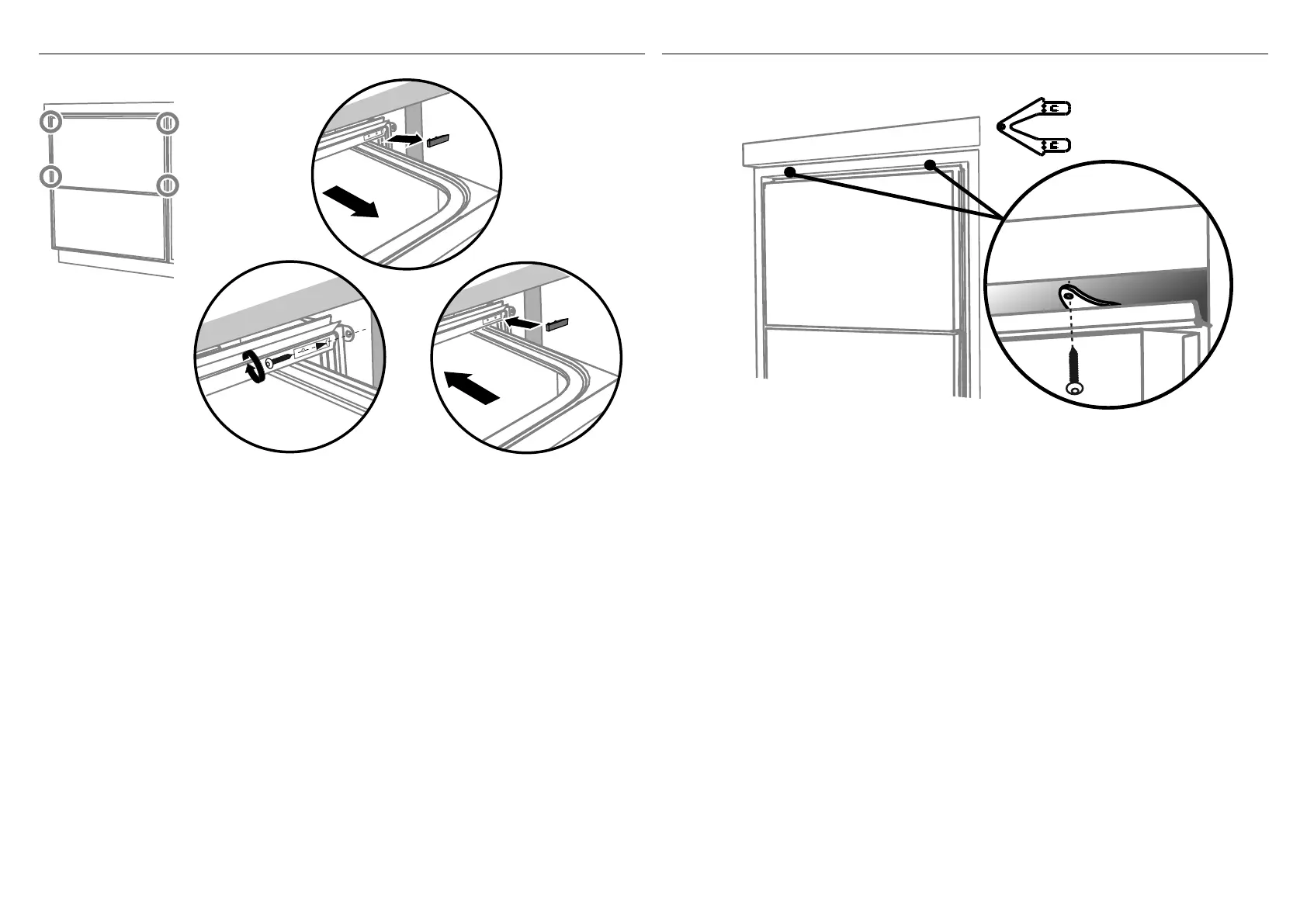

Open the
drawer halfway.
Using a flat
bladed
screwdriver,
prise the gray
rubber plug out
of the trim
moulding.
Replace the gray
rubber plug back into
the trim moulding
and ensure the trim
seal is facing forward.
Repeat for all
four brackets.
Using a small Philips
screwdriver, screw
through the trim
moulding, securing the
side mounting bracket
to the cabinetry.
Do not damage the
rubber trimseal.
The top mounting
brackets will only
bend upwards a
maximum of 3⁄8”
(10 mm).
