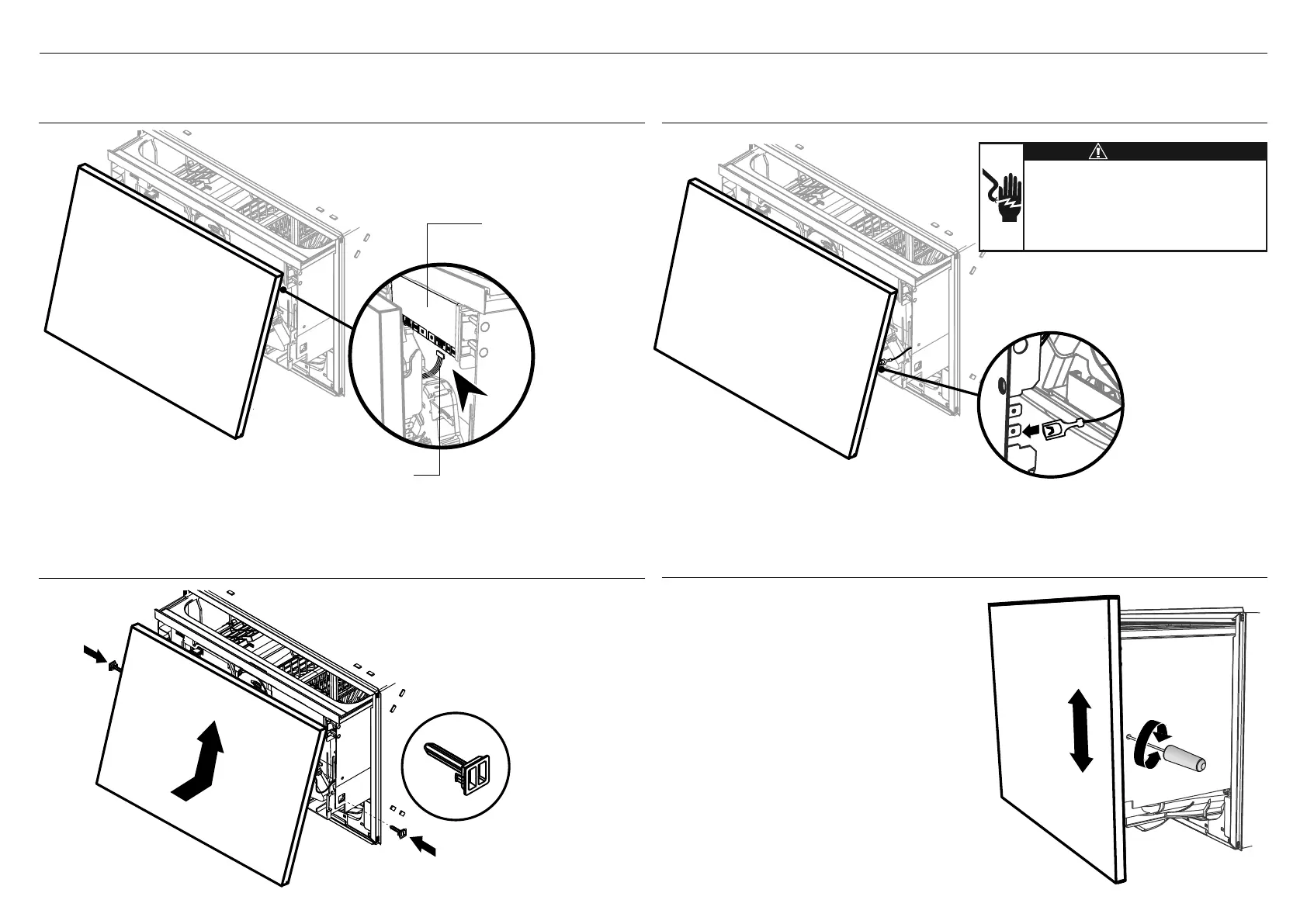

!5 INSTALLING CUSTOM FRONT DRAWER PANELS
!5-E CONNECT THE KNOCK-TO-PAUSE MODULE
TO THE CONTROLLER
!5-G ATTACH CUSTOM PANELS TO PRODUCT
!5-F RECONNECT THE EARTH WIRE TO THE
PANEL BRACKET
!5-H ADJUST CUSTOM PANEL HEIGHT TO
ALIGN CABINETRY GAPS
2
2
1
Controller
Ensure the Knock-To-Pause Module
Cable is connected to the UI1 Port.
Repeat for the other drawer.
Electrical Shock Hazard
WARNING!
To earth the panel bracket, connect the earth
wire from the product to one of the tabs.
Any custom metal component (e.g. handle)
that extends past the rubber seal must be
earthed too.
Failure to follow these warnings may result
in electrical shock, injury or fire.
Reconnect the
Earth Wire to the
Panel bracket.
Repeat for the
other drawer.
+ or – 1/16”
(2mm)
Push the Custom Panel on to
the drawer and reinsert the
side pins on each side.
Repeat for the other drawer.
With the front panels fitted, insert
an appropriately sized Philips
screwdriver into the hole above
the side pin and rotate the panels
up or down to align the gaps in
yourcabinetry.
Repeat on the other side if necessary.
Each panel has a maximum travel of
1/16” (2mm) up or down.
IMPORTANT!
Ensure that you maintain a minimum
of 5/16” (8mm) ventilation gap
between the upper and lower panels.
Side Pin
