5

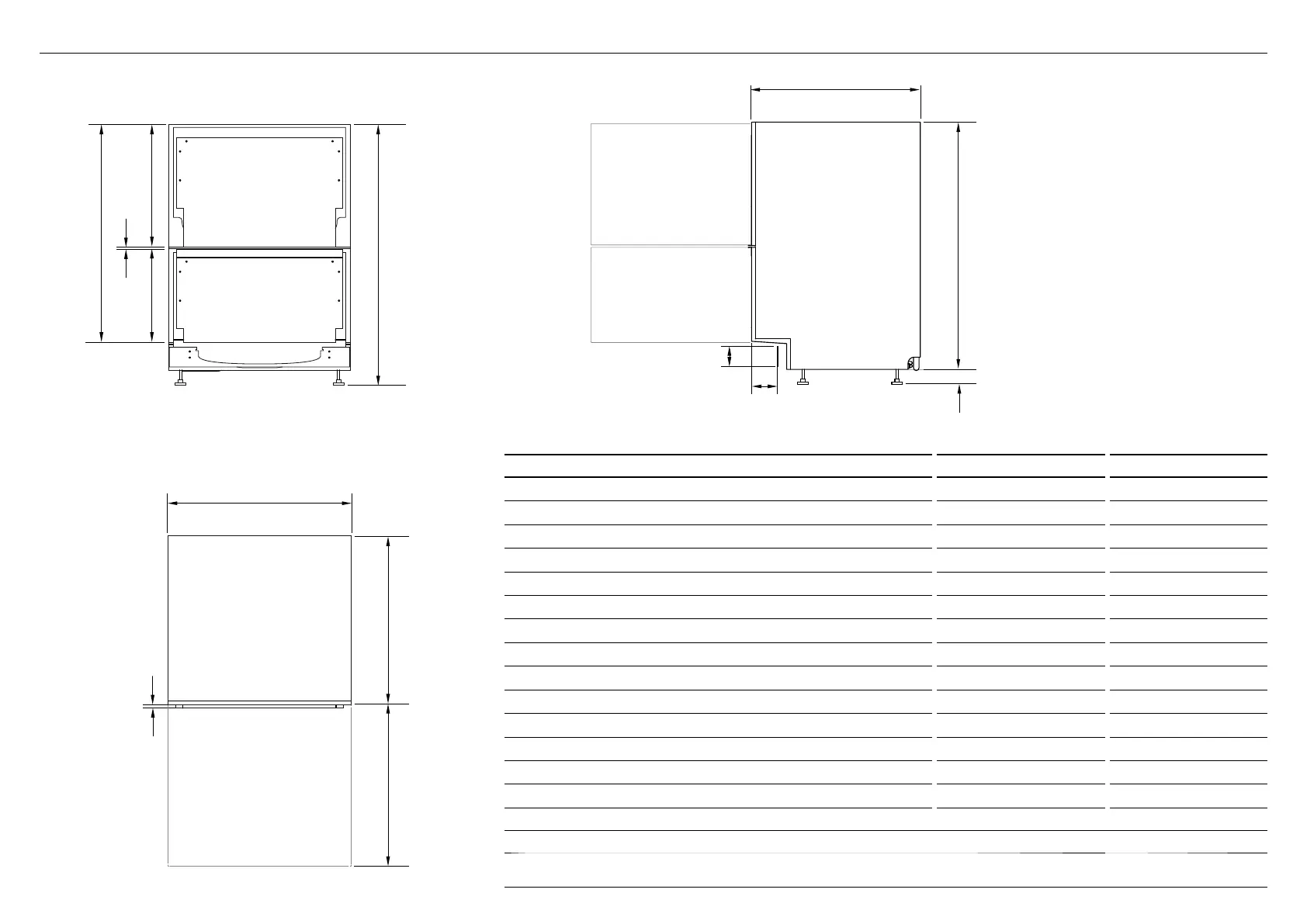

4 PRODUCT DIMENSIONS
STANDARD
HEIGHT
MODELS
TALL
HEIGHT
MODELS
PLAN
PROFILEFRONT
DD24DI
DD24DTI
DD24DHTI
PRODUCT DIMENSIONS INCHES (MM) INCHES (MM)
A
Overall height of product
1, 2
32 5/16–34 5/8” (820-880) 34–36 3/8” (864-924)
B
Overall width of product
23 9/16” (599) 23 9/16” (599)
C
Overall depth of product
3
22 1/2” (571) 22 1/2” (571)
D
Depth of chassis (to back of front drawer panel)
21 3/4” (553) 21 3/4” (553)
E
Depth of drawer front panel
5/8”–13/16” (16-20) 13/16” (20)
F
Height of chassis
1
31 15/16” (811) 33 11/16” (855)
G
Height of drawer front panels
min. 28 1/4” (717) 29 15/16” (761)
H
Height of upper drawer front panel
min 15 11/16” (398) min. 17 3/8” (442)
I
Height of lower drawer front panel
12 1/4”–14 3/16” (311-360) 12 1/4”–14 3/16” (311-360)
J
Ventilation gap between drawer front panels
5/16” (8) 5/16” (8)
K
Height of toekick (customisable)
2 1/4”–4 5/8” (58-118) 2 1/4”–4 5/8” (58-118)
L
Depth from front of drawer panel to front of toekick (adjustable)
4, 5
1 9/16”–3 15/16” (40-100) 1 9/16”–3 15/16” (40-100)
M
Height of leveling feet (adjustable)
2
3/8–2 11/16” (9-69) 3/8–2 11/16” (9-69)
N
Maximum extension of drawer
3
21 7/16” (545) 21 7/16” (545)
1
includes 1/16” (2mm) high bracket slots
2
depending on adjustment of leveling feet
3
assuming front panel thickness of 11/16” (18mm)
4
adjustable to match toekick recess on adjoining cabinetry
5
assuming custom toekick panel thickness of 11/16” (18mm); if recess is between 1 15/16”-3 5/16” (50-84mm) deep, the panel will need to be cut
out–see step ‘Custom panel calculations’
A
K
L
M
G
H
J
I
F
D
N
E
C
B
