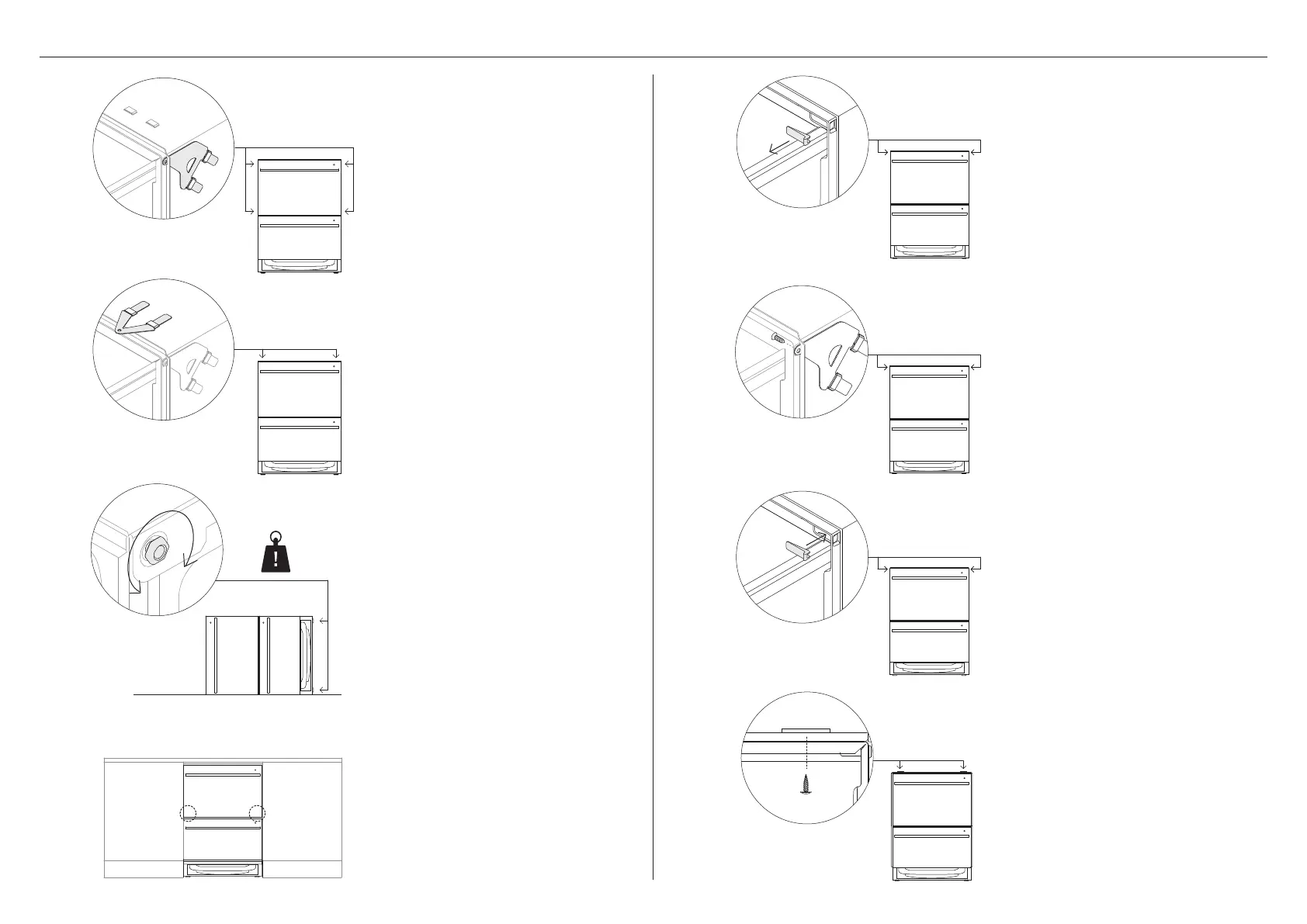

SECURE TO CABINETRY VIA BRACKETS (METHOD A)
Secure all four side brackets to the
DishDrawer™ Dishwasher, aligning
bracket A with slot A and bracket B
with slot B.
Ensure the ends of the brackets are
not pushed into the chassis.
1
5
2
6
3
7
4
8
Push the product into the cavity, pulling
the hoses through as you push to avoid
crushing or twisting them and taking
care not to bend the legs.
Push the product in the positions
illustrated to avoid denting the door.
Optionally, fit the two top brackets for
additional stability. Ensure the brackets
are oriented correctly with the raised
locking barbs facing upwards.
Ensure the ends of the brackets are
not pushed into the chassis.
Level the DishDrawer™ Dishwasher
by carefully tipping it onto
protected surface.
Rotate each leg anticlockwise to
increase the height, and clockwise to
decrease. Stand upright when complete.
Minor adjustments can be made by
lightly tilting the product and rotating
each leg as desired.
A
A
B
B
Partially open one of the drawers and
remove the first screw cover from the
trim moulding.
Secure to cabinetry via the brackets.
Pre-drilling a pilot hole may be required
depending on the cabinetry material.
Replace the trim cover and repeat
for the remaining brackets.
If fitted, secure the two top brackets
to the cabinetry.
