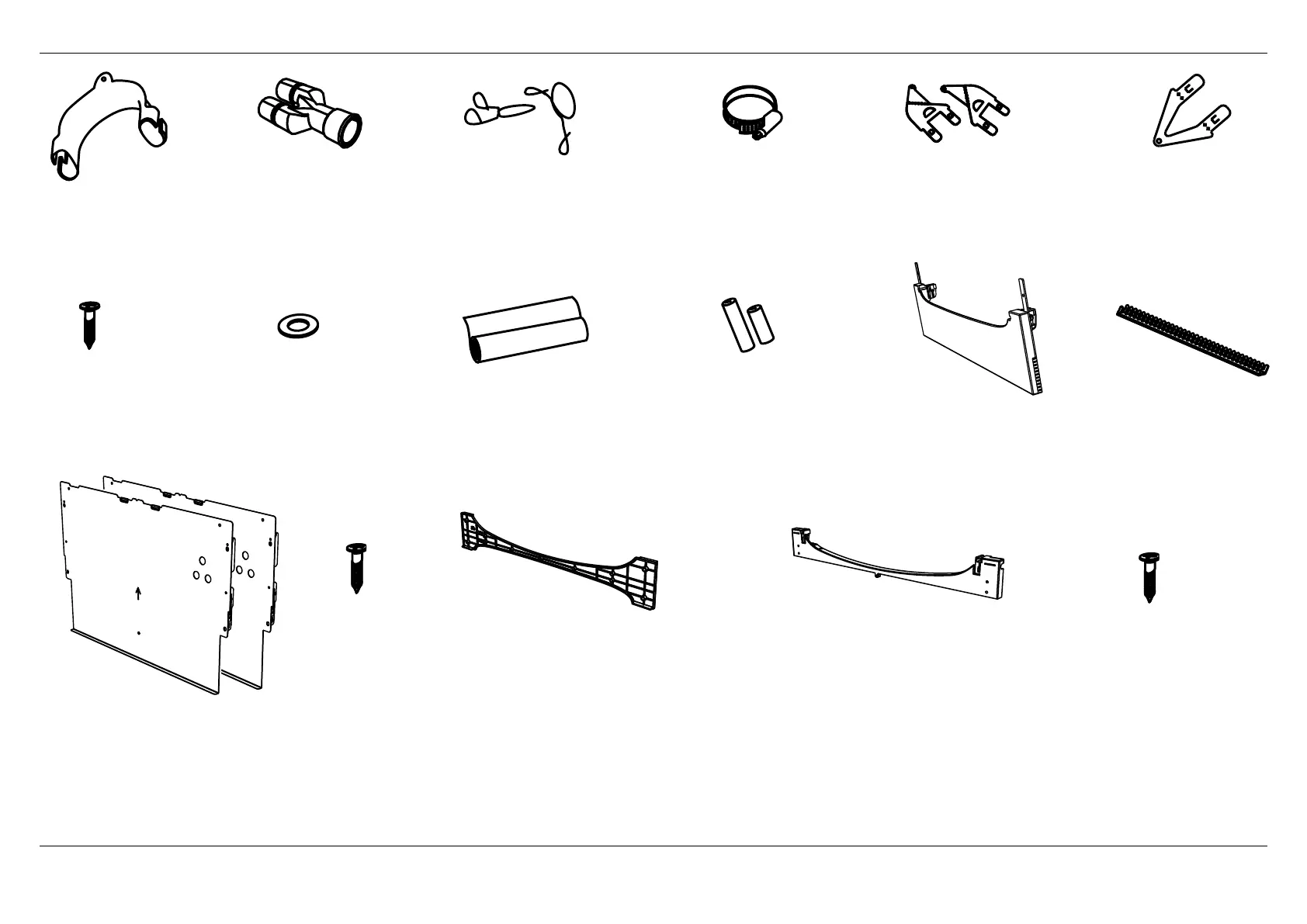

2 PARTS SUPPLIED
If the Drain hoses supplied are not long enough to reach your services, you must use a Drain Hose Extension Kit P/N 525798 which will extend the drain hoses by 11’ 10” (3.6m).
The kit is available from the nearest Fisher & Paykel Authorized Service Center, or Toll free 1.888.936.7872 or www.fisherpaykel.com
Clamp (1)
(for securing
Drain hose joiner)
Wire clip (2)
(for securing
Drain hose joiner)
Phillips
5/8” (16mm)
screws (9)
Drain hose
support (1)
Moisture protection tape (1)
(to prevent moisture damage
to cabinetry)
Drain hose
joiner (1)
Top mounting
brackets (2)
OPTIONAL
Prefinished toekick (1) Rubber washer for
inlet hose (1)
(comes already fitted)
Hexagonal socket for
feet adjustment (2)
(long & short)
Side mounting
bracket kit
(A and B) (2)
OPTIONAL
Edge Protector (1)
(If the services hole is
through a metal partition,
the hole must be protected
with the Edge Protector
supplied to prevent damage
to the power cord or hoses.)
Panel bracket (2)
& Knock-to-Pause Module (2)
(shipped fixed to product)
Panel mounting
screws (12)
Toekick mounting
screws (5)
Toekick mounting bracket (1)
(A custom toekick panel of any material with
thickness 3/8”–3/4” (9–19mm) can be screwed
to the Toekick mounting bracket)
Toekick mounting bracket cutting template (1)
(To enable a custom toekick panel to be cut to
fit the product profile dependant on the depth
of the toekick)
DishDrawer™ Installation Video
This video provides an overview of what is needed to install a DishDrawer™. It is intended as an overview only of the installation process and is not intended to be used
as a guide on how to install a DishDrawer™ yourself. https://vimeo.com/325297597
