3 OPTIONALLY HARD WIRING PRIOR TO INSTALLATION

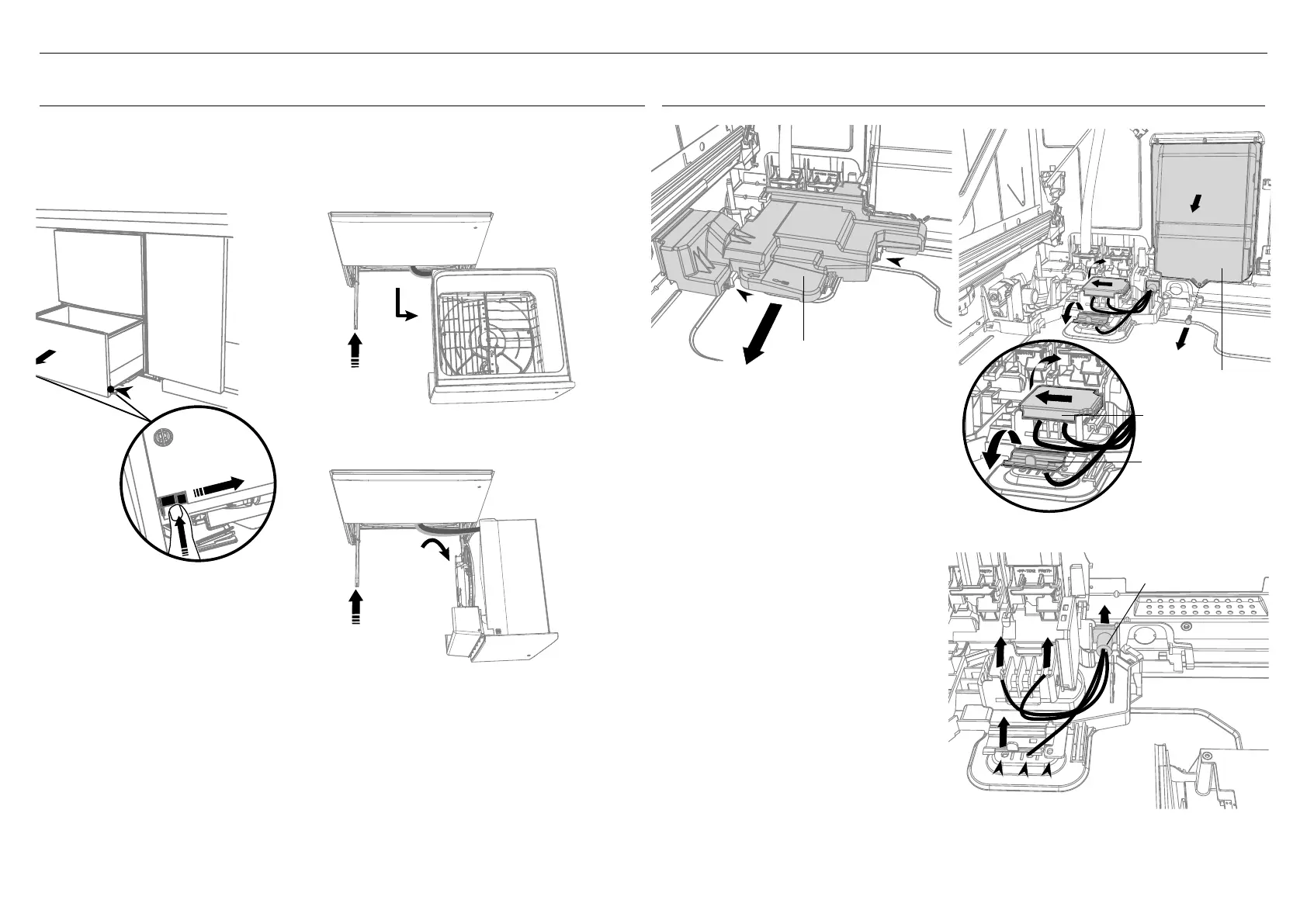

3-A REMOVE THE LOWER DRAWER 3-B REMOVE THE ACCESS COVER & REMOVE POWER CORD
Access cover
Clip
Clip
Electronics
module
Terminal
Block cover
Remove existing
power cord
1
1
2
3
4
5
6
7
7
1
2
4
4
3
3
4โ (100 mm)
To prevent kinked hoses
Either sit the drawer down on the left hand
side (recommended) or rotate the drawer
clockwise, resting it on its side after removal.
Press the release tabs
in on either side and
push back to release
drawer from runners.
Lift drawer off runners.
Push drawer
runners back in
on either side.
Push drawer
runners back in
on either side.
Sit the drawer down
Rotate the drawer
clockwise (max. 90
o
)
and rest on side.
1 With a flat-bladed screwdriver,
push in the clips and slide out the
access๎cover.
2 Unscrew the electronics module cover.
3 Carefully pull out the electronics
module and rest on the chassis base
out of the way.
4 With a screwdriver, unclip the plastic
harness cover and hinge open.
5 Slide the terminal block cover
sideways to unlock and hinge open to
access the terminal block.
6 Unscrew the Live, Neutral and Earth
wires as shown.
7 Unscrew the three screws on the base
as shown and remove the cord from
the product.
