Fisher & Paykel OB60 Series - Installation Instructions; Oven Dimensions and Cabinetry

5
A
CF
B
E
G
H
D
i

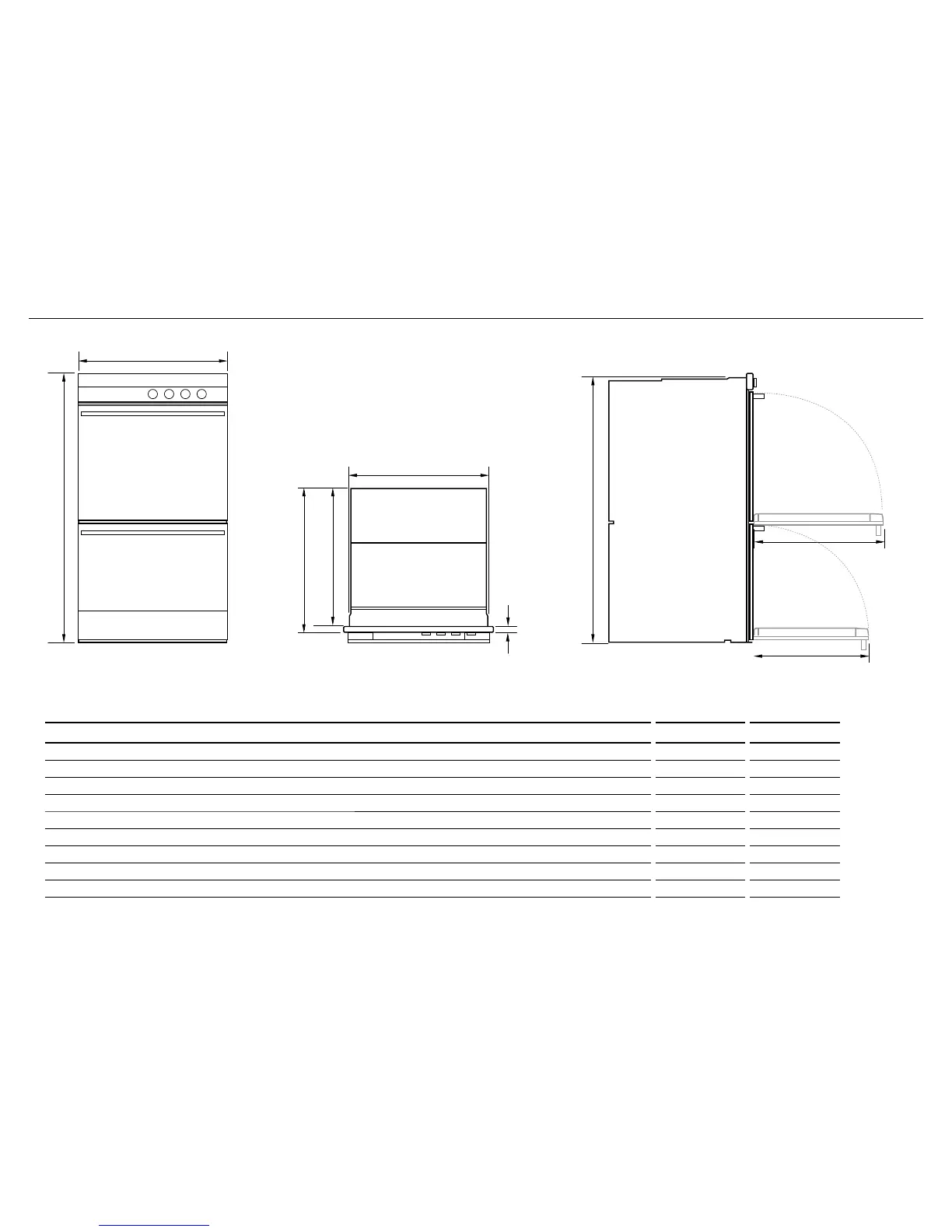

6PRODUCT DIMENSIONS (OB60B, OB60D MODELS)
OB60B MODELS OB60D MODELS
PRODUCT DIMENSIONS (MM) (MM)
a
Overall height* of product 888 1077
b
Overall width of product 595 595
c
Overall depth of product (excluding handle and knobs) 565 565
d
Height of chassis 874 1057
e
Width of chassis 556 556
f
Depth of chassis 545 545
G
Depth of oven frame and control panel (distance between front of chassis and front of oven door, excluding knobs) 20 20
H
Depth of upper oven door when fully open (measured from front of control panel) 261 435
i
Depth of lower oven door when fully open (measured from front of control panel) 435 450
*All height measurements include mounted feet.
FRONT TOP SIDE
