FITTING AND REMOVING THE SLIDING SHELF SUPPORTS
When fi tting the sliding shelf supports, make sure that you fi t:
- the slides to the top wire of a shelf position on the side racks
- both sides of each pair of slides on the same level.
Important!
Remove the side racks fi rst to make removing the sliding shelf supports easier.
FITTING THE SIDE RACKS
1. Slide the side rack gently so it engages with the rear lock stud. Make sure that they are the right way up, as in the illustrations, and
then insert and tighten the front fi xing screw.
2. If not already fi tted, fi t the telescopic sliding shelf supports. See “Fitting and removing the sliding shelf supports.
REMOVING THE SIDE RACKS
3. Using a small coin or a fl at-head screwdriver, loosen and remove the front fi xing screw only.
4. Slide the side rack clear of the rear lock stud and remove.

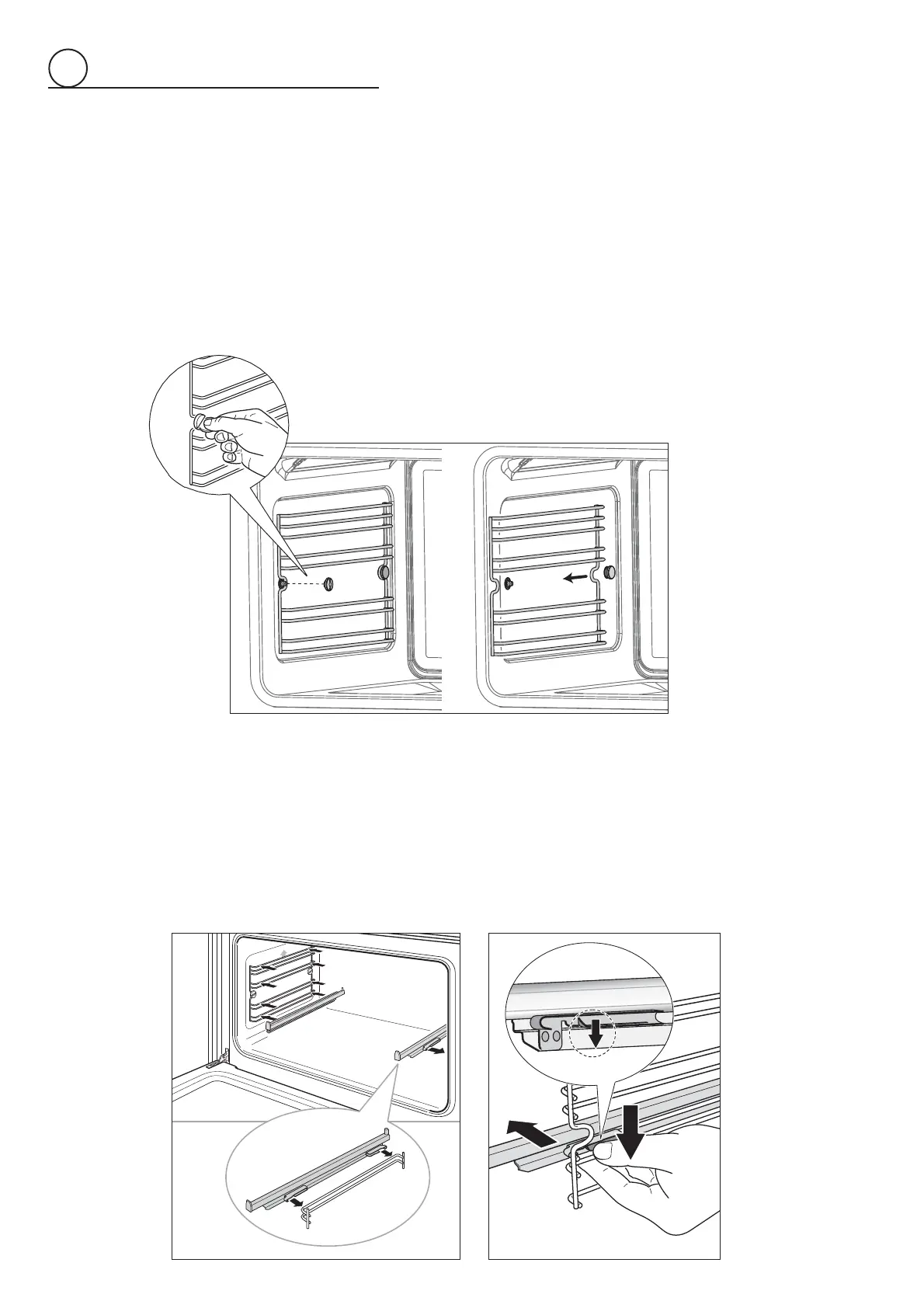

Fig. 6.8
Fig. 6.9
Fig. 6.10
