Fisher 1061 - Page 21

Instruction Manual
D100325X012
1061 H & J Actuator
January 2016
21

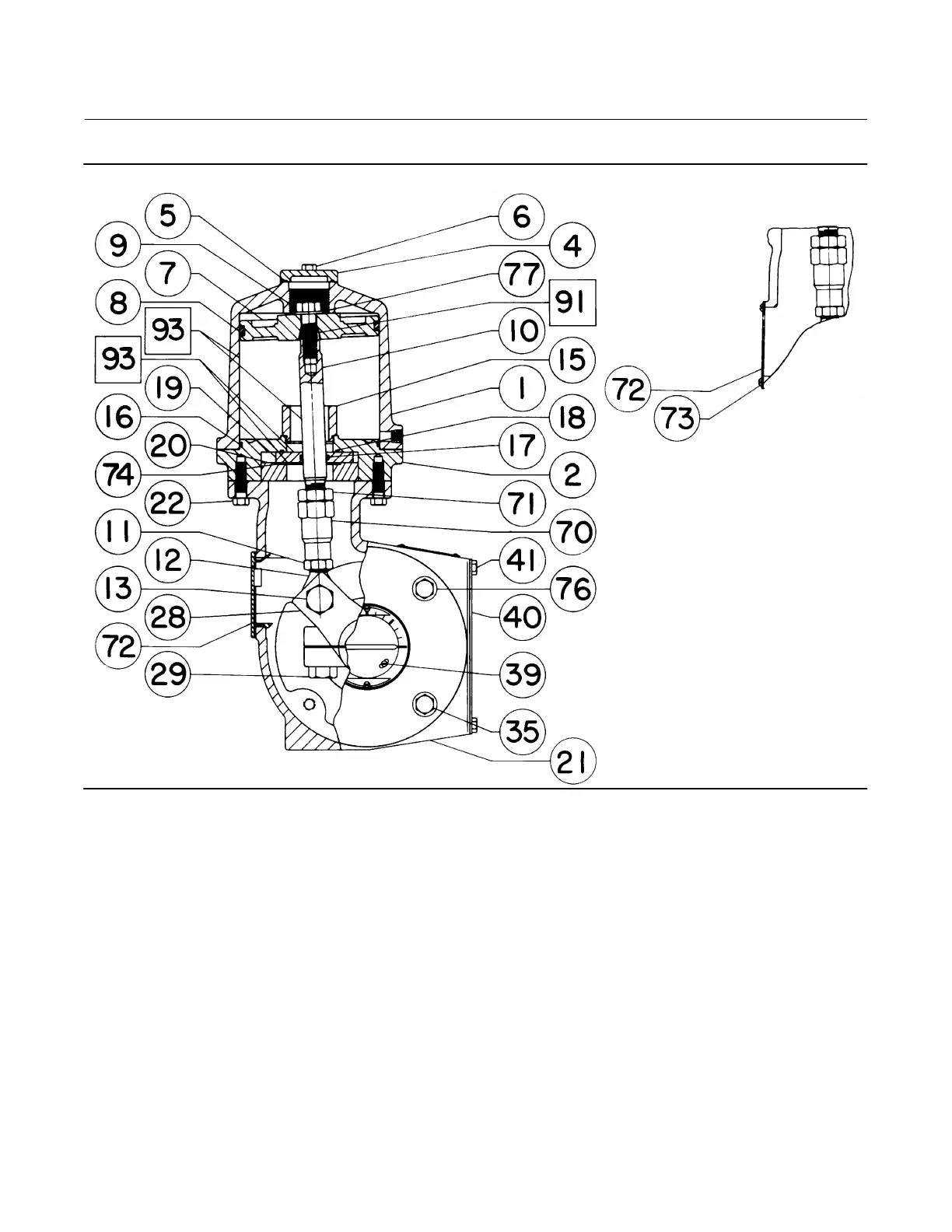

Figure 6. Fisher 1061 Actuator with Typical H and J Mounting Adaptations
52A9796‐G
59A2412‐A
B1856
NOTES:
1. KEYS 4, 5, AND 6 NOT REQUIRED FOR SIZE 60 ACTUATOR.
2. KEY 15 REQUIRED FOR 60‐DEGREE ROTATION ONLY.
3. KEY 91 ‐ APPLY ANTI‐SEIZE SEALANT.
4. KEY 92 ‐ APPLY THREAD LOCKING ADHESIVE (MEDIUM
STRENGTH).
5. KEY 93 ‐ APPLY LITHIUM GREASE.
STEEL ACCESS PLATE (KEY 72) USED
ON ALUMINUM HOUSING CONSTRUCTIONS
