SETTING UP
The CZ-3D comes to you just about ready to use. Take a look at the
diagram above and familiarize yourself with the parts of the CZ-3D
before proceeding.
1. Unpack your new CZ-3D carefully. Save the carton
and inserts for future storage or shipment.
2. Take a look inside the locknut on the upper stem.
Note the clear plastic locking pad on the left hand
side and loosen the lock nut by rotating it fully
counterclockwise.
3. Slip the lower stem into the center section.
4. Adjust the stem length (using the guide pin & stem
lock nut) and the coil angle (using the nylon wing
nut) so the search coil rests flat on the ground about
6 inches in front of, and slightly to the right of your
right foot, (to the left of your left foot for left handers).
Your arm should be straight and relaxed, with the
grip held loosely.
REMEMBER: The longer the shaft, the more you will
have to bend your elbow and the sooner your arm
will get tired. The CZ-3D is balanced for comfortable
searching in a tight semicircle around the front of the
operator.

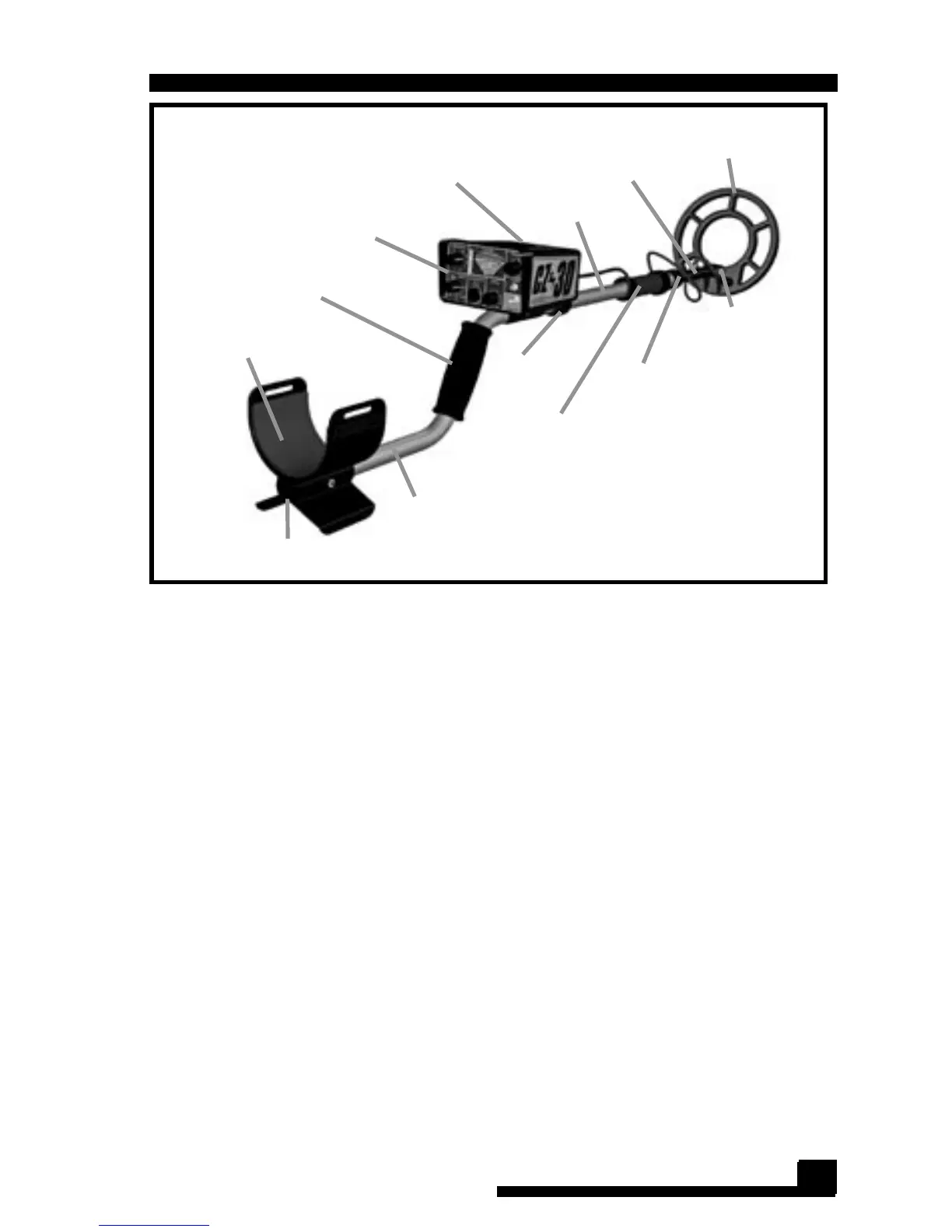

Drop-in battery compartments
and cable connector at rear of
housing(not shown)
Removable control
housing (belt loop on
underside of housing)
Padded arm rest
Built-in detector stand
Upper stem
Foam hand grip
Upper
lock nut
Center
section
Seven foot
search coil
cable
Lower
lock nut
8-inch Spider
search coil
Adjustable
non-metallic
lower stem
Nylon wing nut
(replacable
Duro-Neoprene
bushings, not
shown)
Figure 1. FISHER CZ-3D
