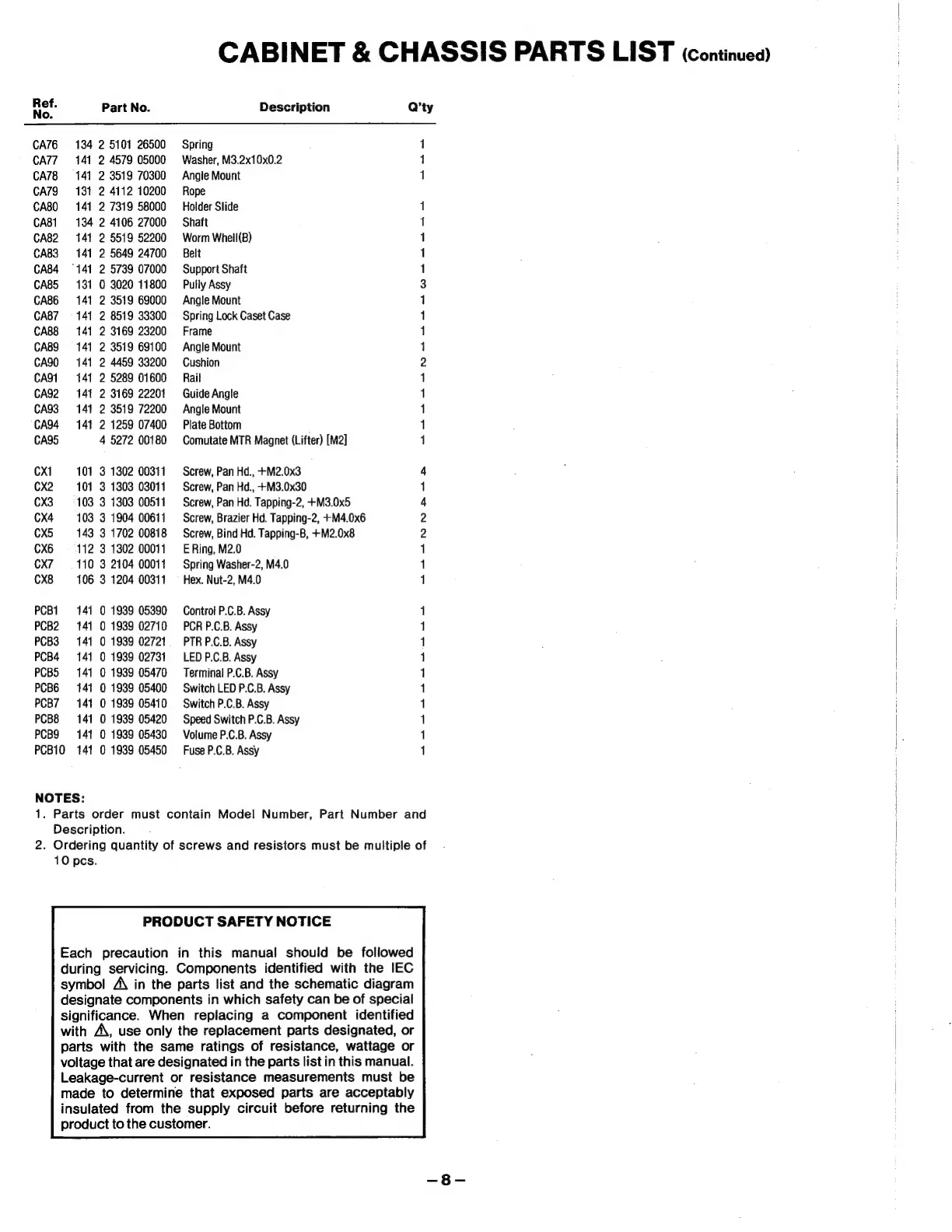

CABINET & CHASSIS PARTS LIST (continuea)
nef Part No. Description Q’ty
CA76 134 2 5101 26500 Spring
CA77 =141 2 4579 05000 Washer, M3.2x10x0.2
CA78 = 141. 2: 3519 70300 Angie Mount
CA79 =131 2 4112 10200 Rope
CA80 141 2 7319 58000 Holder Slide
CA81 134 2 4106 27000 Shaft
CA82 141 2 5519 52200 Worm Wheil(B)
CA83 141 2 5649 24700 —éBelt
CA84 141 2 5739 07000 Support Shaft
CA85 131 0 3020 11800 Pully Assy
CA86 141 2 3519 69000 Angle Mount
CA87 = 141: 2 «8519 33300 Spring Lock Caset Case
CA88 141 2 3169 23200 Frame
CA89 = 41 2 3519 69100 Angle Mount
CA90 =141 2 4459 33200 Cushion
CA91 = 141: 2: 5289 01600 _—Raail
CA92 141 2 3169 22201 Guide Angle
CA93. «141 2 3519 72200 Angle Mount
CA94 141 2 1259 07400 ‘Plate Bottom
CA95 4 5272 00180 Comutate MTR Magnet (Lifter) [M2]
cx1 101 3 1302 00311 Screw, Pan Hd., +M2.0x3
CX2 = 101 3 1303 03011 Screw, Pan Hd., +M3.0x30
CX3 =: 103 3 1303 00511 Screw, Pan Hd. Tapping-2, +M3.0x5
CX4 103 3 1904 00611 Screw, Brazier Hd. Tapping-2, +M4.0x6
CX5
143 3 1702 00818 Screw, Bind Hd. Tapping-B, +M2.0x8
CX6 =: 112 3: 1302 00011 +E Ring, M2.0
CX7 =. 110 3 2104 00011 Spring Washer-2, M4.0
CX8 =: 106 3 1204 00311 — Hex. Nut-2, M4.0
PCB1 141 0 1939 05390 Control P.C.B. Assy
PCB2 141 0 1939 02710 PCRP.C.B. Assy
PCB3 141 0 1939 02721 PTRP.C.B. Assy
PCB4 141 0 1939 02731 LED P.C.B. Assy
PCB5 141 0 1939 05470 ‘Terminal P.C.B. Assy
PCB6 141 0 1939 05400 Switch LED P.C.B. Assy
PCB7 141 0 1939 05410 Switch P.C.B. Assy
PCB8 141 0 1939 05420 Speed Switch P.C.B. Assy
PCB9 141 0 1939 05430 Volume P.C.B. Assy
PCB10 141 0 1939 05450 Fuse P.C.B. Assy
NOTES:
1. Parts order must contain Model Number, Part Number and
Description.
Seo ow onan pperon ns wer oe eo an a
-=3-42nyny R=
oa sa ss
2. Ordering quantity of screws and resistors must be multiple of
10 pcs.
PRODUCT SAFETY NOTICE
Each precaution in this manual should be followed
during servicing. Components identified with the IEC
symbol A\ in the parts list and the schematic diagram
designate components in which safety can be of special
significance. When replacing a component identified
with A\, use only the replacement parts designated, or
parts with the same ratings of resistance, wattage or
voltage that are designated in the parts list in this manual.
Leakage-current or resistance measurements must be
made to determine that exposed parts are acceptably
insulated from the supply circuit before returning the
product to the customer.
