Fisher MT-M23 - Cabinet & Chassis Parts List

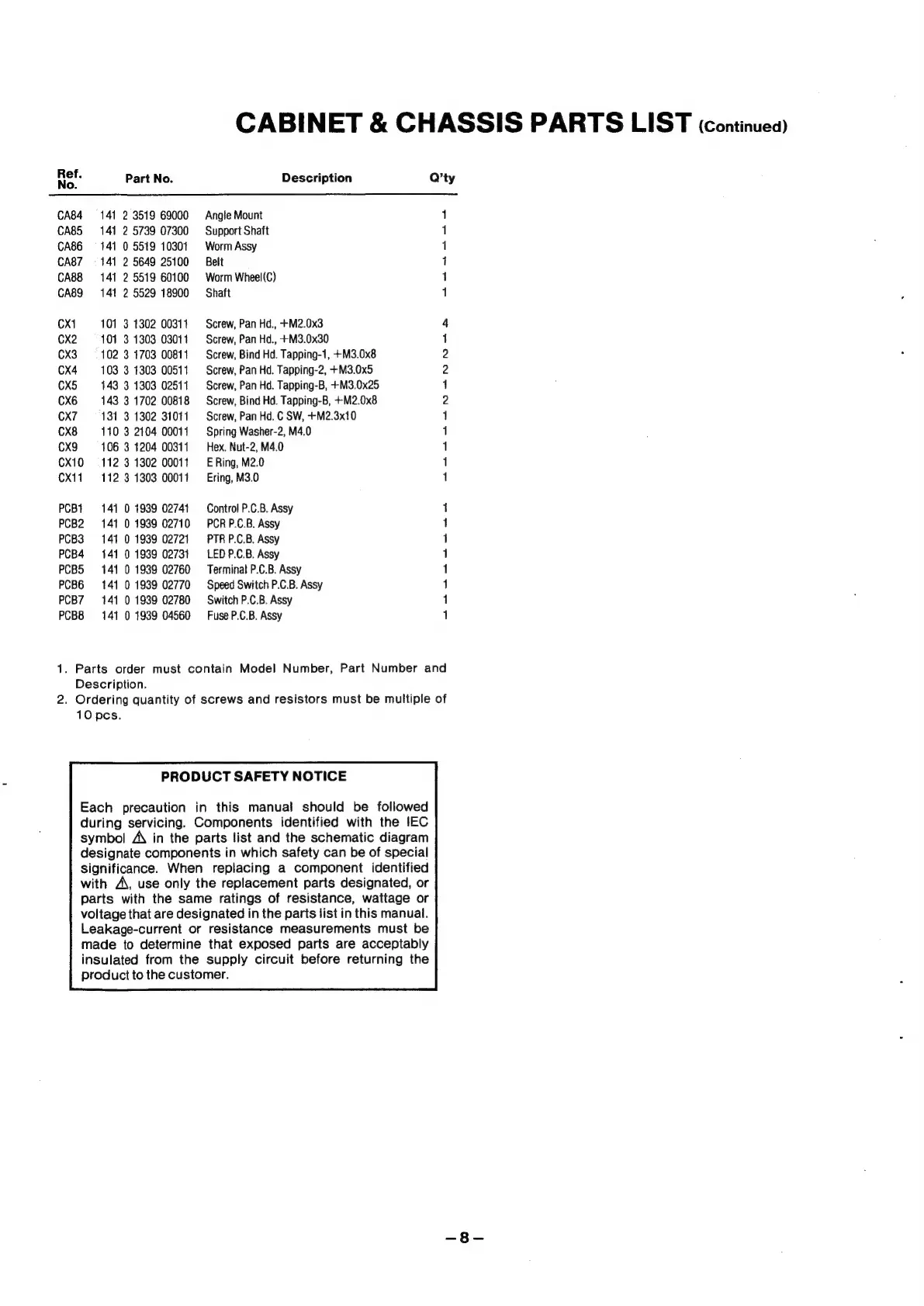

CABINET & CHASSIS PARTS LIST (continued)
Ret Part No. Description O’ty
CA84 = 141 2 3519 69000 Angle Mount 1
CA85 141 2 5739 07300 Support Shaft 1
CA86 = 141 0 5519 10301 Worm Assy 1
CA87 = 141 2 5649 25100 _—Belt 1
CA88 141 2 5519 60100 Worm Wheel(C) 1
CA89 141 2 5529 18900 Shaft 1
Cx1 101 3 1302 00311 Screw, Pan Hd., +M2.0x3 4
CX2 =: 101 3 1303 03011 Screw, Pan Hd., +M3.0x30 1
CX3 =: 102 3 1703 00811 Screw, Bind Hd. Tapping-1, +M3.0x8 2
CX4 = 103 3 1303 00511 Screw, Pan Hd. Tapping-2, +M3.0x5 2
CX5 143 3 1303 02511 Screw, Pan Hd. Tapping-B, +M3.0x25 1
CXx6 143 3 1702 00818 Screw, Bind Hd. Tapping-B, +M2.0x8 2
CX7 —s- 131. 3: 1302 31011 Screw, Pan Hd. C SW, +M2.3x10 4
CX8 =110 3 2104 00011 Spring Washer-2, M4.0 1
CX9 = 106 3 1204 00311 Hex. Nut-2, M4.0 1
CX10 = 112 3 1302 00011 E Ring, M2.0 1
CX11. 112 3 1303 00011 —_Ering, M3.0 1
PCB1 141 0 1939 02741 Control P.C.B. Assy 1
PCB2 141 0 1939 02710 PCRP.C.B. Assy 1
PCB3 141 0 1939 02721 PTRP.C.B. Assy 1
PCB4 141 0 1939 02731 LEDP.C.B. Assy 1
PCBS 141 0 1939 02760 Terminal P.C.B. Assy 1
PCB6 141 0 1939 02770 Speed Switch P.C.B. Assy 1
PCB7 141 0 1939 02780 Switch P.C.B. Assy 1
PCBB 141 0 1939 04560 Fuse P.C.B. Assy 1
1. Parts order must contain Model Number, Part Number and
Description.
2. Ordering quantity of screws and resistors must be multiple of
10 pcs.
PRODUCT SAFETY NOTICE
Each precaution in this manual should be followed
during servicing. Components identified with the IEC
symbol A\ in the parts list and the schematic diagram
designate components in which safety can be of special
significance. When replacing a component identified
with A\, use only the replacement parts designated, or
parts with the same ratings of resistance, wattage or
voltage that are designated in the parts list in this manual.
Leakage-current or resistance measurements must be
made to determine that exposed parts are acceptably
insulated from the supply circuit before returning the
product to the customer.
