2. Clean the bridge with alcohol before mounting the elements. Remove all
rosin deposits.
Mount the Pickup
CAUTION: DO NOT PULL OR BEND THE WIRES AT THE BASES OF
THE ELEMENTS. YOU MAY DESTROY THE PICKUP!
1. Slide the pickup wire through the E-string side wing slot.

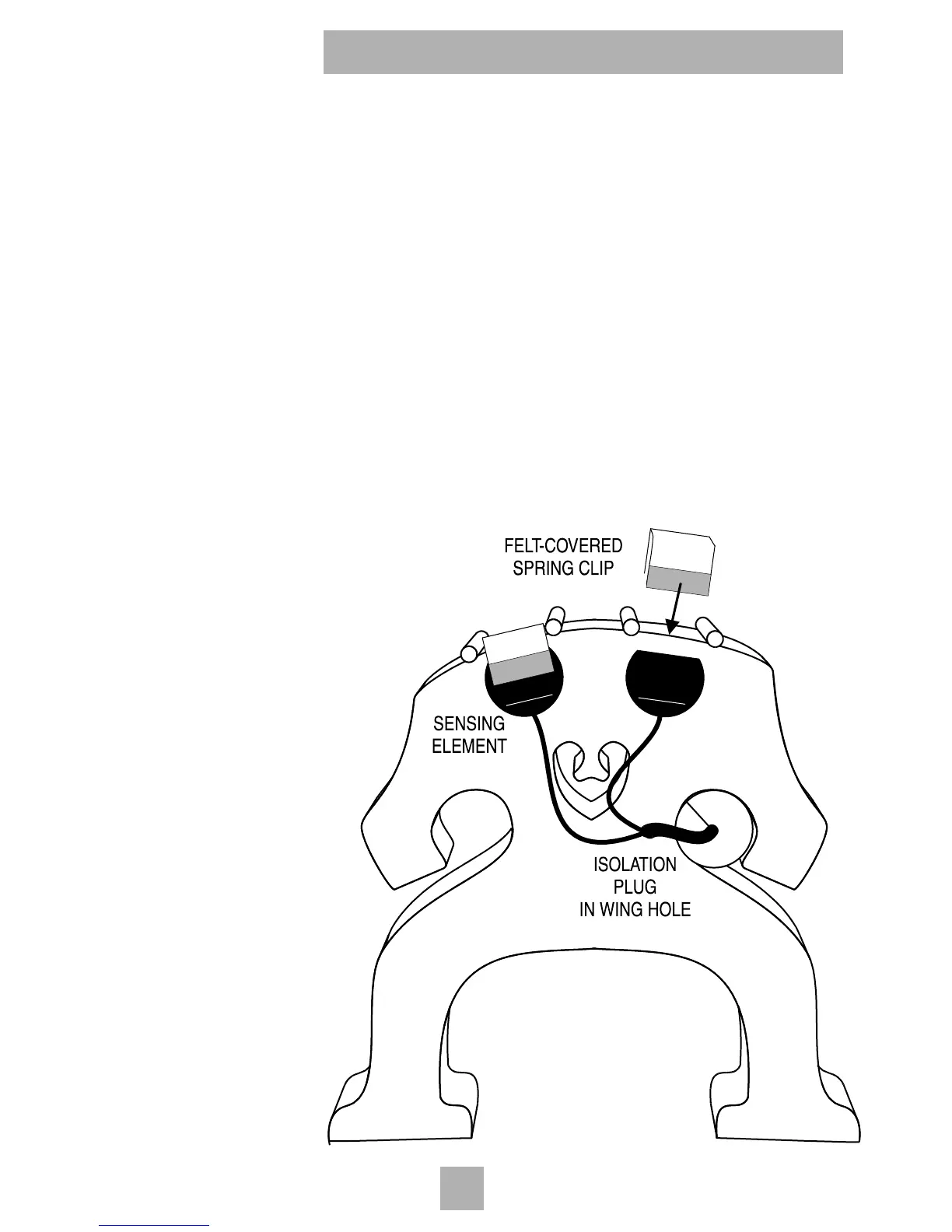

2. Mount the elements black side up on the side of the bridge that faces the
fingerboard. Center one element between the G and D strings with its
straight edge 1/8" below the top edge of the bridge. Slide a felt-covered
clip over this edge to secure the element. The clip should be pushed tightly
against the top of the bridge. A loose clip may be tightened by squeezing
it before installation.
Install the other ele-
ment in the same
fashion, centering it
between the A and E
strings. Note that if
the bridge is
beveled at the top
edge, the elements
must be mounted
below the bevel.
