Fishman ELLIPSE AURA Installation Guide

3
4. Fasten the pickup wires to the terminal
block on the preamp module (fi gure 2). The signal
wire goes to the terminal marked “IN,” and the
shield wire goes to the “GND” terminal. Tighten the
screws on the terminal block to secure the wires.
5. Fasten the preamp
If the mounting bracket it is not already attached
to the preamp, snap it in place now. Peel back the
release fi lm on the bottom of the mounting bracket
and fasten the preamp to the underside of the
soundhole. Apply even, steady pressure to the
preamp to set the adhesive. The adhesive gains
maximum hold after 24 hours.
6. Option: Separate the preamp from the
mounting bracket
Once the preamp is installed, you may separate it
from the mounting bracket for better access inside
the guitar. You’ll need a heavy guitar pick to sepa-
rate the two. Lodge the pick between the preamp
and mounting bracket (fi gure 3) and twist until the
preamp snaps away. Swing the preamp toward the
soundhole, then separate it from the mounting
bracket (fi gure 4).
7. Secure the wires inside the instrument with
the supplied adhesive-backed clips (fi gure 1). Clean
the area where you will mount the clips with mineral
spirits. Let the area dry before continuing.
8. Battery bag
Install the battery bag on or near the neck block.
1. Clean the area where you will mount the bag with
mineral spirits. Let the area dry before continuing.
2. Peel off the plastic fi lm from the Velcro patch and
attach the bag at the chosen location.
3. Carefully separate the bag from the Velcro patch.
To set the adhesive, burnish the entire area of the
patch, especially the edges.
4. Install a 9V alkaline or lithium battery. Tuck the
battery into the bag and re-attach to the Velcro
patch. The adhesive under the Velcro patch requires
24 hours to achieve a full bond, so take care to not
stress the adhesive if you remove the battery bag
after the initial installation.

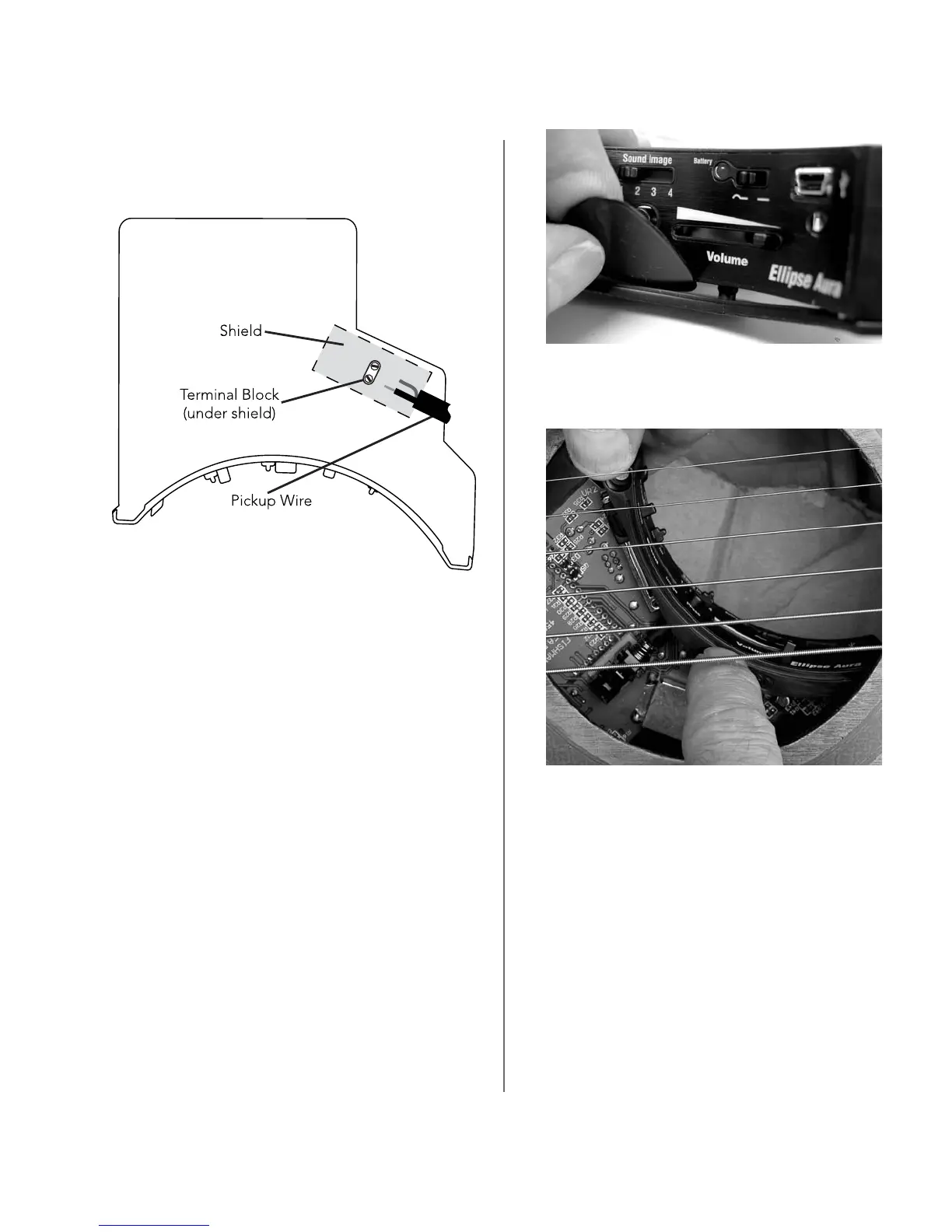

Figure 4. Release right side magnet
Figure 3. Separate preamp
from bracket
IN GND
Figure 2. Fasten the pickup wires
