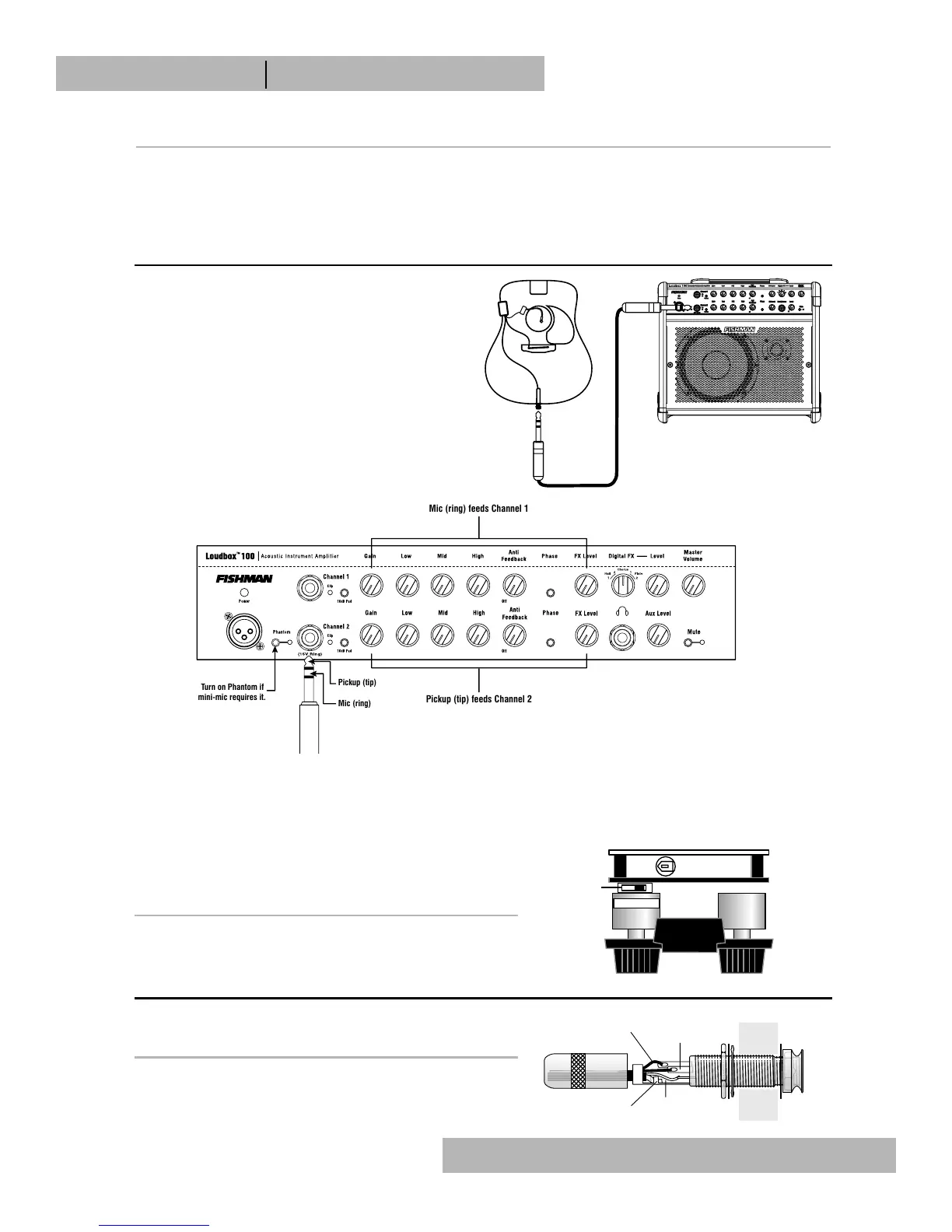

1) Plug in a stereo (TRS) instrument cable
between your guitar and the Channel 2, 1/4-inch
input.
2) Pickup (tip) is routed to Channel 2 and Mic
(ring) is routed to Channel 1.
3) Turn on phantom power if mini-mic requires it.
12
Stereo Blending
If your instrument has two signal sources (typically mini-mic and pickup) and stereo output, you may
route these signals into separate channels of the amp and blend them independently for your own
custom mixes.
MONO / STEREO
Mono / Stereo
Switch
Prefix Premium Blend
& Prefix Stereo Blender
Open battery compartment and move switch to “stereo.”
Shield to
Sleeve
Pickup Signal
(white) to Tip
Negative Battery Wire
(red) to Switch
Microphone Signal
(black) to Ring
Below are setup instructions for two common Fishman products with stereo blending capability. For
other products, follow the manufacturer’s instructions for setup.
Rare Earth Blend
1) Rewire jack for stereo operation
2) Move thumbwheel on pickup toward treble strings.
Acoustic Instrument Amplifier
Loudbox 100
TM
To Next Page
