Rear Panel
1. AC power
Operate the amplifi er only at the voltage indicated on the rear panel.
For 120V amplifi ers purchased in the USA, Canada and Mexico, plug in the
supplied detachable AC power cable.
For 100V and 230V amplifi ers purchased outside the USA and Canada, you will
need to supply your own detachable AC cable. This cable must have an IEC-
style 320 connector at one end, and a male AC plug appropriate for your region
at the other.
Disconnect device is AC inlet or power switch.
2. Power switch
Lower the Master Volume before you turn on the amp. Flip the power switch to
the up position.
3 & 4. Aux Input - 1/4” & 1/8”
Plug in a line level stereo audio source such as a CD or MP3 player in this input.
Both inputs may be used at the same time. They are stereo (TRS) inputs, however
the left and right signals are mixed to mono.
5. Mix D.I. (Post)
Plug in here when you wish to send signals from both Channel 1 and 2 to a
mixing console or a slave amplifi er. This post-EQ output is always ground
isolated to prevent ground loop hum.

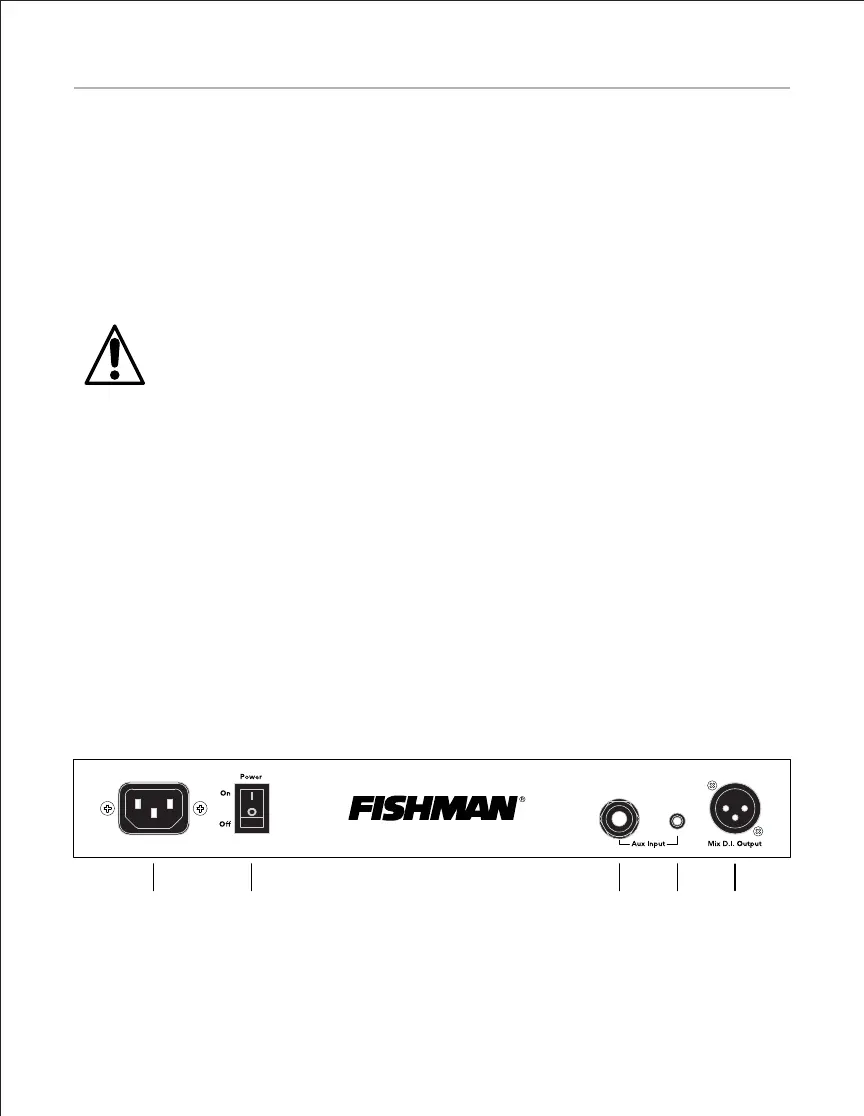

12 345
