Fishman TRIPLEPLAY FC-1 User Manual

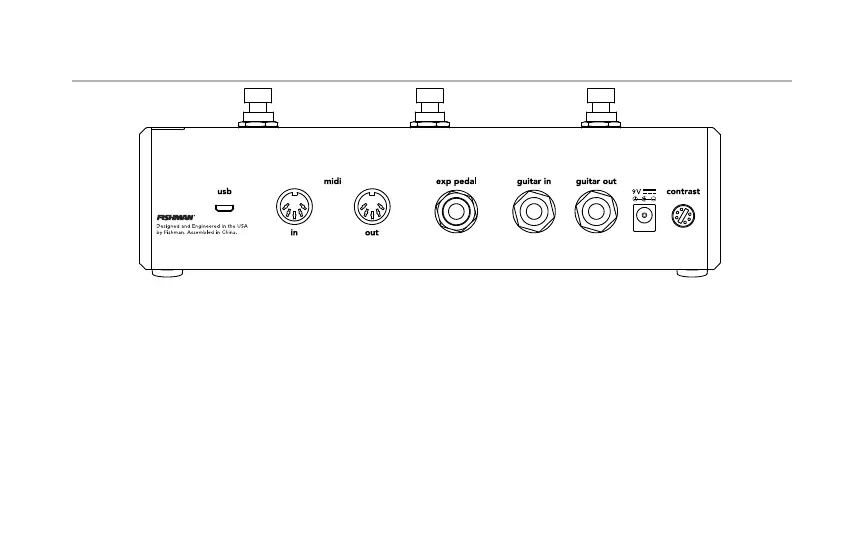

Rear Panel
USB – Connect to a computer to utilize FC-1 as a DAW controller and USB MIDI interface.
MIDI In / Out – Serves as a class compliant USB interface when connected to a computer via USB.
When using FC-1 as a stand-alone MIDI controller (not connected via USB), MIDI information gener-
ated by the TriplePlay Controller and the FC-1 is passed via these connectors.
Exp Pedal – Connect a common expression pedal here to utilize real-time control over TriplePlay
hardware patches.
Guitar In / Out – This relay-switched interface allows you to mute a guitar connected through
these two jacks when the TriplePlay Controller’s switch is set to “Synth.”
9V – Power to the FC-1 is supplied using only the included 9VDC Fishman power adapter.
Contrast – Set the LCD contrast here.
5
