TriplePlay Hardware Installation Quick Start (continued)
Mounting the TriplePlay hex-pickup:
Guitars with a Tune-O-Matic Bridge require an additional procedure before attaching the
hex-pickup. For all other bridge types, refer to the Vibrato Bridge Guitar Setup procedure.

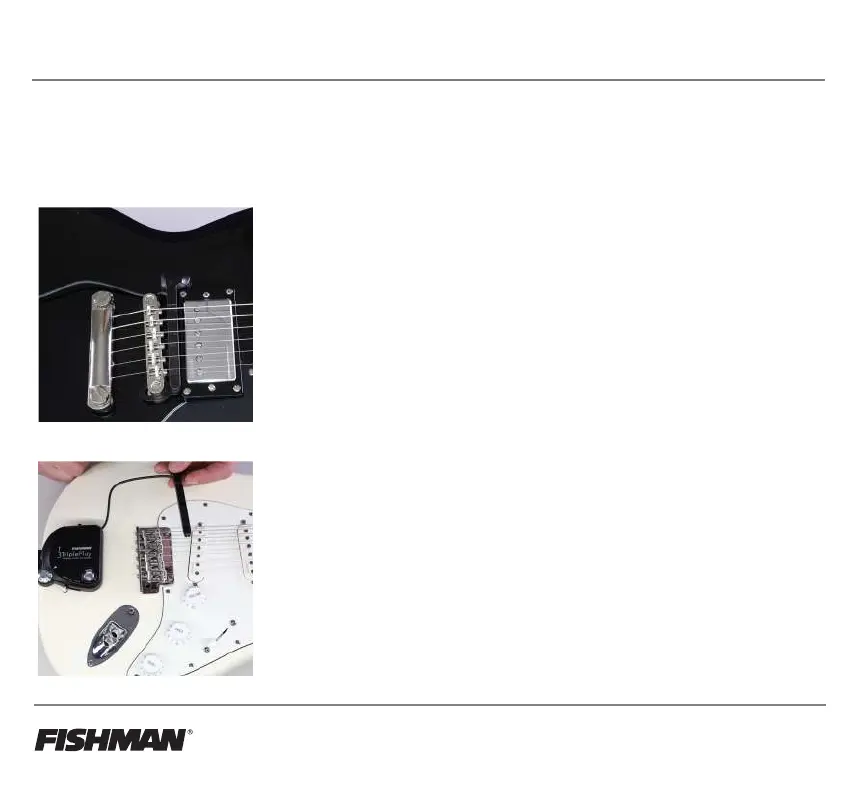

Vibrato Bridge Guitar Setup: (Strat** type bridge)
The hex-pickup attaches to your guitar by snapping into one of
four supplied Pickup Mounts. This adhesive-backed Pickup
Mount will be placed on your guitar between the bridge and the
bridge pickup, as close to the bridge as possible. Each Pickup
Mount has a different thickness to accommodate a wide range
of string-heights. The pickup easily snaps into and out of the
Pickup Mount, which remains affixed to your guitar.
See section - ‘Mounting the hex-pickup on your guitar’
Tune-O-Matic Bridge Guitar Setup: (Les Paul* type bridge)
On guitars with Tune-O-Matic bridges, you must first prepare a
Tune-O-Matic Bridge Bracket. This bracket sits between the main
bridge assembly and the supporting bridge mount posts. You will
need to remove the strings on your guitar to install the bridge
bracket. Once the bracket is in-place, the hex-pickup will be
installed on top of the bracket.
See section - ‘Preparing a Tune-O-Matic Bridge Bracket’
