The Fishmaster Pro Series T-Top is an innovative design in the T-Top
market that uses common parts and design elements that make it
affordable, functional and easy to install. The two main components of

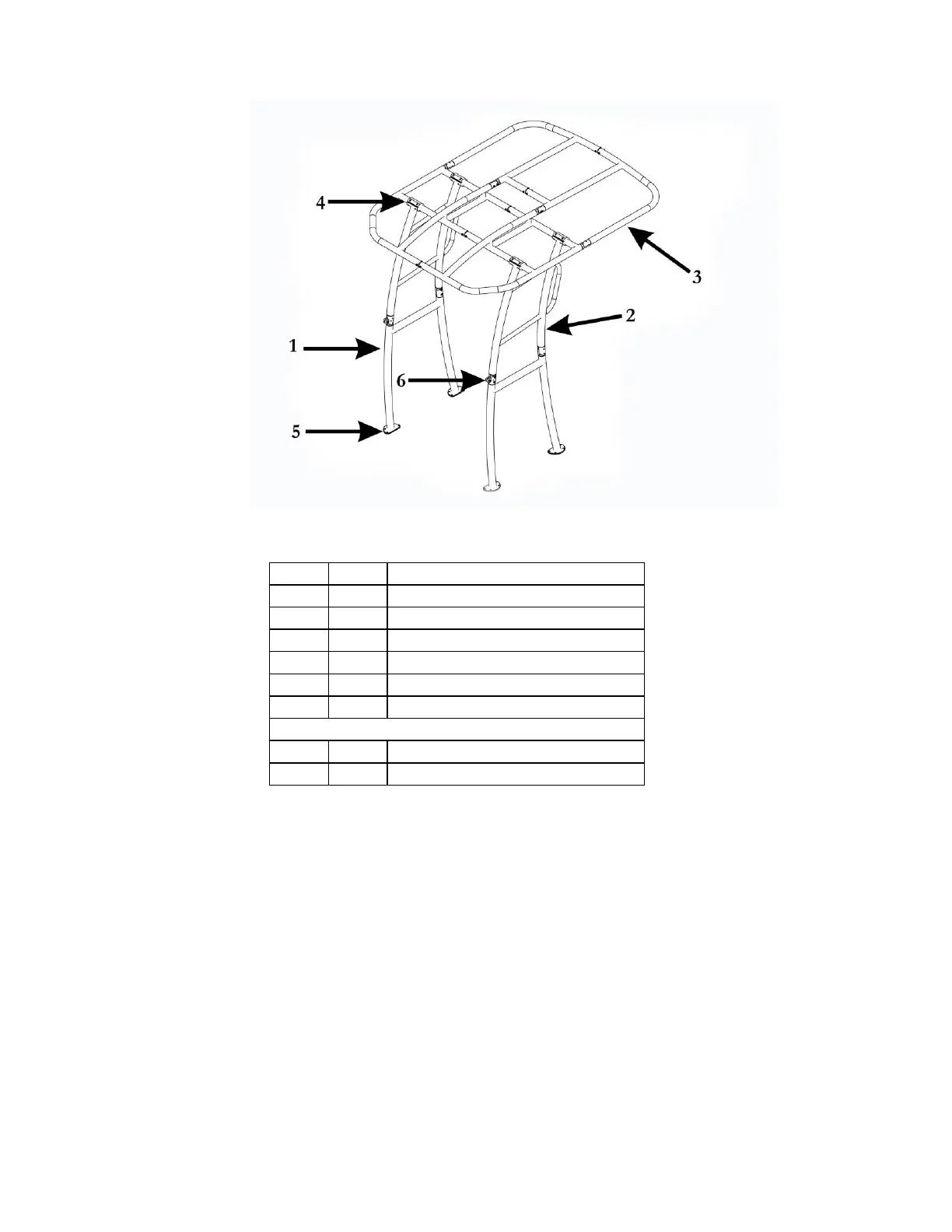

the design as shown above are the side legs and the upper frame. The
side legs are mirror images to provide right and left legs. These are
hinged in the center to allow the T-Top to fold forward. The canopy frame
has four sections. The two front sections attach to the legs by the upper
leg clamps. The two rear sections attach to the front sections at the
canopy frame hinge as shown in the above assembly drawing. The
canopy frame hinge allows the canopy frame to fold for storage.
