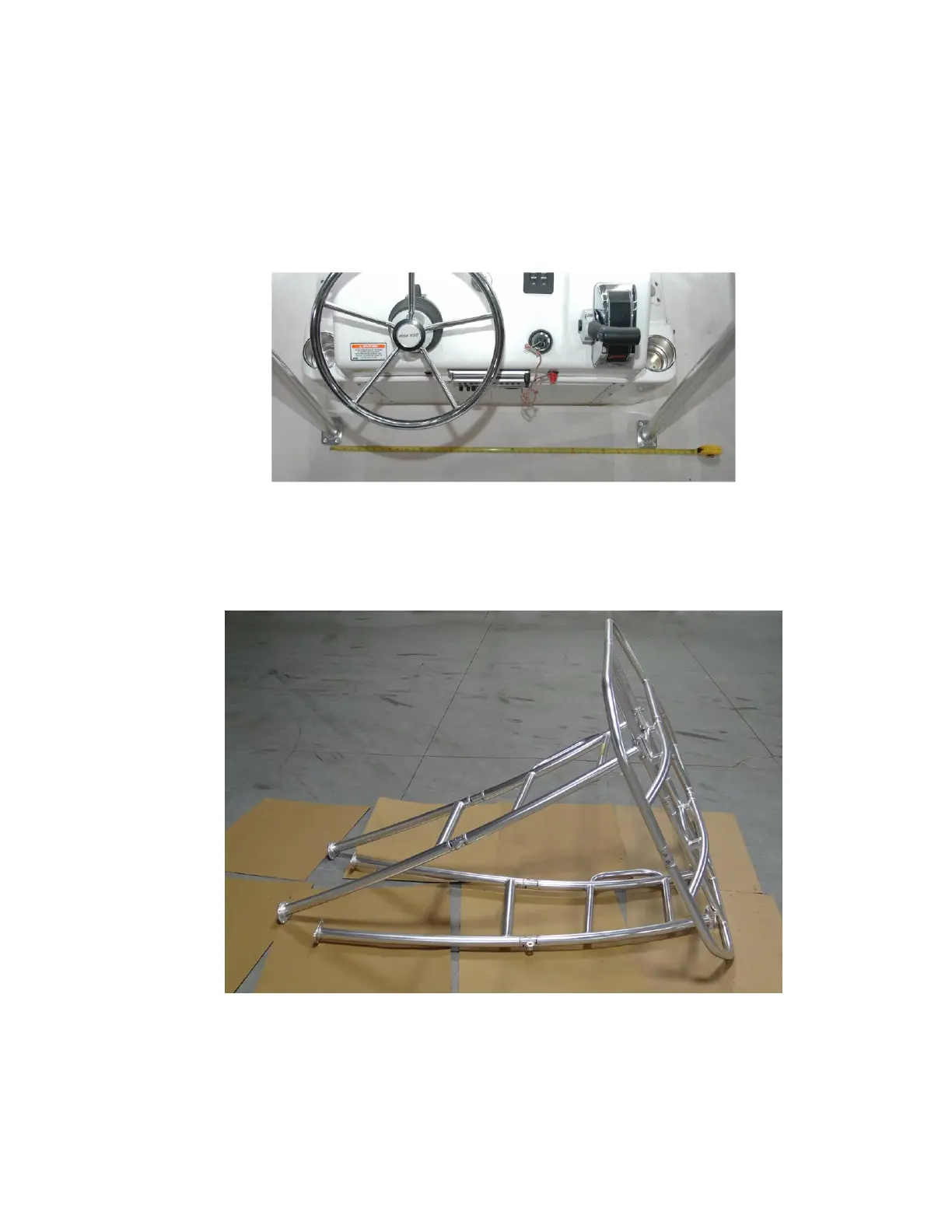

Attach Legs to Top Section at Estimated Width: This can be most easily done on the
ground and will require four people to move the T-Top into the boat. Measure the approximate
width of where you will install the T-Top over your center console. This does not need to be
exact and will be adjusted when you move the T-Top to the boat. Be sure the legs are wide
enough to fit around the console when placed in the boat as shown below.
TIP: Once the Canopy Frame is assembled attached one leg
first as shown below, then stand it up and attach the other
leg as shown below. A second person will be needed.
Move the T-Top to the Boat: It is easiest to have two people on the ground transfer the T-
Top in the vertical position to two people in the boat. With only two people one can lift the
canopy frame and the second can lift at the base of the legs to transfer to the boat in the
horizontal position with one leg on the side of the boat.
