FlaktWoods STOF - Vertical Discharge Dimensions and Weights

Roof Fan STOF Installation and Maintenance
6
Fläkt Woods 9734 GB 2015.06.30 Specifications are subject to alteration without notice
SIZE 190 ONLY
SIZES 225 TO 630

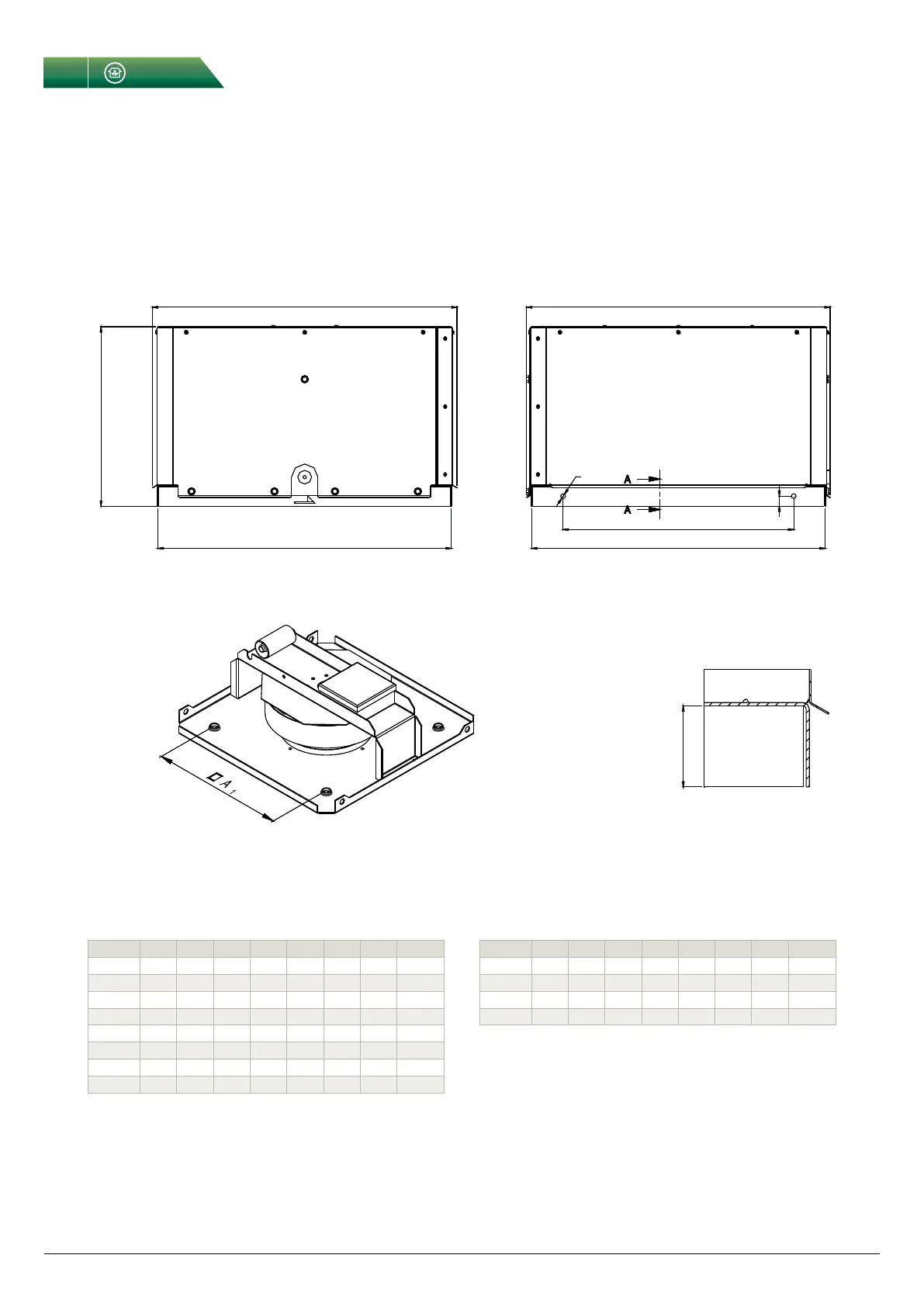

Figure 4.
H
W in
L in
A
Ø9
19
W out L out
A
A
A-A
38.5
3.4 DIMENSIONS
UNINSULATED VERTICAL VERSION
Fan size A A
1
H L
in
L
out
W
in
W
out
Weight
190 – 245 130 – 358 – 348 8
225 328 – 226 447 467 447 469 10
310 328 – 306 447 467 447 469 16
355 438 – 341 557 577 557 579 22
400 508 – 351 627 647 627 649 27
450 598 – 382 717 737 717 739 36
500 778 – 461 897 917 897 919 56
630 998 – 520 1117 1137 1117 1139 82
INSULATED VERTICAL VERSION
Fan size A A
1
H L
in
L
out
W
in
W
out
Weight
225 328 – 505 447 465 447 500 24
310 328 – 505 447 465 447 500 24
355 438 – 555 557 570 557 610 36
400 508 – 606 630 644 630 675 38
3. TECHNICAL SPECIFICATION, CONT.
