FlaktWoods STOF - Horizontal Discharge Dimensions

Installation and Maintenance Roof Fan STOF
7
Fläkt Woods 9734 GB 2015.06.30 Specifications are subject to alteration without notice
SIZE 190 ONLY
SIZES 225 TO 630

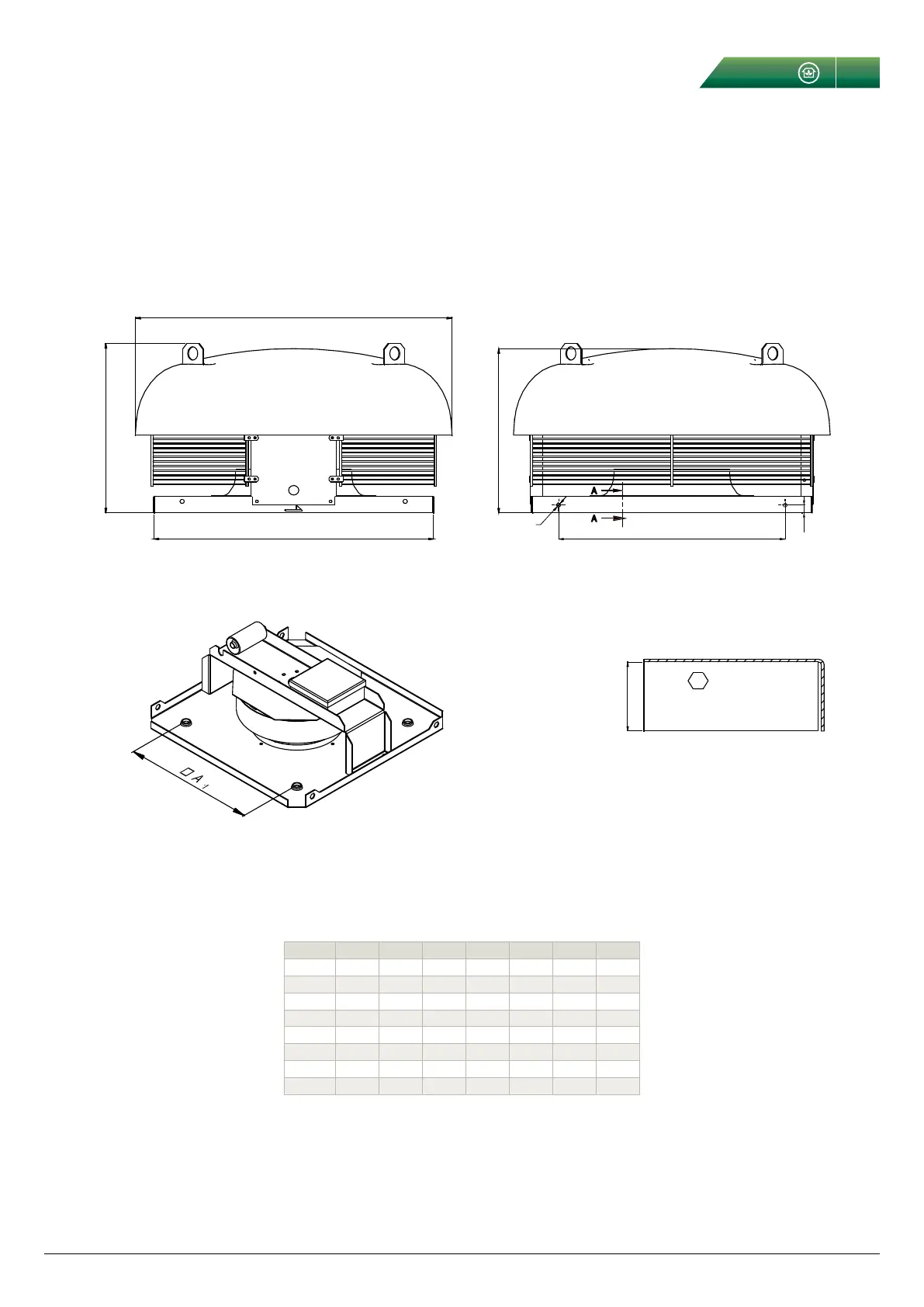

Figure 5.
H out

W out

W in
A
Ø9
19
A
A
A-A
38.5
H
3.4 DIMENSIONS
HORISONTAL VERSION
Fan size A A
1
H W
in
W
out
H
out
Weight
190 – 245 216 345 480 – 7
225 328 – 261 447 480 – 10
310 328 – 340 447 480 – 14
355 438 – 383 557 600 – 18
400 508 – 398 627 710 411 24
450 598 – 433 717 820 441 32
500 778 – 527 897 1030 540 53
630 998 – 595 1117 1300 597 76
3. TECHNICAL SPECIFICATION, CONT.
