M-K Compressor Expansion Automat
Installation and operating instructions
Confi guration (continued)
1 Type plate.
2 Steel expansion vessel,
exterior corrosion protection,
untreated internally (inner coating ***).
3 Inspection opening.
4 Inspection opening DN 500,
M-K/S 6500 – 10000 litres.
5 Lifting lugs (for lifting).
6 Collision protection.
(gas compartment connections).
7 Foot-height adjustment.
8 Foot pressure plate, M-K/S 5000 – 10000 litres.
9 Setting screw (transport guard,
level sensor, disassembly).
10 Manual breather valve.
11 Cap nut (collision protection of
manual breathervalve ).
12 Floatvent **.
13 Quick-release coupling, coupling box.
14 Pressure hose, fl exible, coupling plug
double-sided, length 3000 mm [**].
15 Pressure hose, fl exible, expansion.
16 Pressure hose, fl exible, pressure sensor.
17 Pressure hose, fl exible, safety valve,
M-K 400 – 3500 litres.
18 Pressure hose, fl exible, pressure increase 1; 2** )k*.
19 Pressure hose, fl exible, system connector,
M-K/U, M-K/S 400 – 10000 litres.
20 System connector, M-K,
90° angle, 400 – 3500 litres.
21 System connector, M-K/U; M-K/S.
22 Connector module, expansion;
Safety valve, gas compartment;
Expansion valve 1 (1.1; 1.2 ***)
Relief valve 2; 2.1** )k*;
Gas escape fuse 1; 2** )k*;
Pressure connector, expansion:
Pressure connector,
pressure increase 1; 2** )k*.
23 Connector module, expansion***;
Safety valve, gas compartment;
Expansion valve 1;
Pressure increase valve;
Gas escape fuse;
35 Ball cock, condensate drain cock.
36 Flexcon control unit, M-K/S, page 19.
37 SDS controller, M-K/U, page 19.
38 SDS Directstart power part ***;
1 (2); page 19.
39 Electrical feed, compressor1; 2** )k*.
40 Electrical feed, SDS controller ***.
41 Signal wire, pressure sensor (<=30vDC;
42 Pressure sensor SELV).
43 Signal wire, level sensor (<=30VDC;
44 Level sensor SELV).
45 Diaphragm rupture sensor, feed ** (SELV).
46 Transport guard, level sensor.
47 Water compartment (expansion water).
48 Diaphragm (butyl).
49 Gas compartment.
)k* Second compressor unit
M-K/S
:Basic vessel
(Pos.36)
M-K/U:Basic vessel
(Pos.37)
M-K:Ancillary vessel
SM:Single mode
PM:Parallel mode
BM:Backup mode
LM:Load dependant mode
SEL
V:Safety extra-low
voltage
PE- connector
(protective earth)
Pressure connector, expansion:
Pressure connector, pressure increase.
24 Safety valve, gas compartment.
25 Compressor unit K01 – K03, oil-free.
26 Second compressor unit
K01 – K03, oil-free; **.
27 Compressor unit K04, oil-free.
28 Second compressor K04, oil-free; **.
29 Compressor unit L6 – L14
(K420), 1 (2), oil-free; **.
30 Switch, TP- manual reset.
31 Intake opening, compressor.
32 Cool-air inlet, compressor.
33 Ball cock, vessel drainage ***.
34 Ball cock, system connector ***.
** Accessory, addition *** Special version
1
2
4
22
3
5
5
6
6
7
8
9
11
12 **
13
13
24

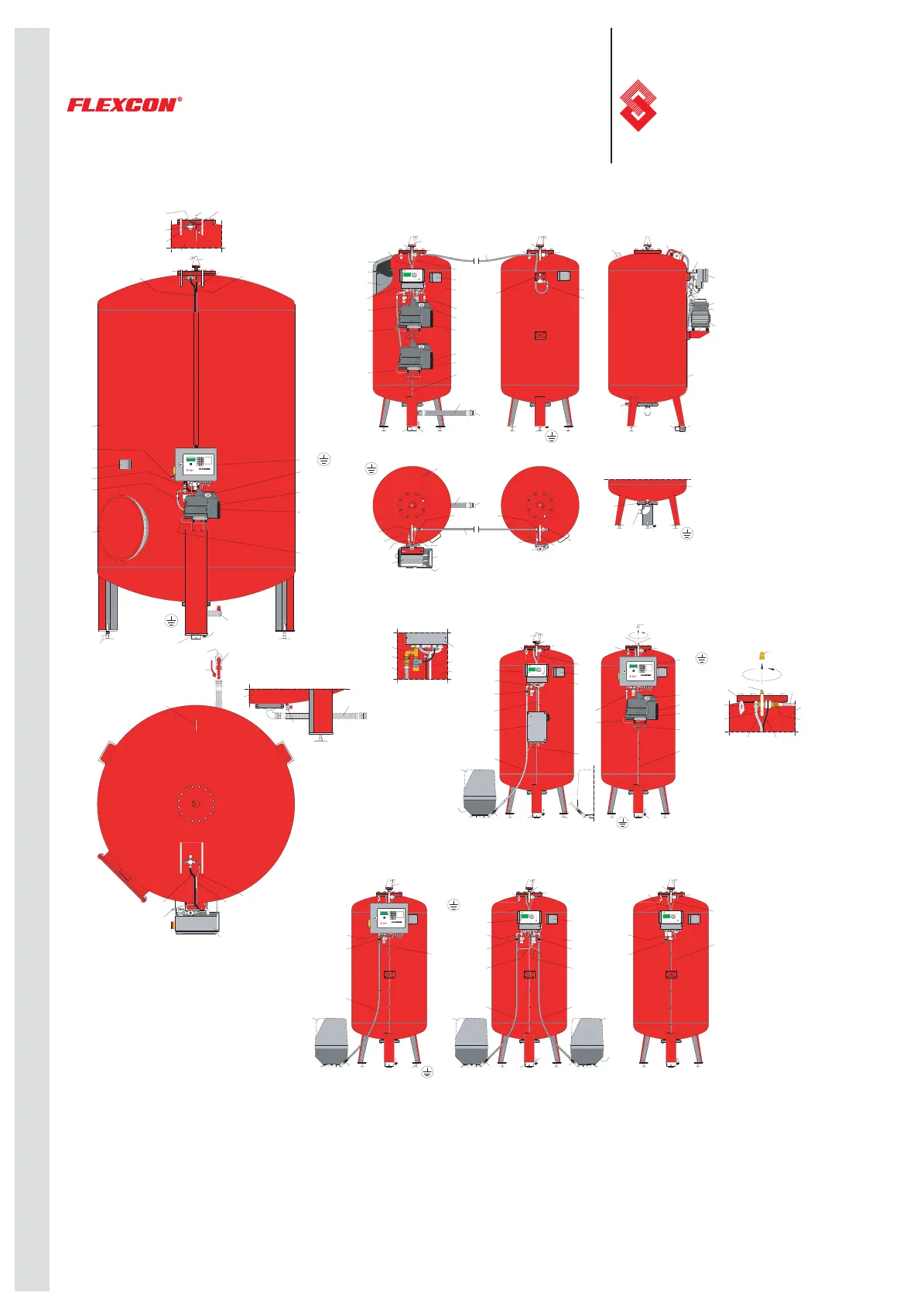

Example illustrations
