FlashLogic FLRSCH5 - Page 6

NOTE 1 NOTE 2
3
6 4
1
2
5
4 2
3
6 4
1
2
5
6 2
WHITE/RED
WHITE/GREEN
WHITE/RED
WHITE/GREEN
STEP 1:
-REMOVE THE WHITE/GREEN WIRE FROM THE BLUE CONNECTOR CAREFULLY.
-USE A UTILITY KNIFE TO PUSH GENTLY AGAINST THE LOCKING TAB.
-DO NOT DAMAGE THE LOCKING TAB IN THE PROCESS.
STEP 1:
-IDENTIFY THE PINK (PIN 17) AND RED (PIN 19) WIRES FROM THE 20 PIN BLACK CONNECTOR OF THE T‐HARNESS.
-CAREFULLY STRIP THE PINK AND RED WIRES USING A WIRE STRIPPER.
-DO NOT CUT THE WIRES IN THE PROCESS.
STEP 2:
-CONNECT AND SOLDER THE WHITE/RED WIRE TO THE RED WIRE.
-CONNECT AND SOLDER THE WHITE/GREEN WIRE TO THE PINK WIRE.
STEP 2:
-USING A UTILITY KNIFE, LIFT THE LOCKING TAB CAREFULLY FOR IT TO BE RE-USED.
STEP 3:
-INSERT THE WIRE IN PIN 6 OF THE CONNECTOR, RIGHT NEXT TO WHERE IT USED TO BE.
STEP 3:
-INSULATE THE CONNECTIONS WITH ELECTRICAL TAPE.

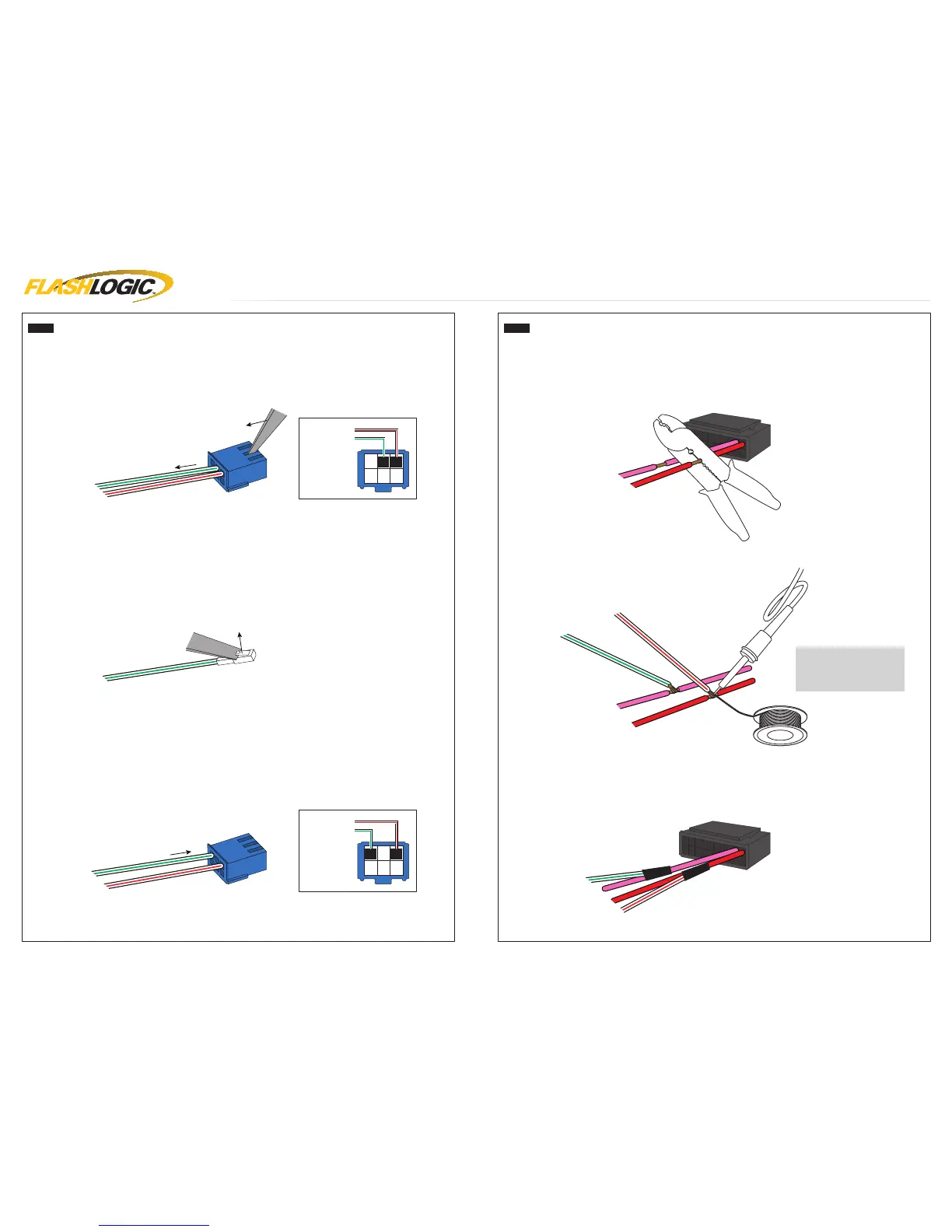

TYPE 1 - WIRING DIAGRAM - 2 OF 2
WARNING
FAILURE TO PROPERLY SOLDER
CAN RESULT IN
FAULTY CONNECTIONS AND
PRODUCT MALFUNCTION
www.flashlogic.comAutomotive Data Solutions Inc. © 2013
PAGE 6 OF 21
• 20131125
OEMCHRSCH5FLRSCH5EN
DOC.: #13103
