12.1 Suspension Eyes
(Only valid if boat is equipped with fixed release hook of Fassmer Duplex type)
Attention:
Suspension eyes have only to be used as shown with
transportation bolt! Transportation bolt also can be used for
towing line or as mooring cleat.
max. diameter for long link:
m
a
x
.
1
5
°
f
o
r
t
r
a
n
s
p
o
r
t
a
t
i
o
n
refer to hoisting hook manual
steel wire
steel wire
driving direction
max. 15° for
transportation
transport wire either fore or aft,
for hanging-off-pendant aft only!
transportation bolt
max. total payload: refer
to hoisting hook manual
wire eye without thimble

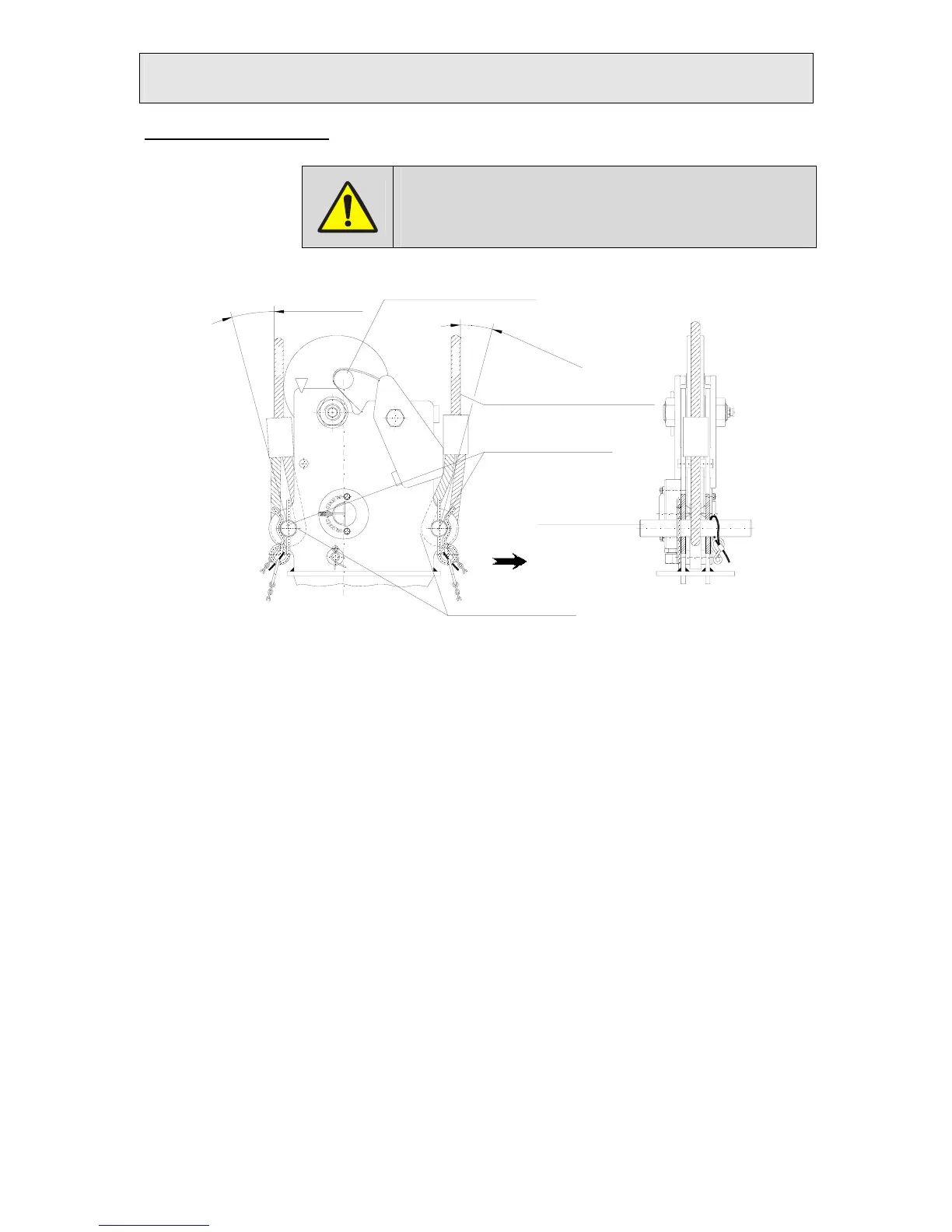

Fig. 28
