Fleck 7000SXT User Manual

Page 28

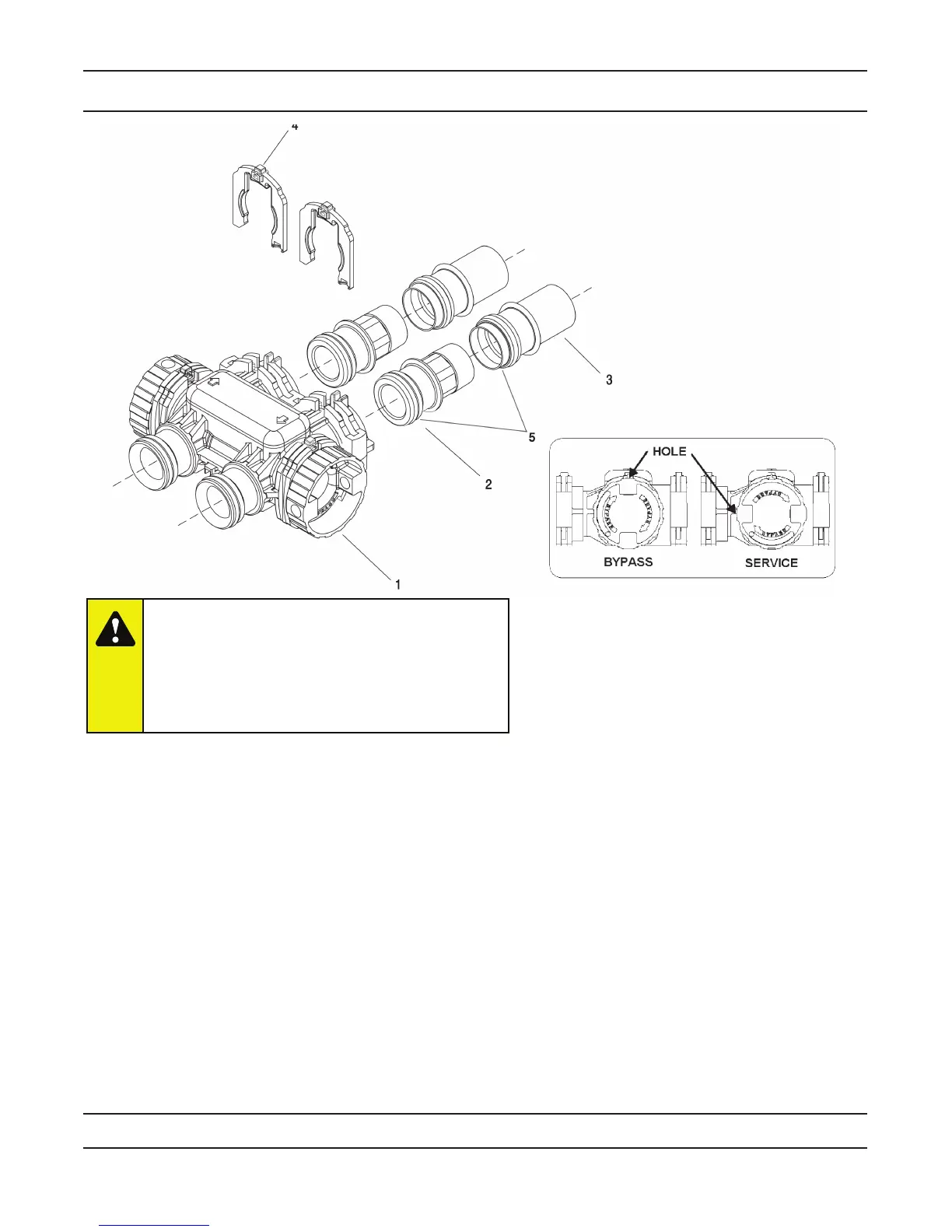

Bypass Assembly
IMPORTANT
To bypass the valve, turn bypass knob on both
sides of the valve to bypass position.
When returning to service, put the inlet into
service before the outlet.
Item No. Quantity Part No. Description
1 ..........................1 ................... 40569 .....................Bypass Assembly, 7000, Less Clip
2 ..........................2 ................... 42414-01 ................ Connector Assembly, 3/4” NPT, 7000, Plastic
2 ................... 42414-11 ................Connector Assembly, 3/4” BSP, 7000, Plastic
2 ................... 61561 .....................Connector Assembly, 1” NPT, 7000, Brass
2 ................... 61561-10 ................Connector Assembly, 1” BSP, 7000, Brass
2 ................... 40563-01 ................Connector Assembly, 1” NPT, 7000, Plastic
2 ................... 40563-11 ................Connector Assembly, 1” BSP, 7000, Plastic
2 ................... 40565-01 ................Connector Assembly, 1-1/4”, NPT, 7000, Plastic
2 ................... 40565-11 ................Connector Assembly, 1-1/4” BSP. 7000, Plastic
2 ................... 61562 .....................Connector Assembly, 1-1/2” NPT, 7000, Brass
2 ................... 61562-10 ................ Connector Assembly, 1-1/2” BSP, 7000, Brass
2 ................... 42241-01 ................ Connector Assembly, 1-1/2” NPT, 7000, Plastic
2 ................... 42241-11 ................Connector Assembly, 1-1/2” BSP, 7000, Plastic
3 ..........................2 ................... 61626 .....................Connector Assembly, 3/4” and 1” Sweat, 7000
2 ................... 41242-01 ................ Connector Assembly, 1” and 1-1/4”, Sweat, 7000
2 ................... 41243-01 ................ Connector Assembly, 1-1/4” and 1-1/2”, Sweat, 7000
4 ..........................2 40576 .....................Clip, H, Plastic, 7000
5 ..........................1 ................... 40951 .....................O-ring, -220
Not Shown ..........1 ................... 61462 .....................By-Pass Service Kit, 7000 (Includes all internal parts for
7000 bypass assembly - bypass body not included)
41118_REVA
41147_REVA
