Page 33
Removing Gear Box
Assembly
1.
Unplug the power source.
2.
With 3/8” nut driver

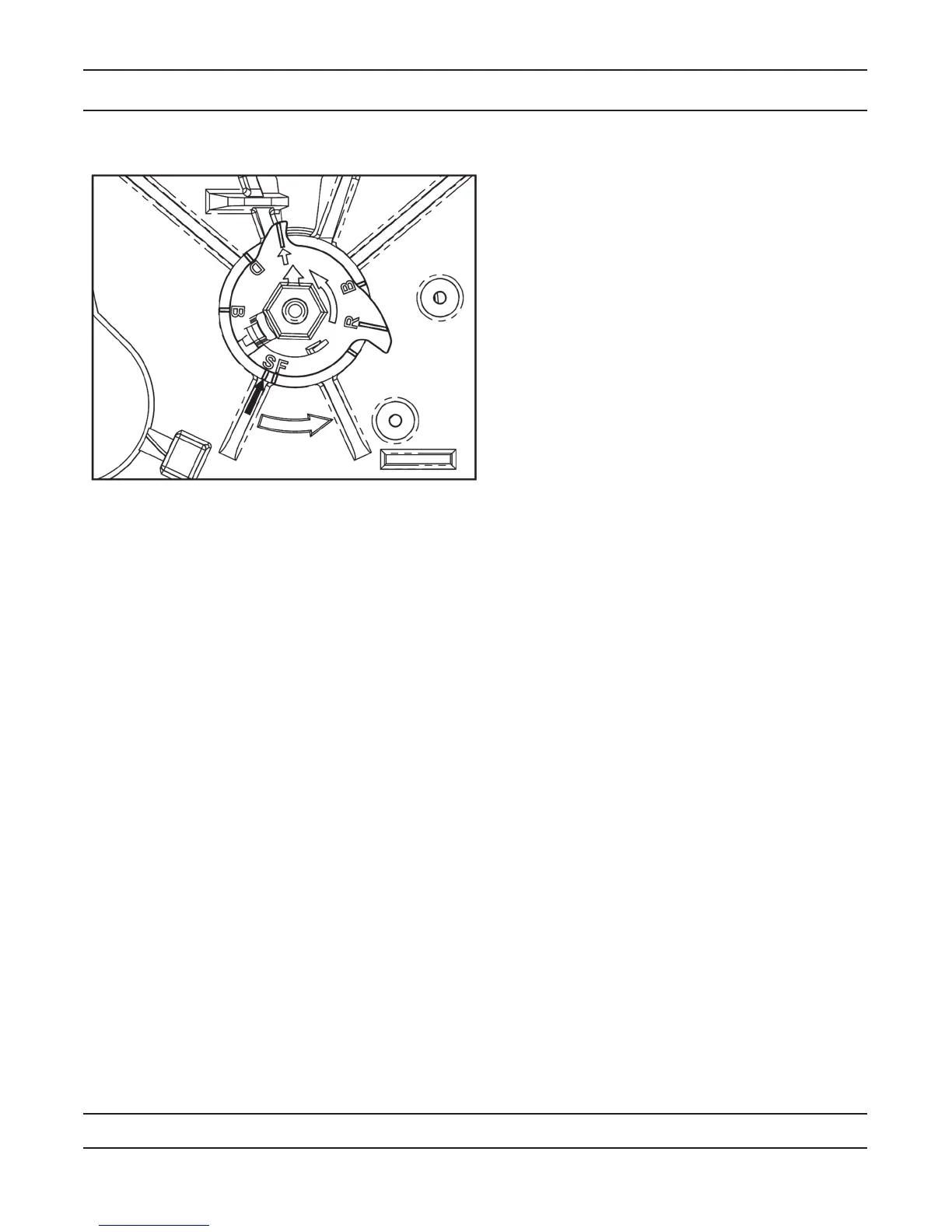

, turn the cycle cam counter-clockwise to the position shown in illustration above.
3.
Slightly pull the two tabs outward and push the gearbox slightly upward to remove.
4.
When returning valve to service after powerhead disassembly
, manually step valve through regeneration
using the extra cycle button until valve is in service.
40988_REV
A
32
34
Table of Contents
Table of Contents
2
Job Specification Sheet
3
Installation Instructions
4
Start-Up Instructions
5
Timer Features
6
Timer Operation
8
Master Programming Mode Chart
10
Master Programming Mode
12
User Programming Mode
19
Diagnostic Programming Mode
21
Powerhead Assembly
24
Valve Assembly
26
Bypass Assembly
28
2310 Safety Brine Valve
29
Troubleshooting
30
Removing Gear Box Assembly
33
Inserting Circuit Board
34
Connecting the Circuit Board
35
Water Conditioner Flow Diagrams
36
Injector Flow Data
39
Meter Flow Data
40
Dimensions
41
