#98264 page 3 of 4 Rev. 11-16-11
4. Crimp a large ring connector to the positive (+) battery end of the power lead and connect it to the battery
terminal. (secondary battery on passenger side)
5. Locate power distribution box (fuse box). Find a circuit that is “hot” when the key is in the “ON” position.
NOTE: DO NOT use the DRL or brake/ taillight fuse! Attach the included fuse tap to the fuse. Attach a
pink female connector to the thin red wire included and attach to the fuse tap. Trim the wire so that it will
reach the Fan Motor Control. Attach pink female connector to the other end of the wire and connect it to
terminal #9 on the Fan Motor Control.
6. Locate the wires going to the A/C clutch. Determine which wire is ground (-) and which wire is the positive
(+) trigger wire. Tap into the positive (+) trigger wire using the supplied thin green wire and the piggy-back
connector (blue). Determine the length needed to reach the Fan Motor Control and trim to length. Attach a
pink female connector and connect this wire to terminal #8. NOTE: terminal #7 on Fan Motor Control will
be left open.
7. Find the 2 thin black wires coming from the temperature sensor that you
installed earlier in the radiator core. Determine the length of wire needed to reach
the Fan Motor Control. IMPORTANT: strip the insulation of the wires back about
1” and fold the bare wire back on itself to double the thickness of the wire before
connecting the pink female connectors (see detail #8). Then attach these wires
to terminals #10 & 11. Both wires need to be connected but it doesn’t matter
which wire goes to each terminal.
8. If optional manual switched (Flex-a-lite #31148) has been purchased, attach it as follows: To override
engine temperature to turn fans off, connect the switch to terminal #5 on the Fan Motor Control to send a
negative (-) signal. To override engine temperature to turn fans on, connect the switch to terminal #6 on the
Fan Motor Control so that a negative (-) signal is sent.
WIRING THE FAN MOTOR CONTROL CONTINUED

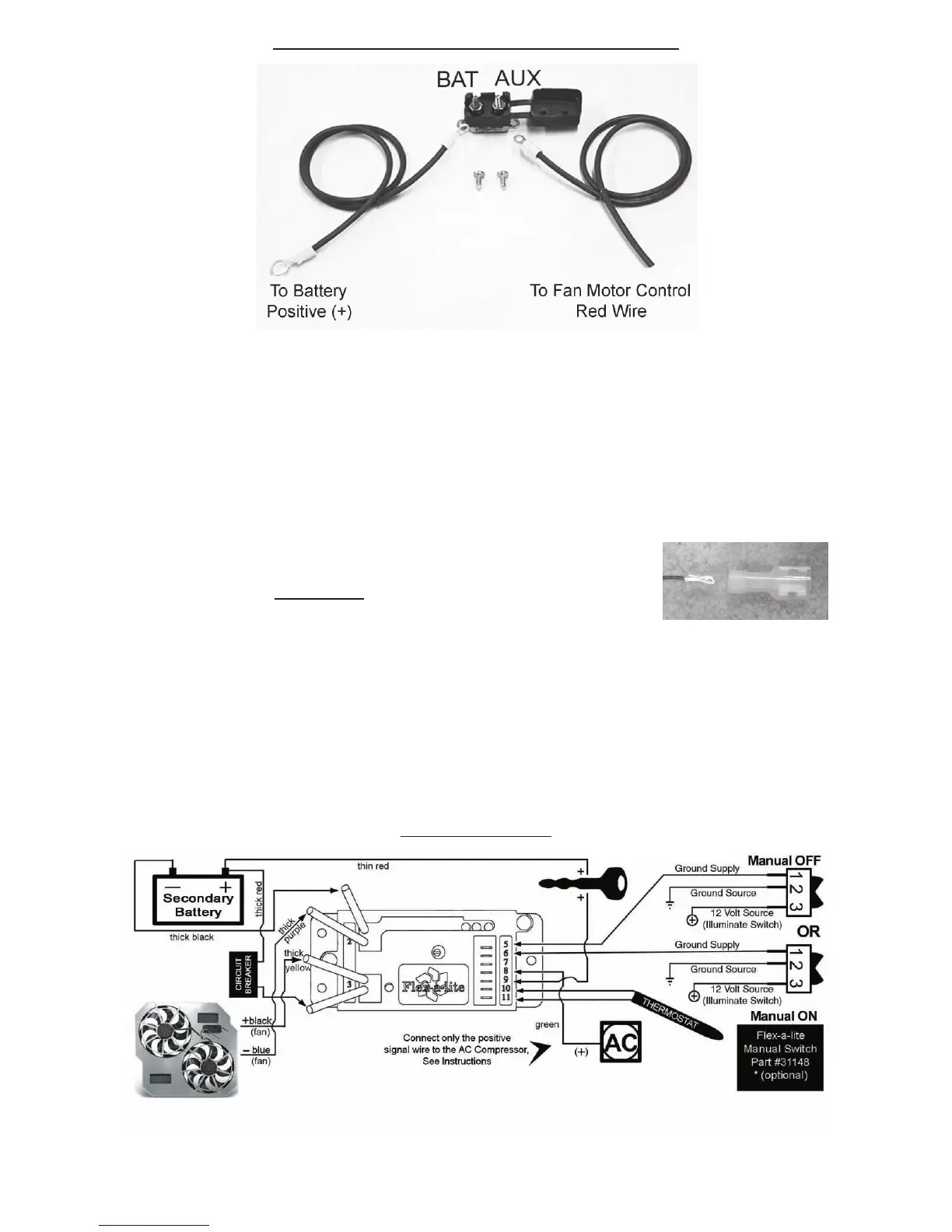

Wiring Diagram
DETAIL #8
