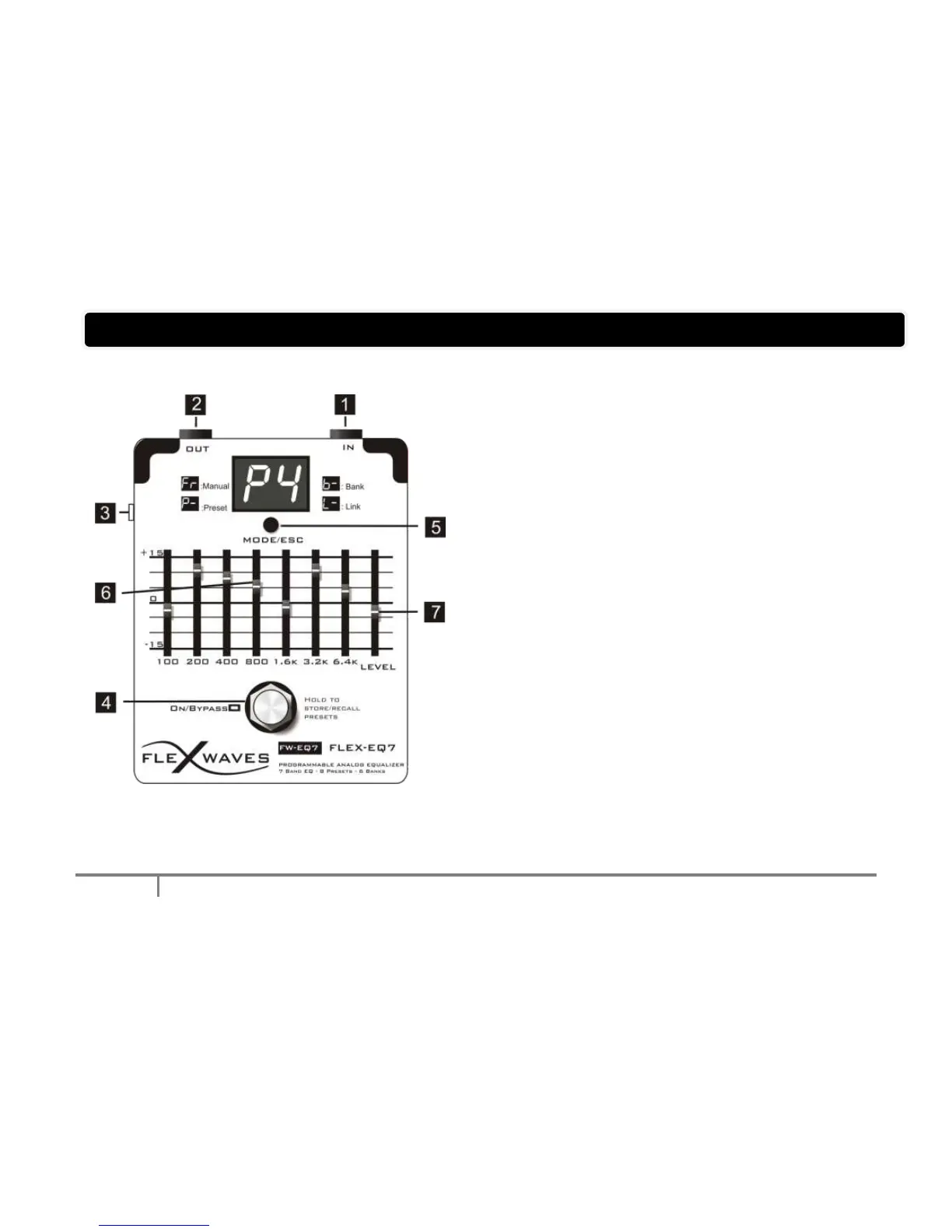

Connections
1- IN
1/4” mono jack connections for signal input.
FLEX-EQ7 require 1/4” stereo jack connections for Link
Mode operations.
2- OUT
1/4” mono jack connections for signal output.
FLEX-EQ7 require 1/4” stereo jack connections for Link
Mode operations.
3- Power
The FLEX-EQ7 require 9V DC 200 mA. By using the power
supply, you can play without being concerned about how
much battery power you have left.
Use only the specified AC adaptor
If there is a battery in the unit while an AC adaptor is
being used, the FW-EQ7 will switch over to battery-
powered operation should the line voltage be
interrupted.
To change the battery you need to unscrew the
four screws placed on the bottom panel
