Flex CS 62 18.0-EC Original Operating Instructions

CS 62 18.0-EC
19

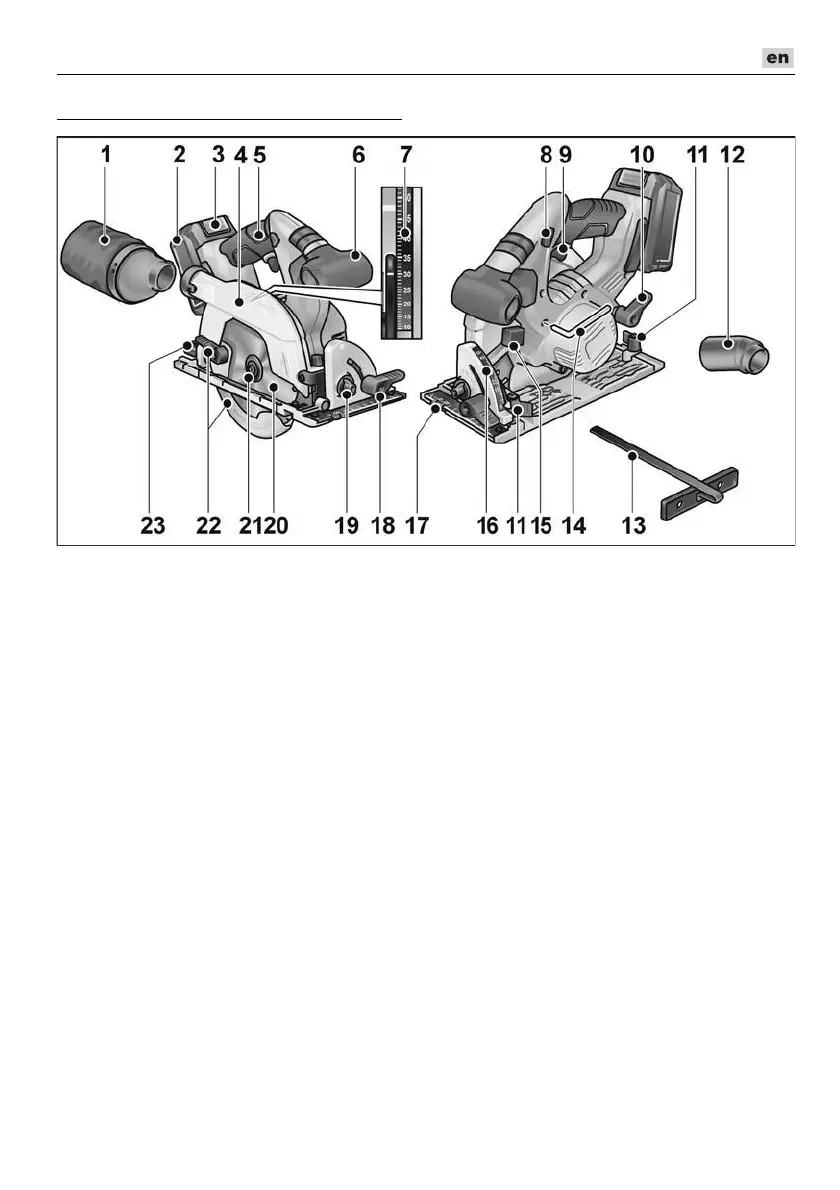

Overview
1 Filter
2 Battery
3 Rechargeable battery release
4 Retracting guard
5 Handle
6 Auxiliary handle
7 Cutting depth scale
8 Activation lock for ON/OFF switch
9 ON/OFF switch
10 Clamping lever for cutting depth
preselection
11 Clamping bolt for parallel stop
12 Connection
13 Parallel stop
14 Hexagon-socket key
15 Spindle locking button
16 Mitre angle scale
17 Base plate
18 Clamping lever for mitre angle
19 Angle preselection
20 Circular saw blade
21 Clamping bolt with clamping flange
22 Adjusting lever for retracting guard
23 Clamping bolt for mitre angle
preselection

Flex CS 62 18.0-EC Specifications

General

Voltage	18 V
Blade Diameter	165 mm
Cutting Depth at 90°	57 mm
Saw Blade Bore	20 mm
Bevel Range	0° to 50°
