Instruction manual L 15-10 150 / L 21-8 180 / L 26-6 230
10

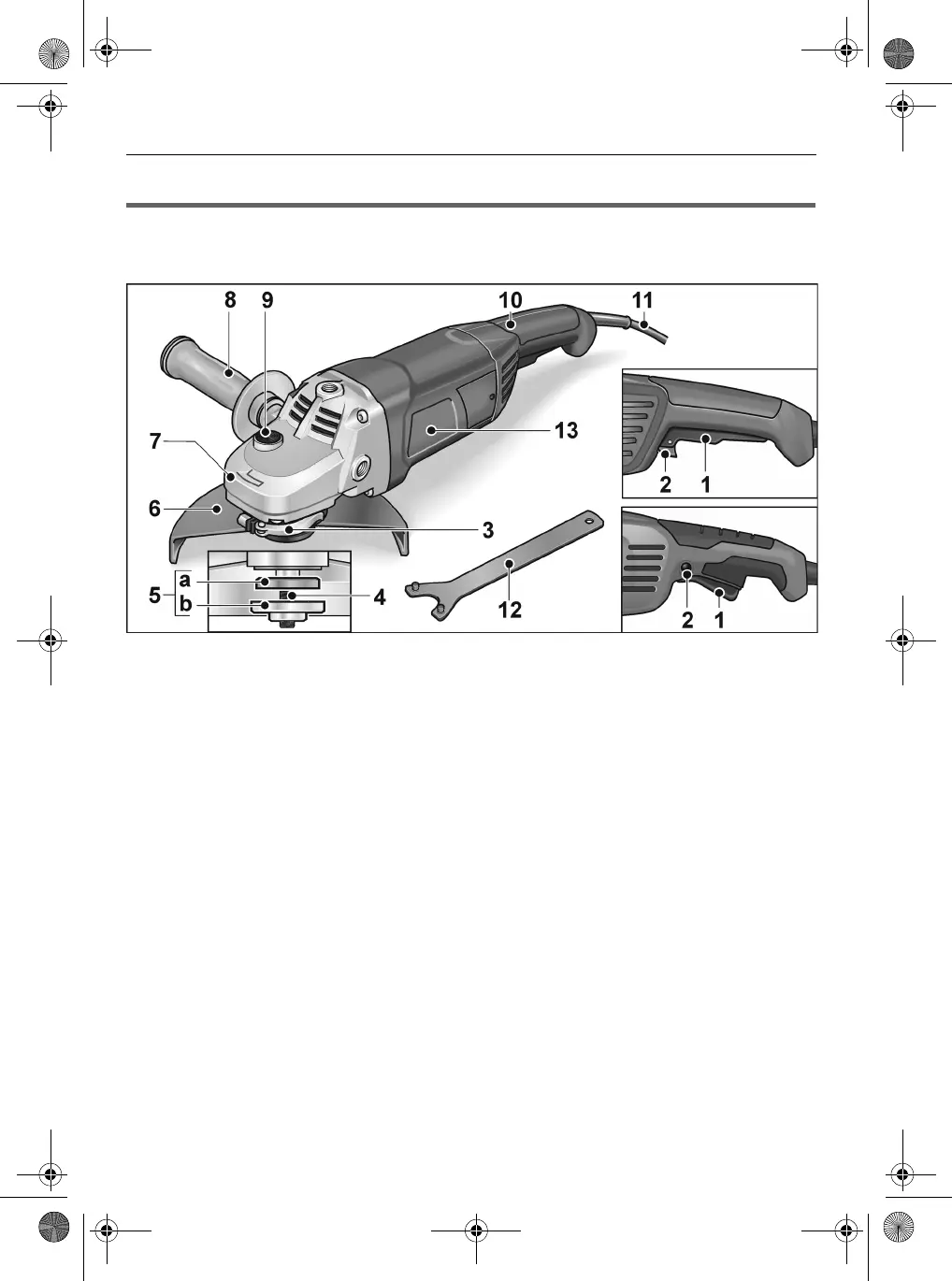

Overview
Different electric power tools are described in these instructions.
The illustrated electric power tool may differ in detail from the one that you purchased.
1Switch
Switches the power tool on and off.
2 Starting lockout/Locking button
Prevents the power tool from starting
up unintentionally and locks the switch
during continuous operation.
3 Quick-clamping lever
4 Spindle
5 Threaded flange
a Clamping nut
b Clamping flange
6 Guard
7 Gear head
With air outlet and direction-of-rotation
arrow.
8 Auxiliary handle
Side handle can be fitted on the left,
the top or the right.
9 Spindle lock
Secures the spindle when the tool
is changed.
10 Switch handle
11 4.0 m power cord with plug
12 Pin wrench
13 Rating plate (not illustrated)
