FlexArm A-32 - Installation

10/29/2020 REV. 003 5
INSTALLATION

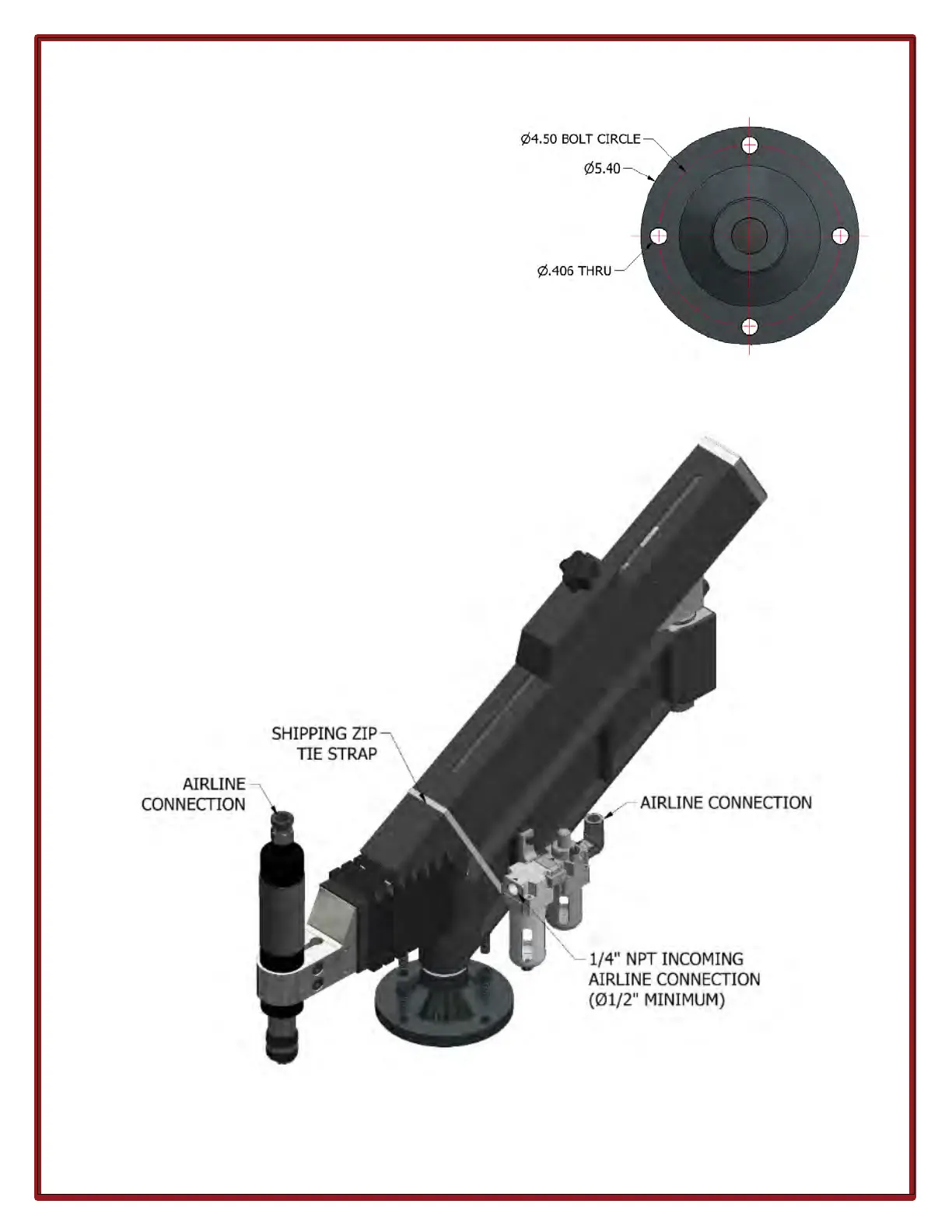

1. Drill four bolt holes on a flat, smooth table or
work bench in the pattern shown in Figure 1.
2. Make sure the table the arm is being installed on
is secure and will not tip over if the arm extended
off the side of the table.
3. Fasten the FlexArm base mount to the table and secure it with 3/8” bolts as shown in Figure 2.
Figure 1
Figure 2
