Flexicon PD22I - PD22 P Interface

INSTRUCTION HANDBOOK
PD22I / PD22P
PD22IP IH EN 74-125-102 v1.04
Page 18 of 20

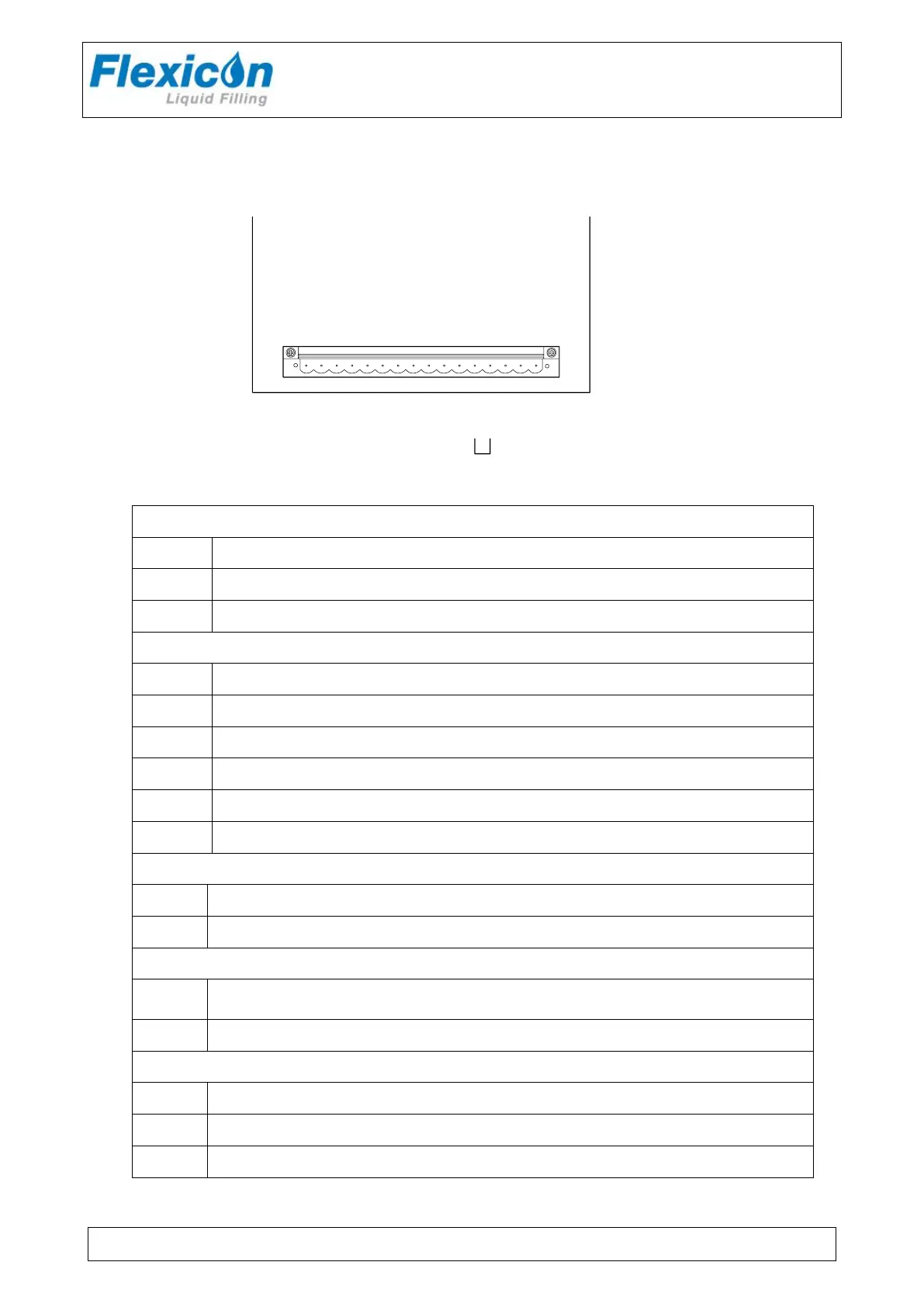

10.2 PD22 P Interface
Fig. 10.2
(1) Flexnet 1-3:
pin 1.
Flexnet /data (pin 1 on flexnet DIN connector)
pin 2.
Flexnet gnd (pin 3 on flexnet DIN connector)
pin 3.
Flexnet data. (pin 4 on flexnet DIN connector)
(2) External 4-9:
pin 4.
Start signal. +5 to +50 Vdc. Positive edge triggered.
pin 5.
+24 Vdc output
pin 6.
Ground
pin 7.
Status output signal. Open collector. Grounded when drive is active
pin 8.
Status output signal. Open collector. Grounded when drive is not active
pin 9.
Disable signal. +5 to +50 Vdc. Dispensing disabled when active.
(3) Prime 10-11:
pin 10.
Prime (ground)
pin 11.
/Prime (drive priming when connected to ground)
(4) Safety 12-13:
pin 12.
Safety 1, short circuit, prepared for external safety device or safety input from
pin 13.
pin 13.
Safety 2, (24 Vdc output)
(5) Main power 14-16:
pin 14.
Main supply. Neutral
pin 15.
Main supply. Earth
pin 16.
Main supply. Line
Tab. 10.2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Flexnet
1 - 3
External 2
7 - 9
Prime
10 - 11
Saf ety
12 - 13
Mains Power
14 - 16
External 1
4 - 6
Short Circuit
