Flexispot KT1 - Option B: Add Corner Connectors to Desk Bottom (with Beam); Option C: Add Corner Connectors to Desk Bottom (with Beam)

03 04

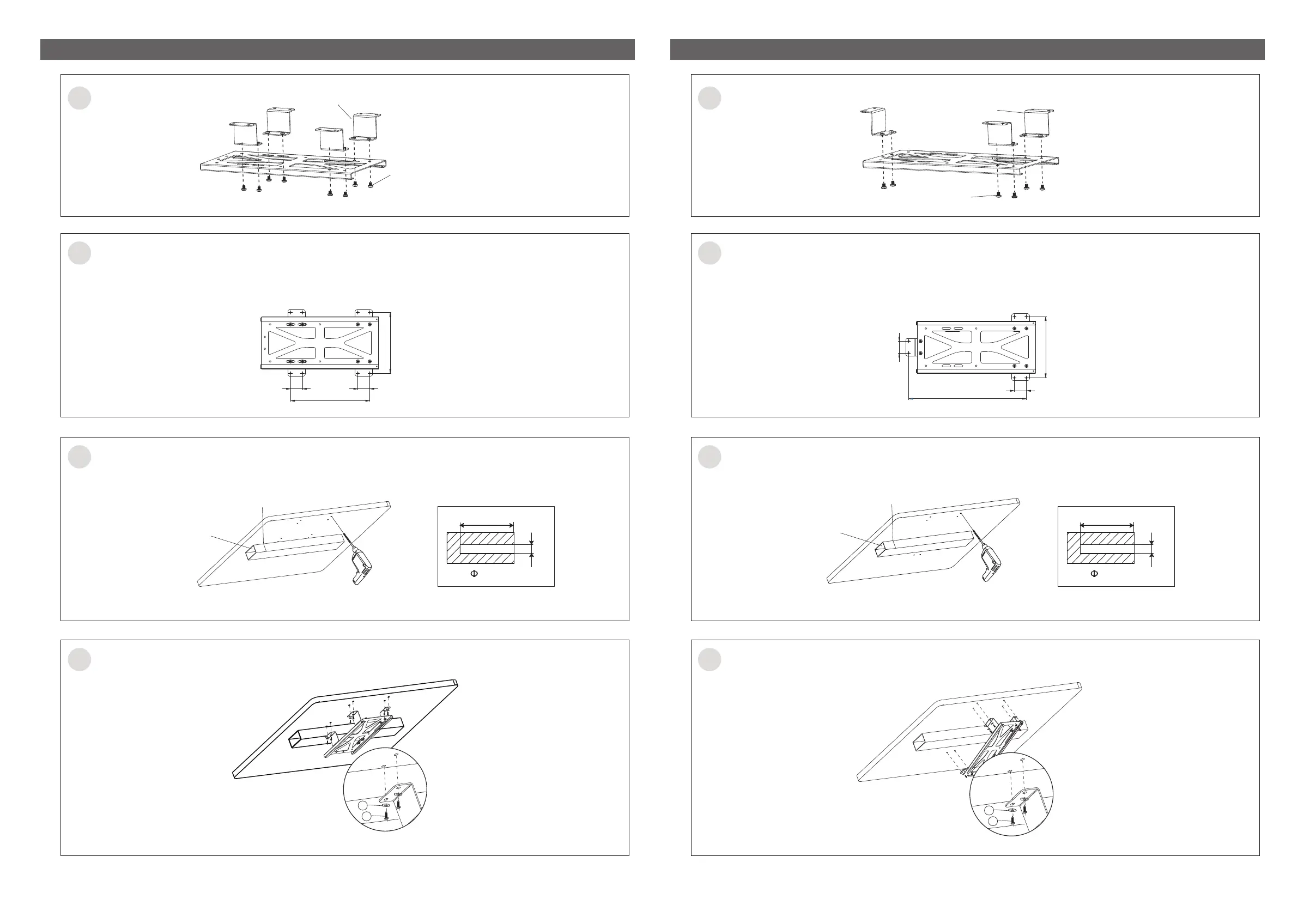

STEP 1 - Option B: Add corner connectors to the desk bottom which has beam
1
2
A
B
Corner Connector
M5x6 screws
Attention:
Install the panel where the keyboard tray should be installed and reserve the according
place.
Please mark the positions for drilling.
3
Drill on the marked positions.
4
Install the panel under the table board with screws A and washers B, and then tighten the
screws.
Beam Height ≤ 2.36'' (60 mm)
Beam
STEP 1 - Option C: Add corner connectors to the desk bottom which has beam
1
2
Attention:
Install the panel where the keyboard tray should be installed and reserve the according
place.
Please mark the positions for drilling.
3
Drill on the marked positions.
4
Install the panel under the table board with screws A and washers B, and then tighten the
screws.
Beam
M5x6 screws
Corner Connector
A
B
0.079'' (2 mm)
0.79'' (20 mm)
0.079'' (2 mm)
0.79'' (20 mm)
6.85'' (174 mm)
13.14'' (334 mm)
1.34'' (34 mm)
1.34'' (34 mm)
6.85'' (174 mm)
1.34'' (34 mm)1.34'' (34 mm)
8.92'' ±0.39'' (226.5mm ±10 mm)
Beam Height ≤ 2.36'' (60 mm)
