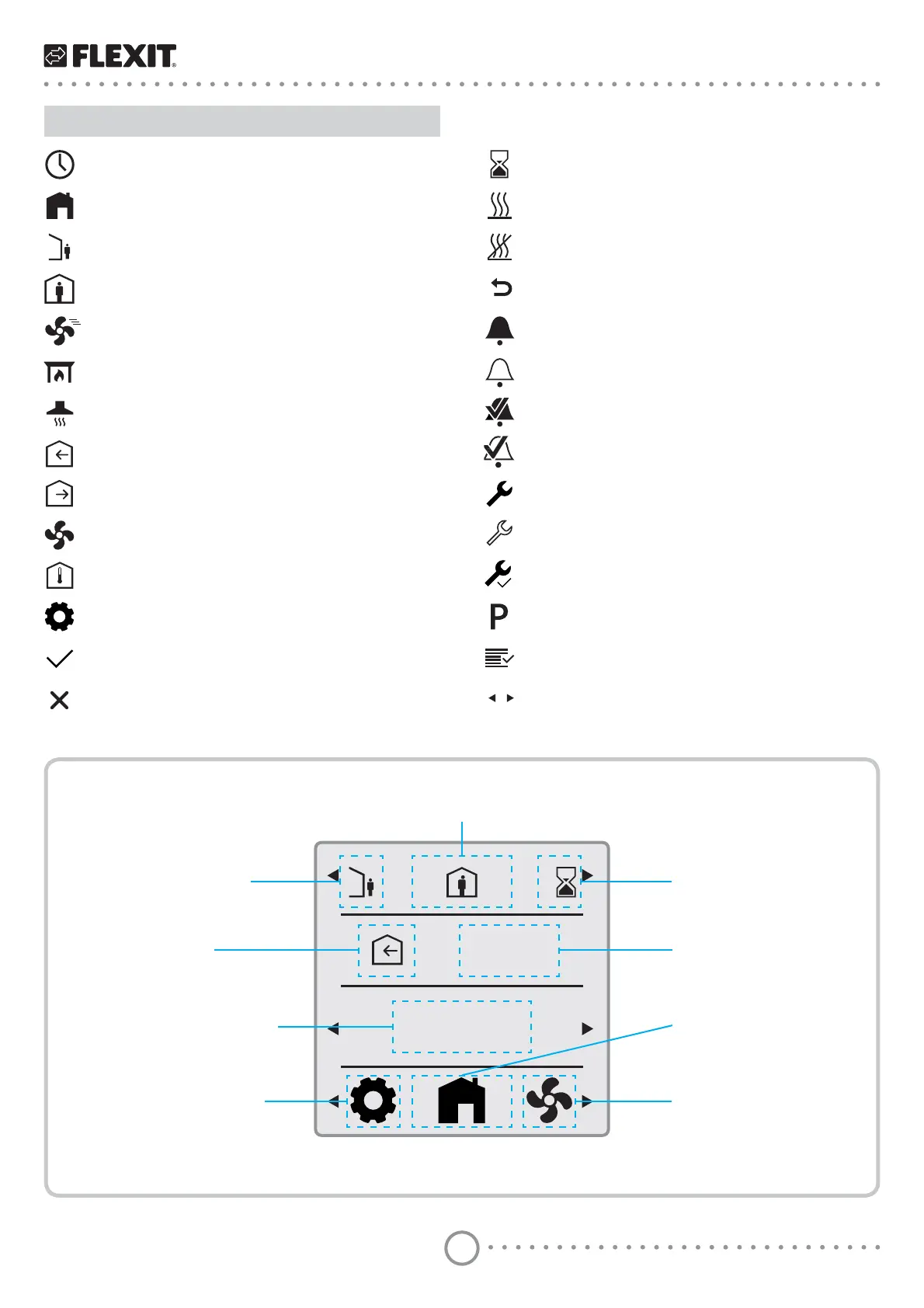

3. Icon description
AUTO MODE
HOME PAGE
AWAY MODE
HOME MODE
HIGH MODE
FIRE PLACE MODE
COOKER HOOD MODE
SUPPLY AIR
EXHAUST AIR
FAN SPEED SETTINGS
ROOM TEMPERATURE
GENERAL SETTINGS
CONFIRM
CANCEL
TIMER MODE
ELECTRICAL HEATER ENABLED
ELECTRICAL HEATER DISABLED
GO BACK
ALARM
ALARM – NOT ACKNOWLEDGED
ALARM – ACKNOWLEDGED
NORMAL - ACKNOWLEDGED
SERVICE REQUEST
SERVICE – NOT ACKNOWLEDGED
SERVICE – ACKNOWLEDEGED
READ PARAMETER MODE
CONFIRM ALARM
INDICATES AN OPERABLE ELEMENT
HOME
20°C
selection icons
info icons
mode descriptions
page description
Only as examplary picture. Not a spec reference.
selection icons
set point
page description
selection icons
status icons max 3 icons
at one time
